Technology
- 4" bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
- C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.

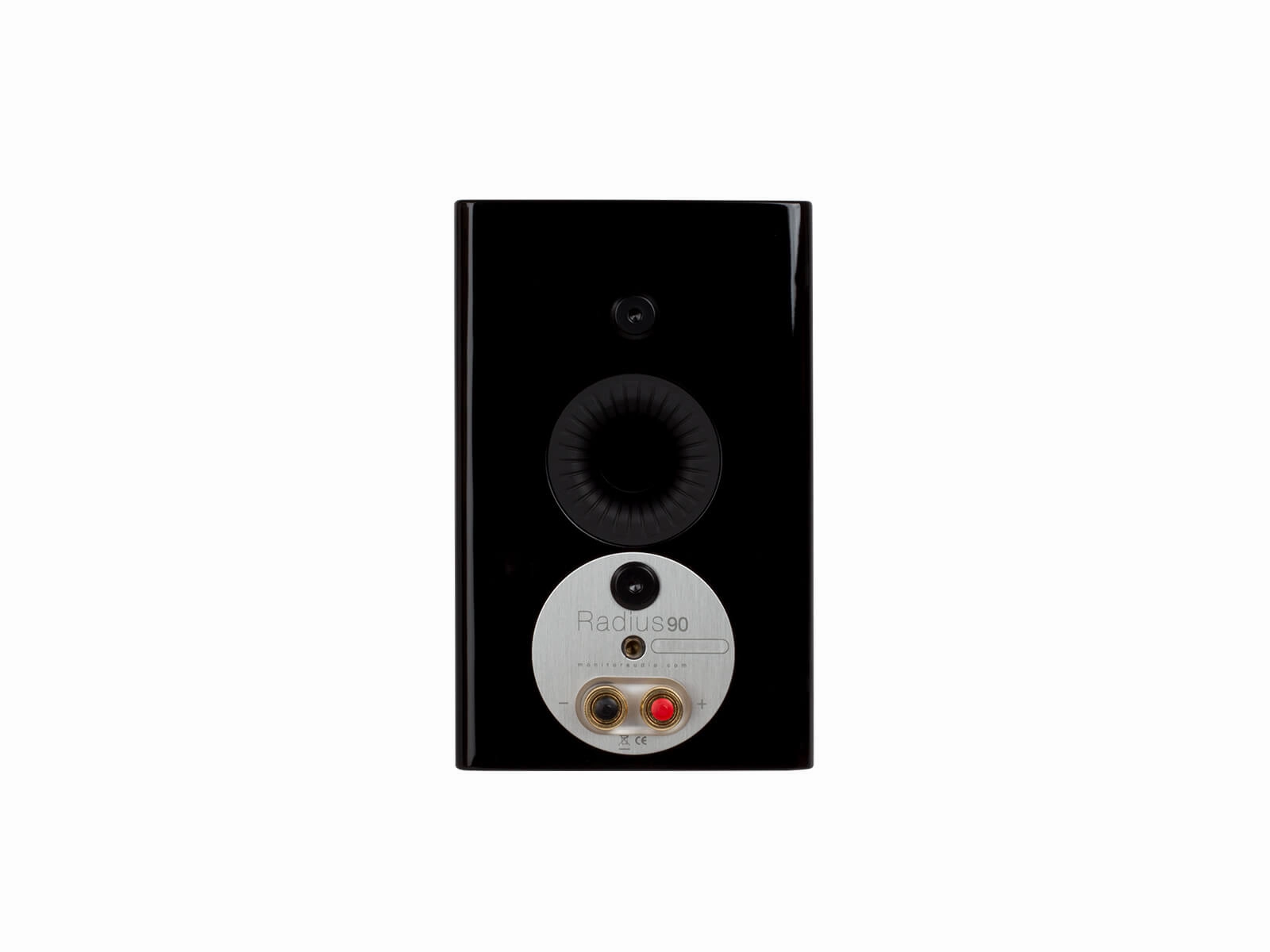

- port design - Straight from Platinums design blueprint, the HiVe reflex port makes its Radius debut. Its shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
- Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
- Single point ? x 20TPI wall fixing. Use the optional Monitor Audio speaker or any standard wall bracket
- Optional with internal (pre-wired) cable management system.
SPECIFICATIONS
Frequency Response
80 Hz 35 kHz
Sensitivity (1W@1M)
83 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
75 W
System Power Handling (RMS)
100 W
Recommended Amplifier Requirements
30 100 W
Maximum SPL
102 dBa
Bass Alignment
Bass reflex - Rear ported
Drive Unit Complement
1 x 4" (100 mm) cone bass/mid driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions (H x W x D)
198 x 125 x 140 mm (713/16 x 415/16 x 51/2")
Cabinet Dimensions (Including Grille and Terminals (H x W x D))
198 x 125 x 164 mm (713/16 x 415/16 x 67/16")
Cabinet Dimensions (Including Grille and Bracket (H x W x D))
198 x 125 x 203 mm (713/16 x 415/16 x 8")
Pre-Construction Bracket
Optional - Monitor Audio Speaker Mount (MASM)
Weight
2.1 kg (4 lb 10 oz)
Sold As
Pair
