LAB POINTS

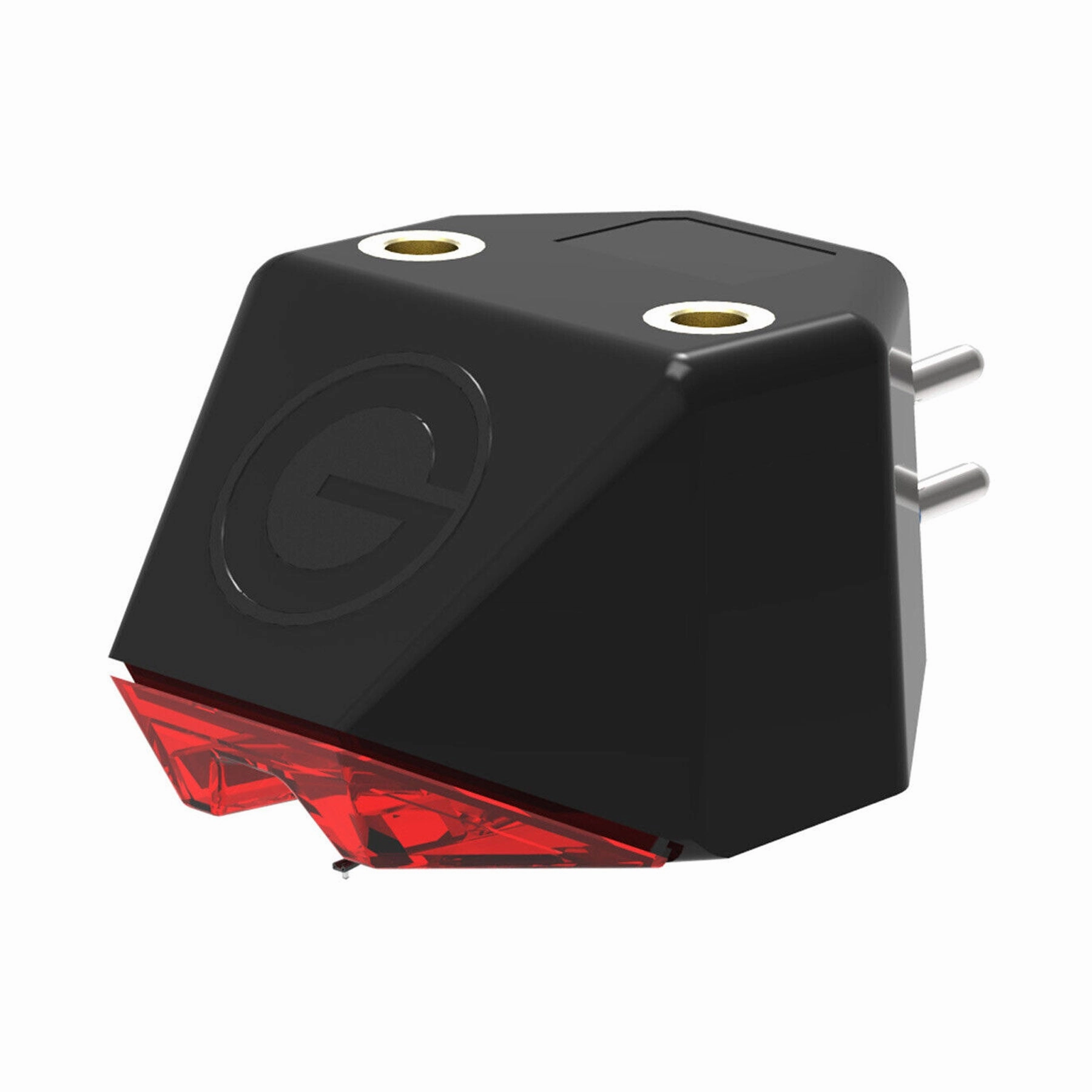

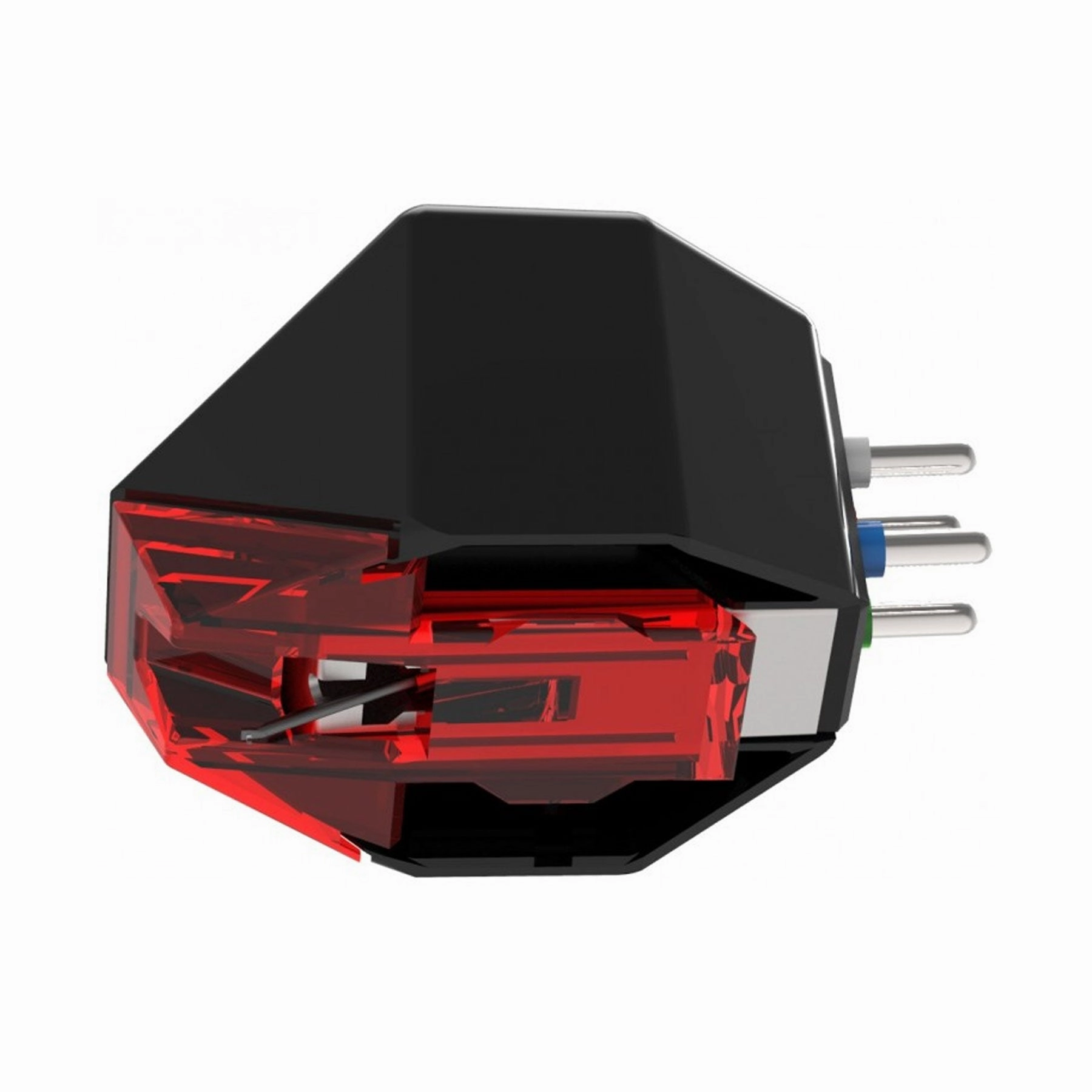

- handmade cartridge from British manufacturer,entry level model inthe E-series range
- dual moving magnet cartridge (MM) w/spherical stylus carbon cantilever
- micro-adjusted during production to ensureaccurate tracking with almost any turntable setup
- 'dual magnet generator assemblytracks w/ better stereo separation moredetailed musical sound stage
- handmade in the UK
"The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables. The E1 cartridge, the first in the range, utilises a carbon-fibre reinforced cantilever and bonded, spherical (0.6 mil) stylus with a round shank. Carbon is an effective alternative to more premium aluminium or boron materials, producing comparable results in most entry level hi-fi applications." - Goldring
TECH SPECS
- Colour:Red
- Cantilever:Carbon
- Stylus profile: Spherical
- Stylus radius: 0.6 mil
- Frequency range: 20 Hz - 20 kHz
- Channel balance: 1.5 dB at 1 kHz
- Channel separation: >20 dB at 1 kHz
- Sensitivity: 3.5 mV (1 kHz @ 5 cm/sec)
- Static compliance: 20 mm/N
- Vertical tracking angle: 20
- Load resistance: 47 k
- Load capacitance: 100 - 200 pF
- Internal inductance: 400 mH
- Internal resistance: 410
- Cartridge mass: 6.9 g
- Fixing centres: 12.7 mm (0.5 in)
- Tracking force: 1.5 g - 2.5 g (2.0 g recommended)
