CP-IW460X
The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audios latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
Technology

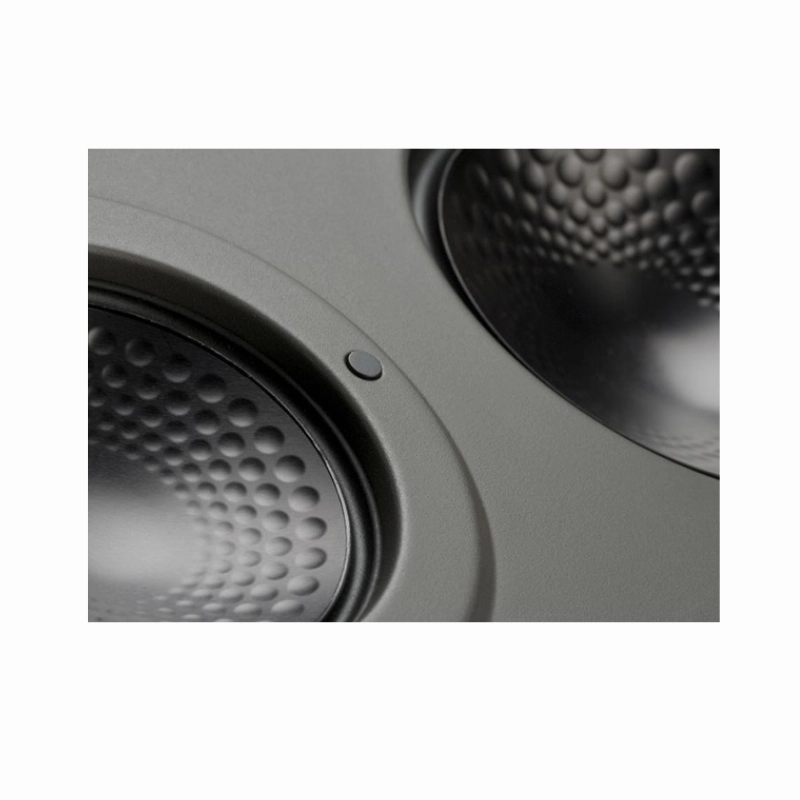

Dual 6.5 C-CAM bass drivers featuring RST dimpled cone technology
Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
Dual 4 C-CAM mid-range drivers featuring RST dimpled cone and underhung voice coil technologies

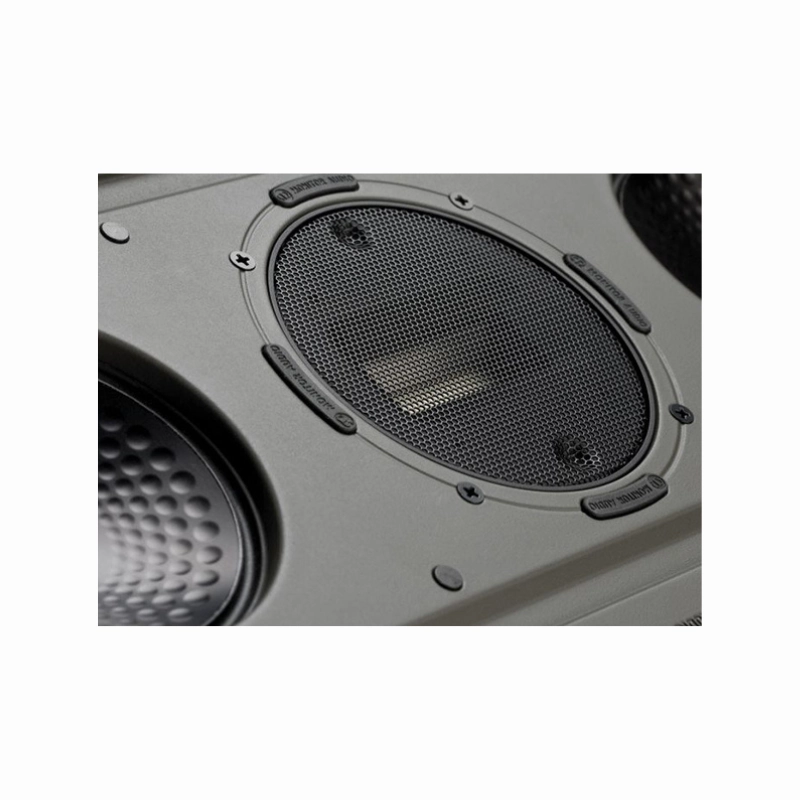

C-CAM Ribbon High Frequency transducer

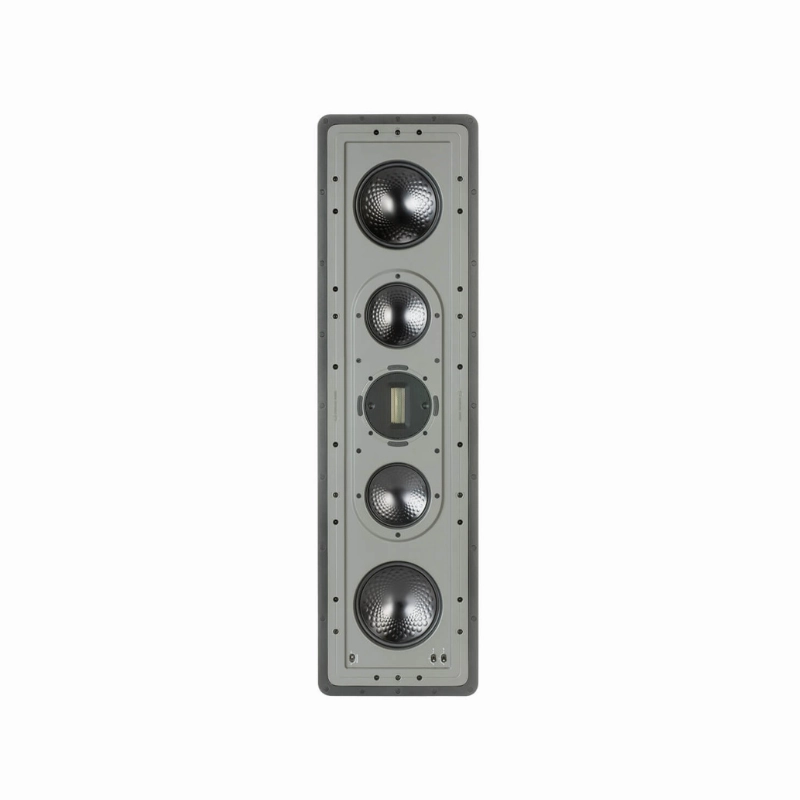

Innovative HF rotating system to facilitate portrait or landscape orientation

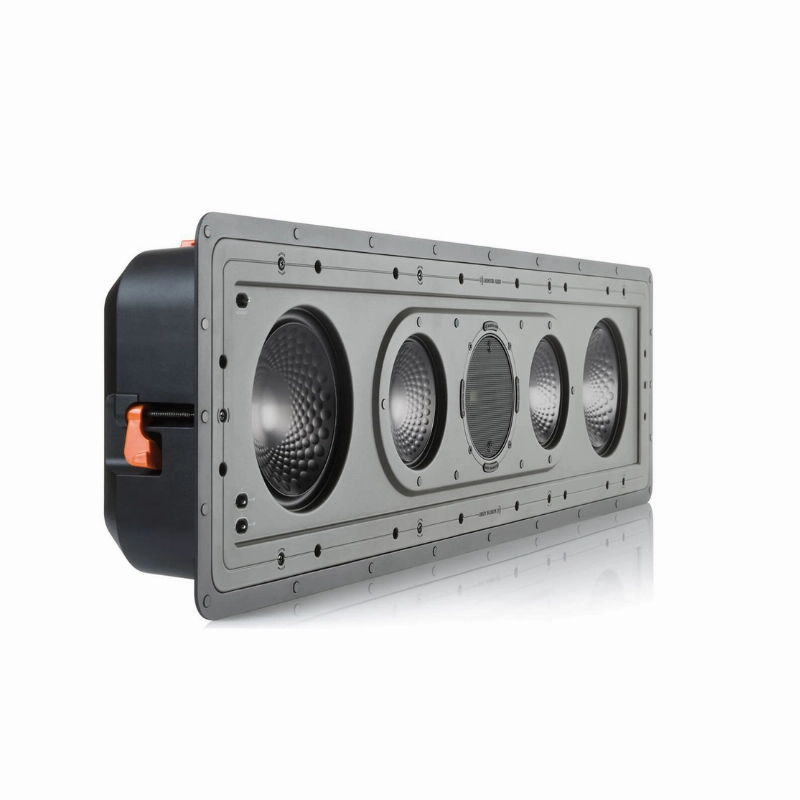

Integrated back-box to provide rear sound isolation resulting in controlled performance
Cast Polymer enclosure designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling

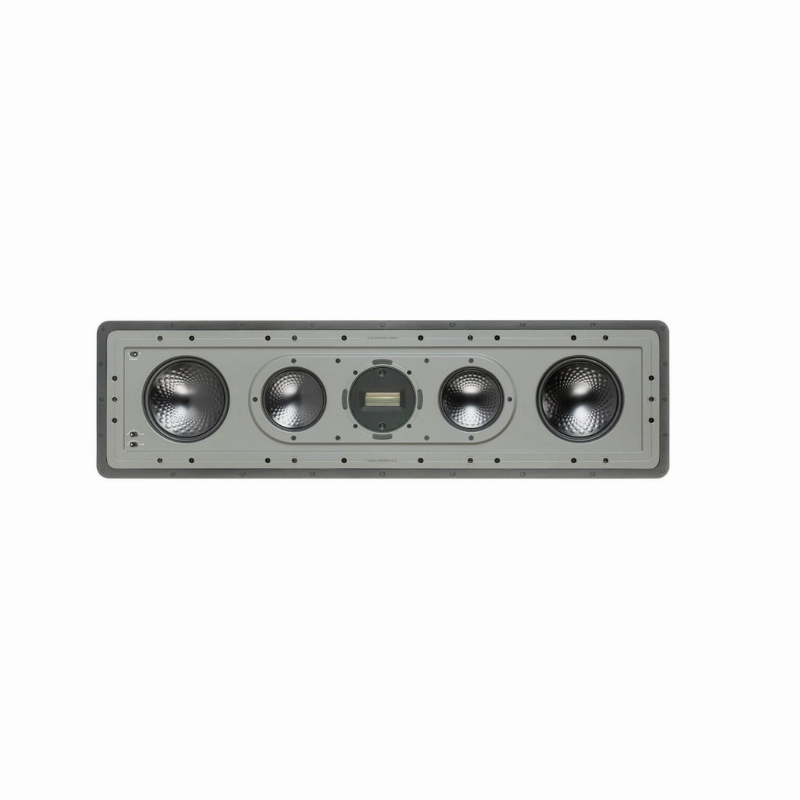

Three-way design in a symmetrical B-M-T-M-B configuration
High-end crossover design featuring low loss inductors and audiophile grade Polypropylene capacitors

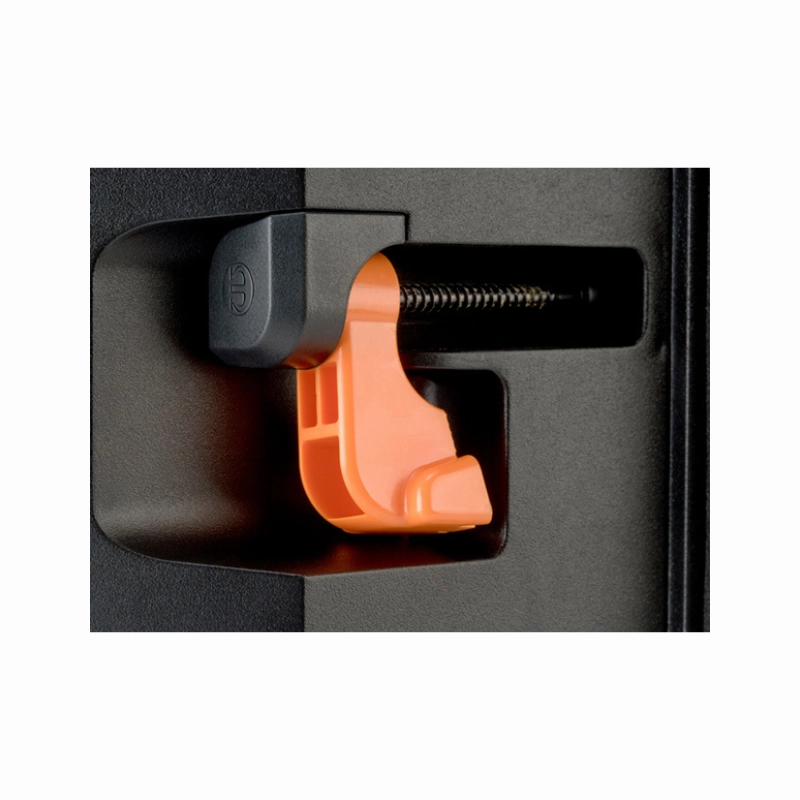

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Specifications
Frequency Response: 50 Hz 60 kHz (-6 dB typical in room response)
Nominal Impedance: 6 ohms
Sensitivity (1W@1M): 89 dB
Maximum SPL: 113.8 dBA
Power Handling (RMS): 150 W
Recommended Amplifier Requirements: 60 150 W
Crossover Frequency:
- L.F: 500 Hz @ 12 dB/Octave
- M.F: 500 Hz @ 12 dB/Octave, 3 kHz @ 18 dB/Octave
- H.F: 3 kHz @ 18 dB/Octave
Drive Unit Complement:
- 2 x 6.5 C-CAM Bass drivers with RST cone technology
- 2 x 4 C-CAM Mid-range drivers with RST cone technology
- 1 x C-CAM H.F ribbon transducer
Adjustment Controls:
- Boundary Compensation (On/Off)
- MF Level: 1/0/-1 (dB)
- HF Level: 1/0/-1 (dB)
Overall Dimensions (H x W x D): 907 x 257 mm (35 3/4 x 10 1/8")
Overall Depth (Including Grille): 102 mm (4")
Cut-Out Dimensions: 880 x 230 mm (34 21/32 x 9")
Mounting Depth: 96 mm (3 3/4")
Fixing Type: 10 x Tri-Grip Dog leg fixings
Construction Material: Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Weight: 12.98 kg (28 lb 6 oz)
Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)
Sold As: Single Unit
