LAB POINTS

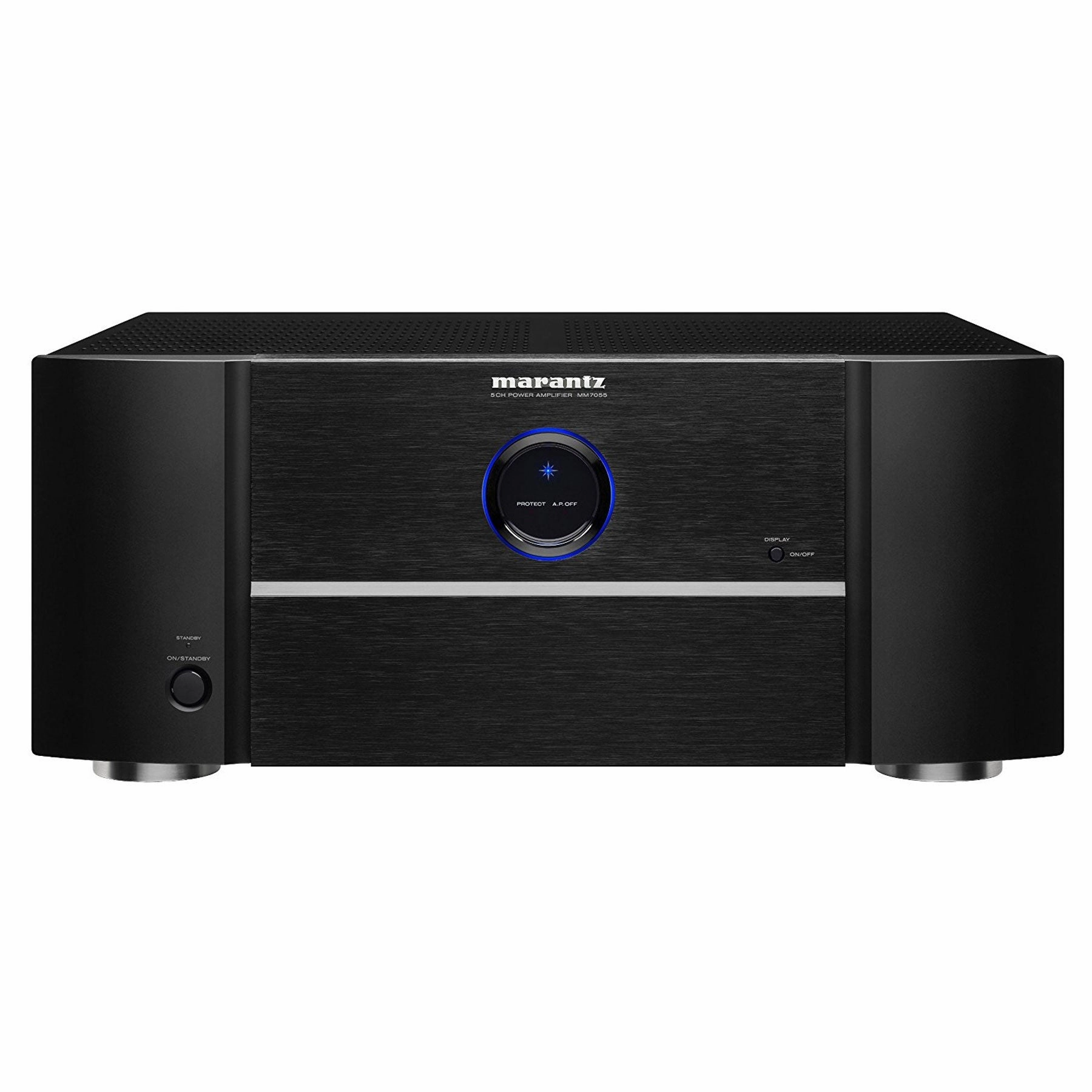

- 5 channel power amplifier delivering 140W power from each of its5 channels
- ideal for a 5.1 home theater system
- massive power supply includes multiple-secondary EI-core transformer over 65,000 F of custom-designed energy storage capacity
- output stages mounted on extruded aluminum 'thermal tunnel' for efficient heat dissipation

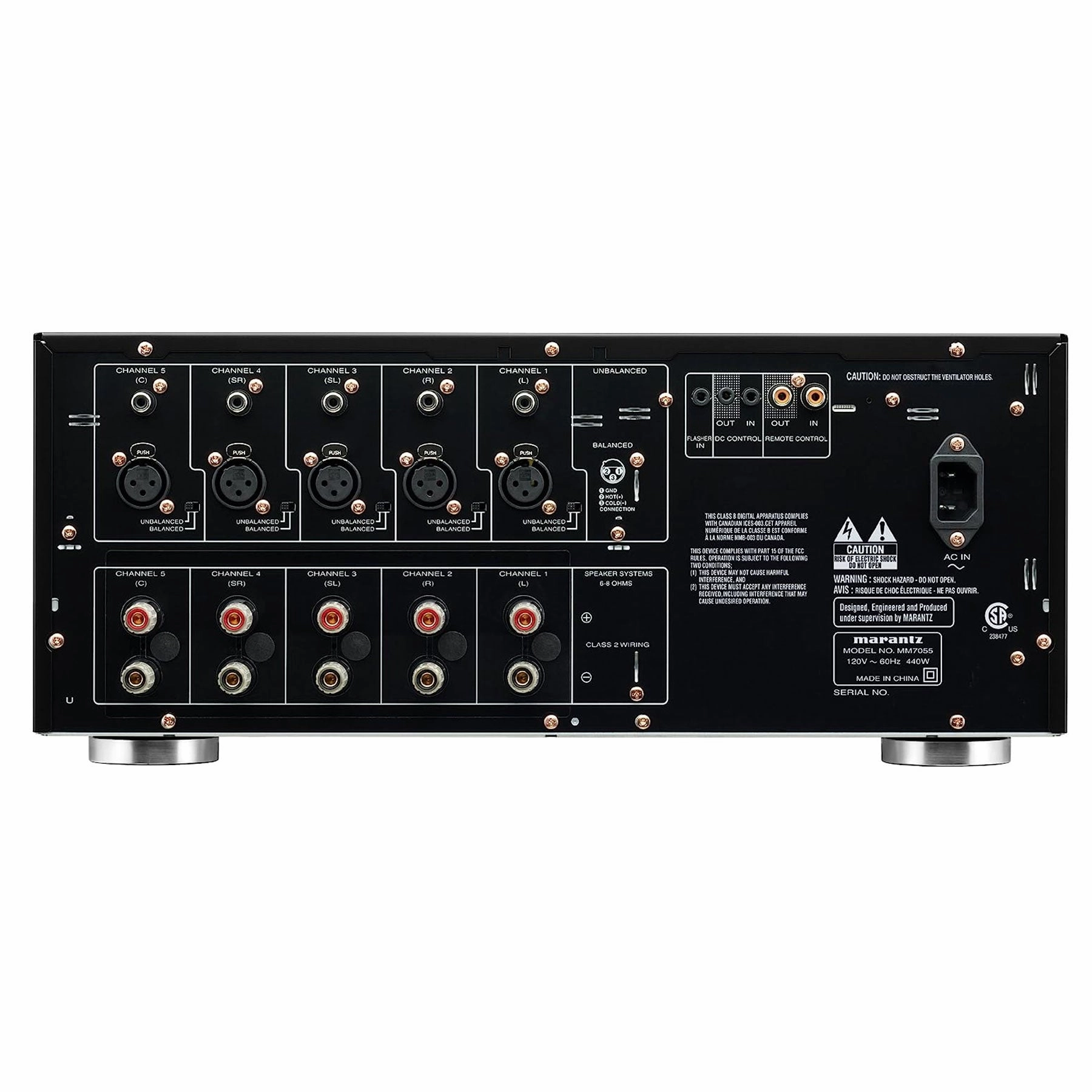

- 5x balanced XLR inputs 5x singled-ended RCA inputs, choose either input type for each channel
- audiophile grade, gold-plated four-way binding post speaker terminals
TECH SPECS
- power output: 140W (20Hz-20kHz, 0.08%)
- input:5chbalanced &unbalanced (exclusive use by a selector switch.)
- output: 5x binding post speaker terminal
- frequency response: 8Hz-100kHz ( /- 3dB)
- signal to noise ratio: 105dB
- dimensions (without antenna): 17.19x15.12 x 7.19" / 437 x384 x183 mm
- weight:34.6 lb /15.7 kg
