- Forward-firing long-throw 12" woofer
- Acoustically optimized cabinet
- Two internal Power Ports
- Advanced DSP
- Time-Smart Phase Control
Impactful bass for expansive soundscapes
Enhances the largest home-theater and music systemsfrom stereo to full Atmoswith deep, immersive bass youll feel in your bones.
Seamless sound
Sophisticated settings like Time-Smart Phase Control make system blending effortless, for smooth, even sound.
Fits anywhere
With a narrow cabinet and front-firing orientation, the ES12 sounds great anywhereeven against walls and on shelves.
Powerful Bass
High-powered amplifier
Provides power and control to deliver impactful bass that fills the largest rooms, offering definition, dynamics, and clarity at any volume.
Deep, Defined Lows

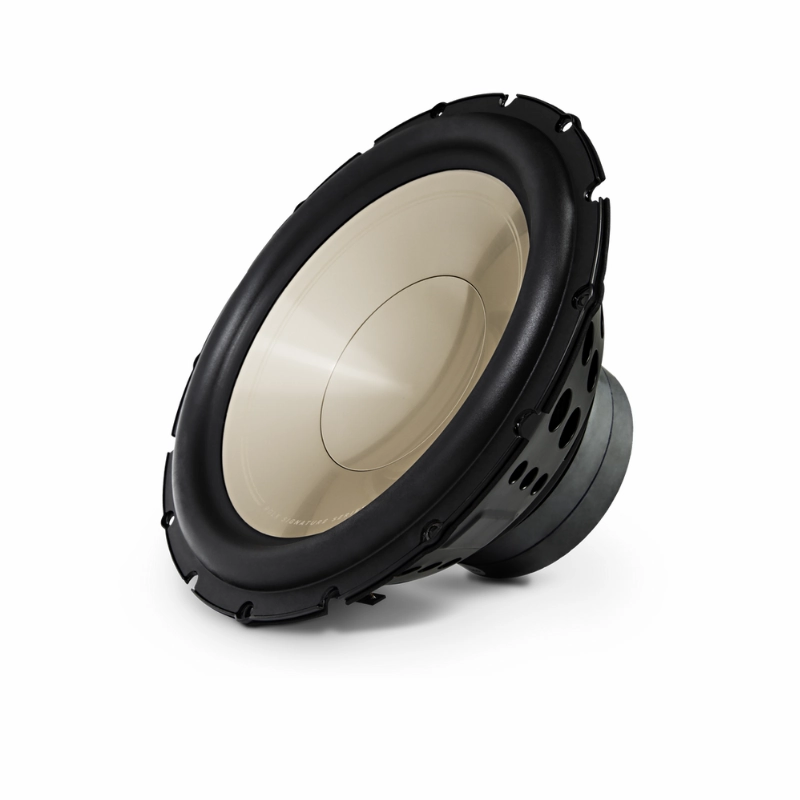

Forward-firing long-throw woofer
A front-facing, high-excursion 12 woofer produces deep, defined lows down to 18 Hz. Its the difference between bass you hear and bass you feel.
Clean and Effortless Sound
Acoustically optimized cabinet
A rigidly built, ported cabinet is reinforced with FEA-optimized internal bracing that minimizes resonances and coloration, ensuring clean, effortless reproduction of low-frequency detail.
Specifications
General Features
- Woofer: 12" mineral-filled polypropylene cone
- Power Port Technology: Dual Power Port
- Amplifier Class: Class D
Audio Performance
- Continuous Amplifier Power: 300W
- Frequency Response (-3dB): 22 Hz 250 Hz
- Frequency Response (-10dB): 18 Hz 350 Hz
- Lowpass Filter Adjustment Range: 50 160 Hz
- Phase Adjustment Range: -135 to 180 (in 45 increments)

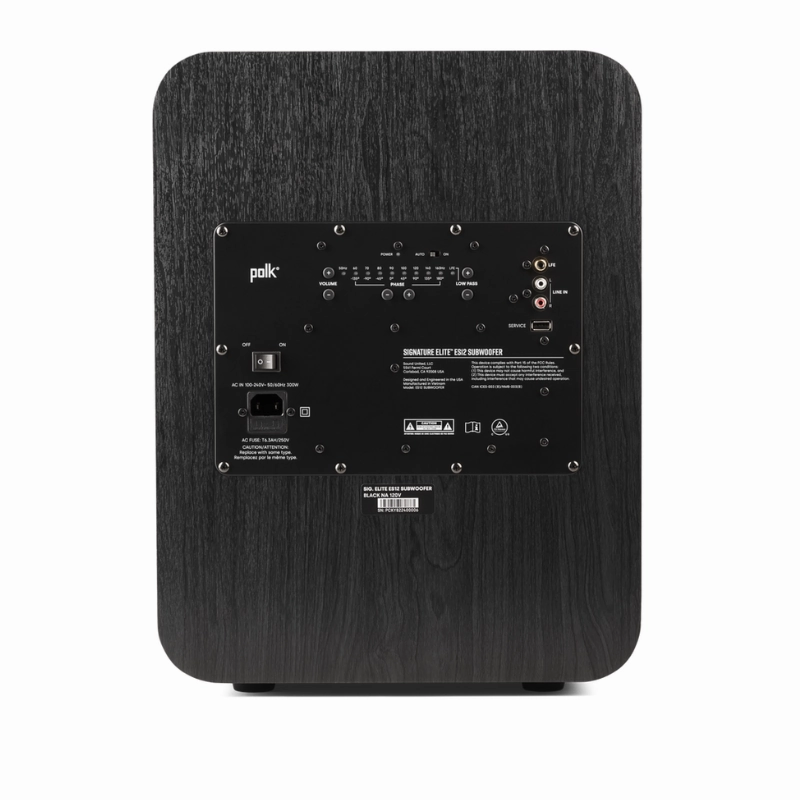

Inputs and Connectivity
- Audio Inputs:
- LFE (RCA)
- Stereo Line Level (2 RCA)
Physical Specifications
- Dimensions (H W D):
- Inches: 19.0 14.3 19.0
- Millimeters: 483 362 483
- Weight: 47.6 lbs / 21.6 kg
- Color: Black
