DEMO UNIT

Atom, Stacked

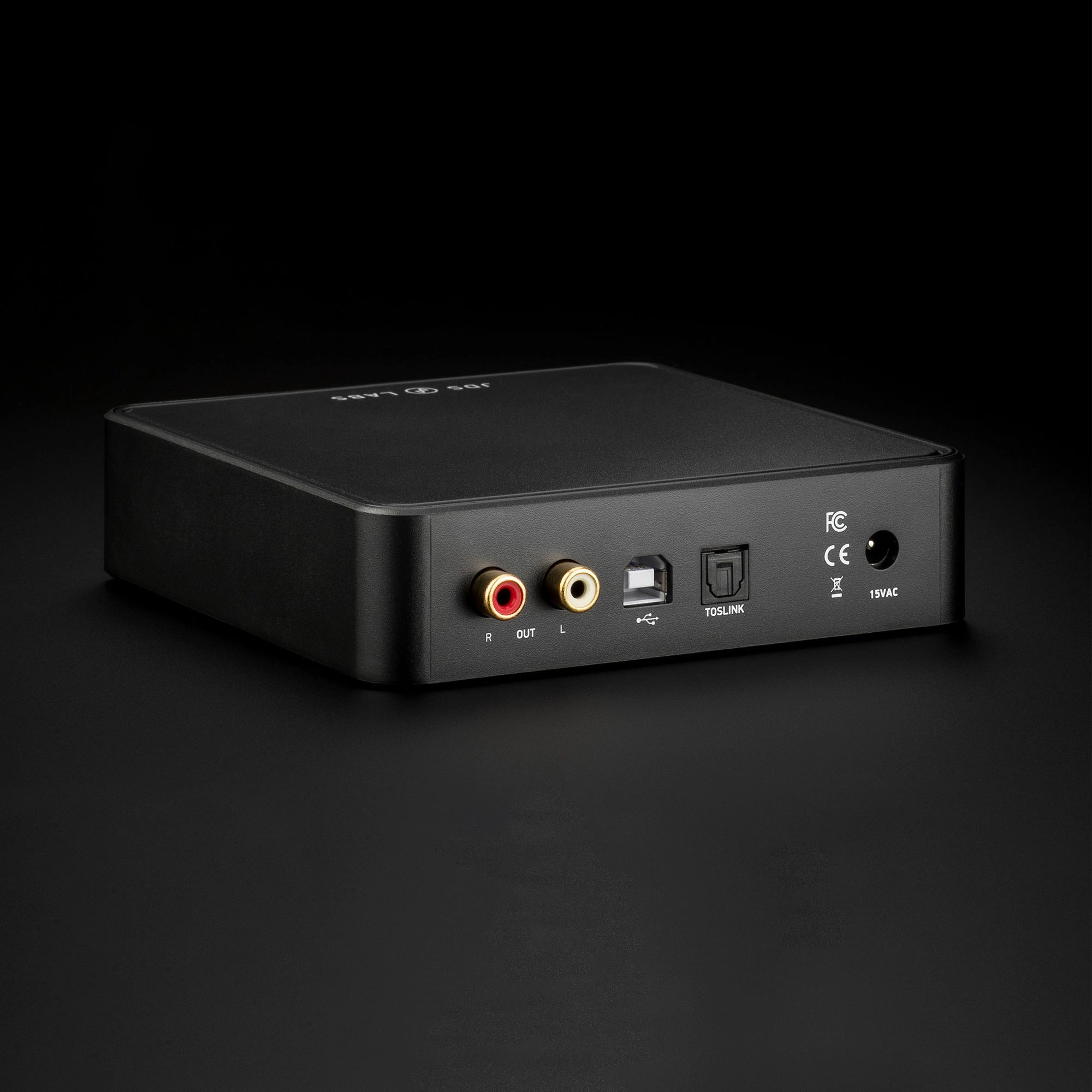

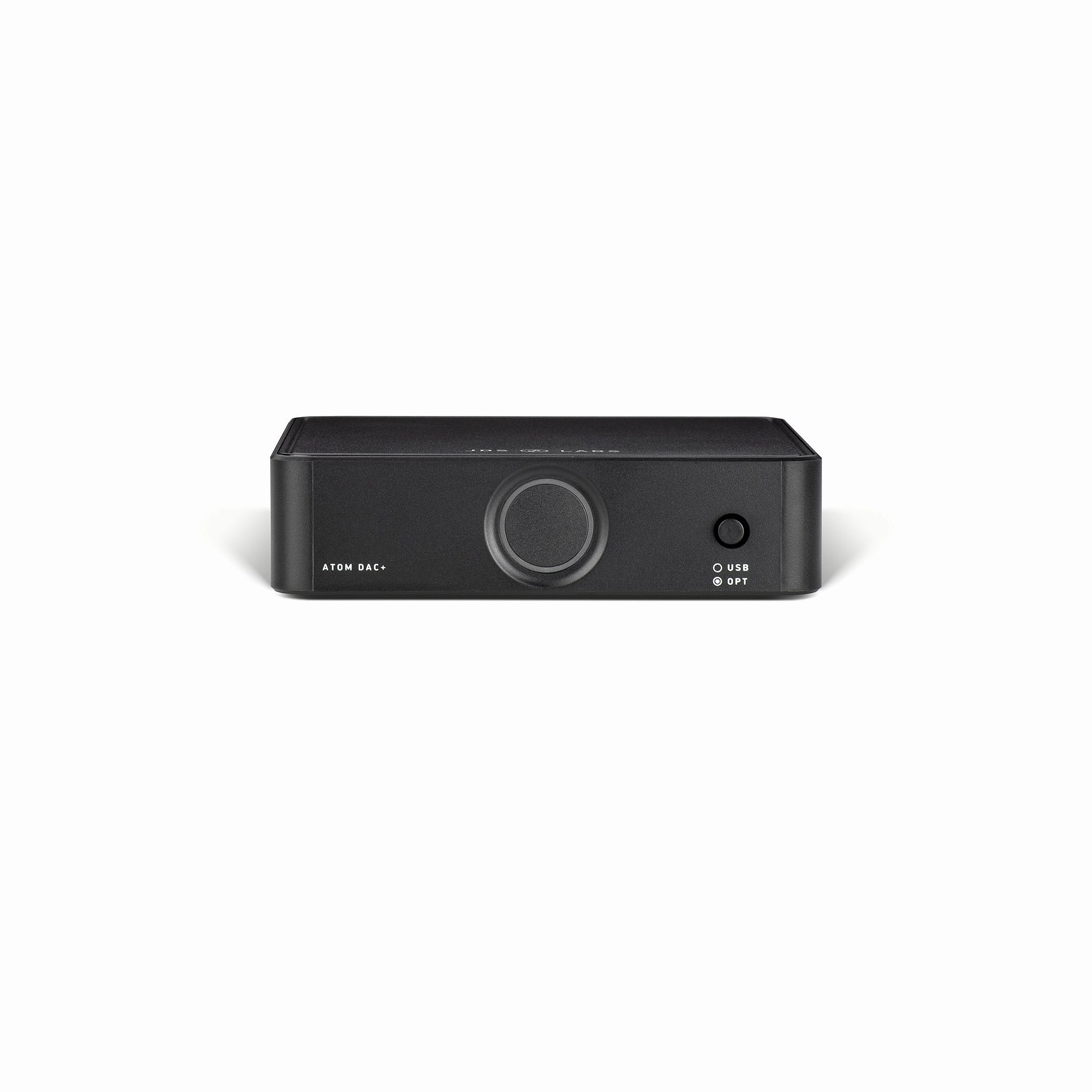

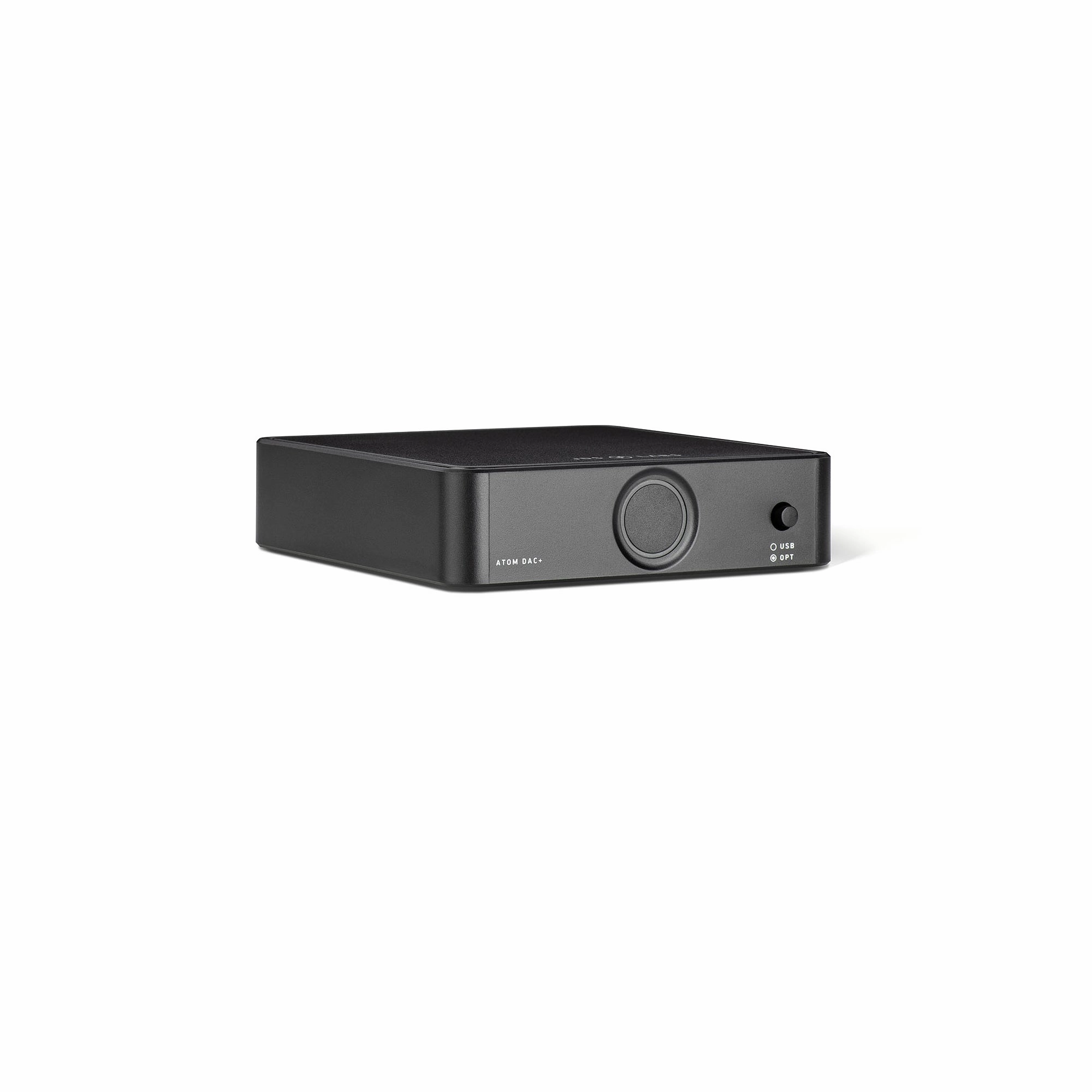

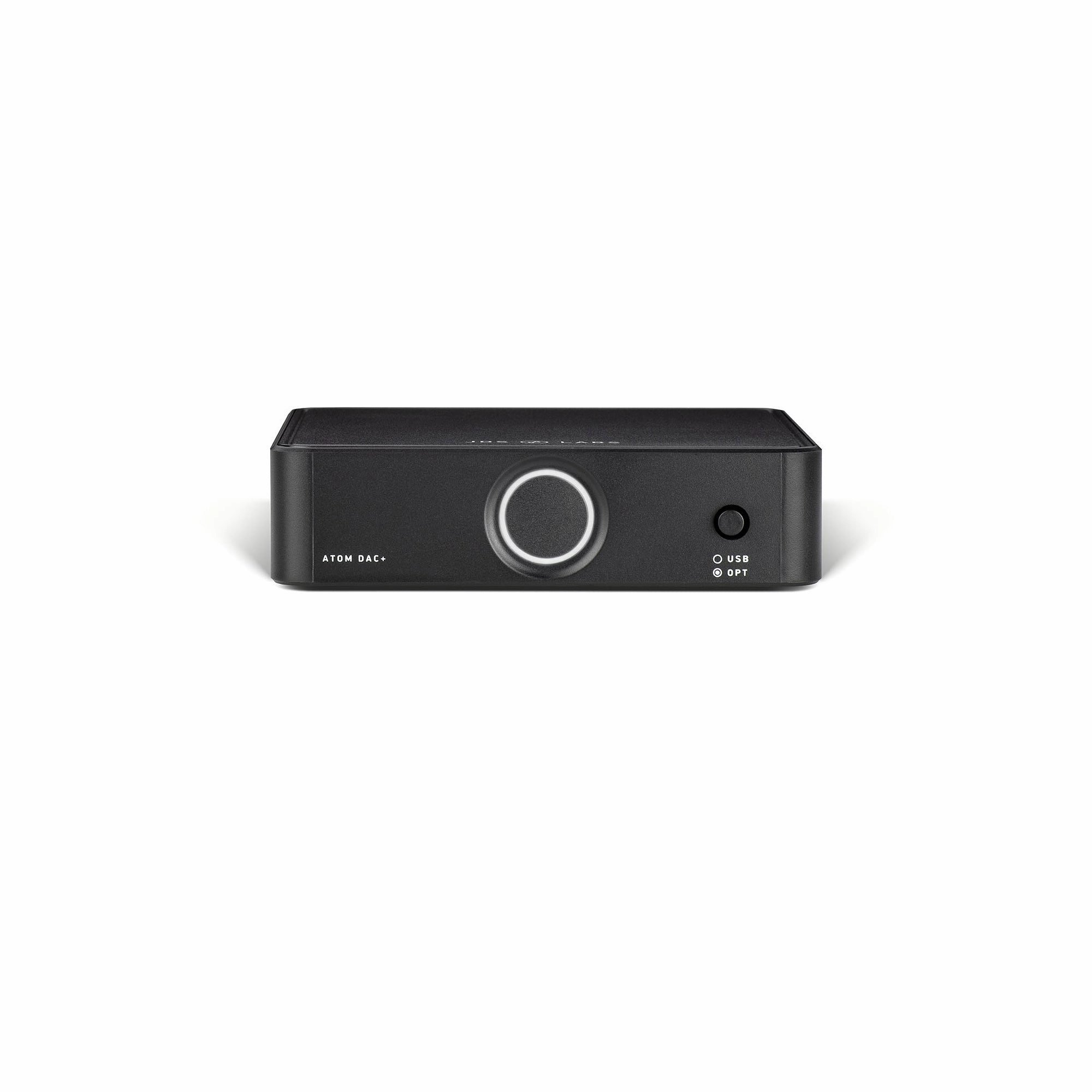

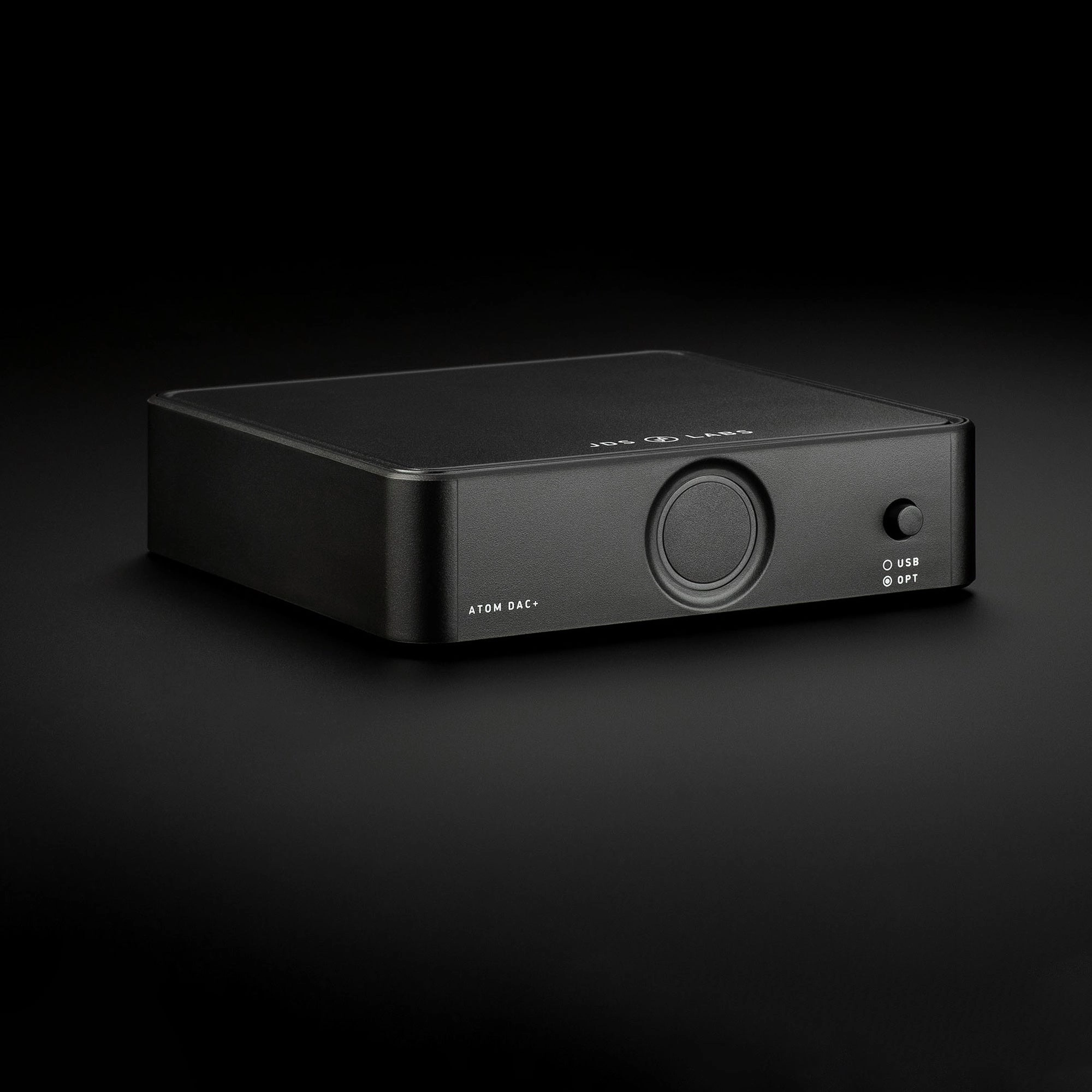

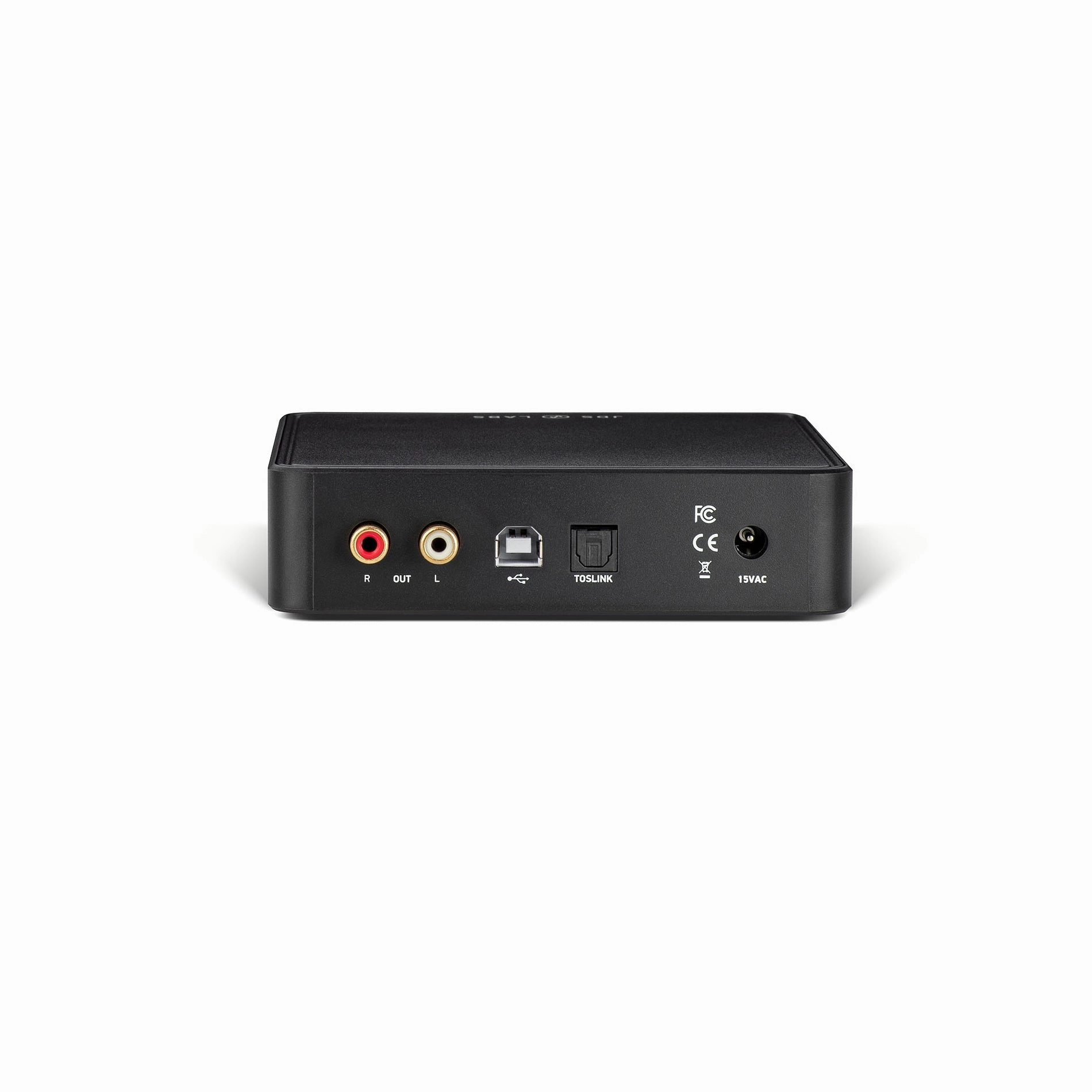

Atom DAC is built to pair with the enormously popular JDS Labs Atom Amp, now with even higher performance, both USB and TOSLINK inputs, and our latest upgradeable XMOS based firmware with UAC2 support and UAC1 fallback*. Atom DAC 's subtle light ring glows when in use, automatically powers down during inactivity, and wakes up instantly and silently. A dedicated transformer ensures mains isolation. Stack Atom DAC with your Atom Amp and enjoy!

Mems Oscillator
Atom DAC is clocked by 45/49MHz MEMS oscillators with 25ppm frequency stability, delivering minimal jitter.

Upgradeable Firmware
Atom DAC 's XMOS based firmware configures and manages all functionality, with DFU support for future updates.

UAC2 and UAC1
Atom DAC supports up to 32/384kHz PCM over a custom XMOS XU208 based UAC2 engine. While we claim no measurable superiority of high sampling rates, UAC2 and ASIO support satisfy your pursuit of bitperfect listening. UAC1 fallback* is activated when using a USB 1.1 hub or isolator.

Externally powered
Atom DAC is powered by a perfected supply network, with an external AC transformer and 10 regulators that ensure consistent rail voltage and super low ripple.

Automatic Standby
Atom DAC automatically enters standby after 15 minutes of inactivity, powering down its light ring and D/A circuitry, and audio wakes up silently and instantly.

Differential Summing I/V Output

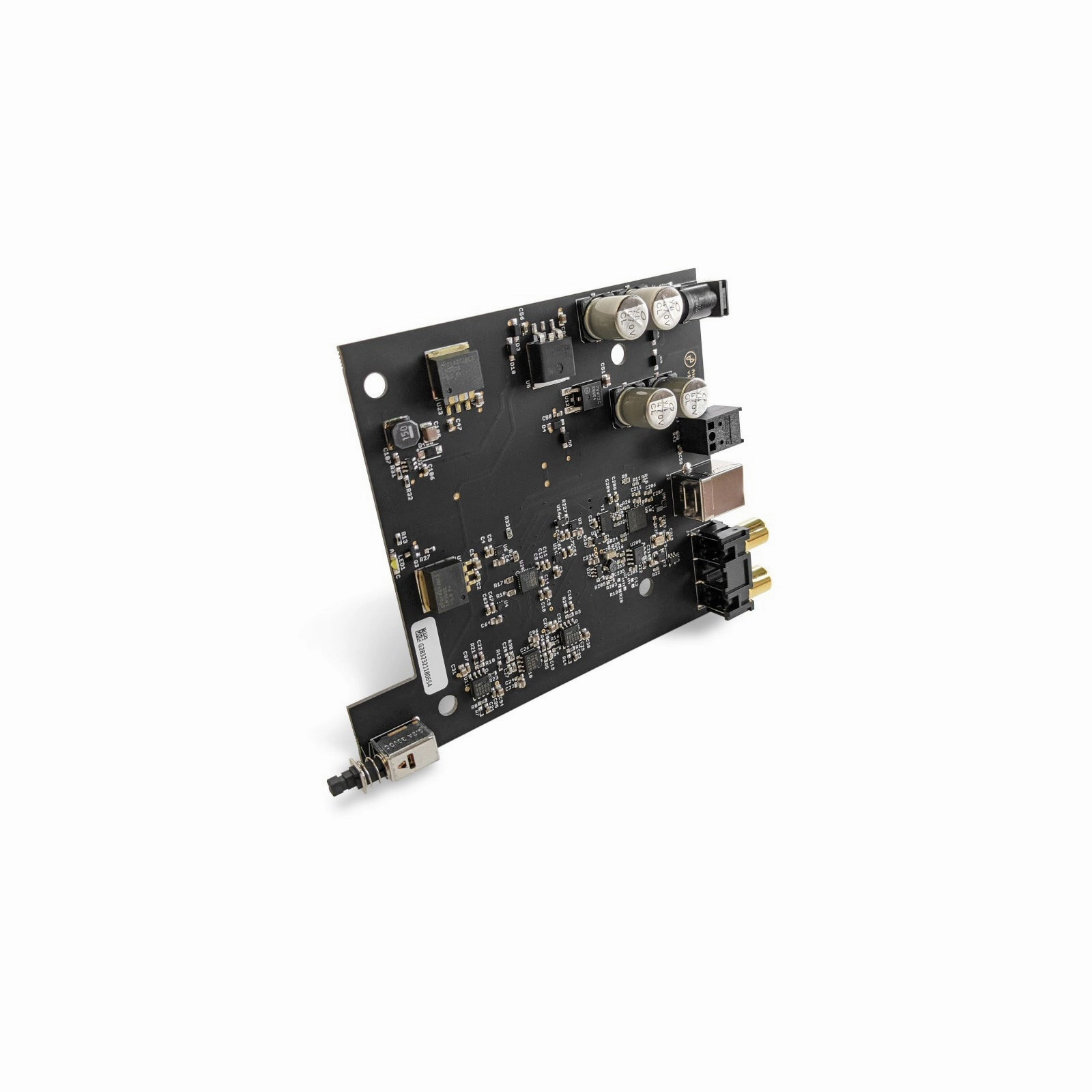

Differential output of an ES9018K2M DAC is paired with our unique, DC coupled, precision tuned I/V converter with three stages per channel, or six NJM opamps in total.
