More bass, less space
The compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.
Nimble and powerful
Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil? cone.
A question of balance
The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.
The digital advantage
Digital amplification is cool-running and energy-efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.
Take control
By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, but it also helps maximize your sound quality.
TECHNICAL SPECIFICATIONS
Model
DB3D
Description
DB Series subwoofer
Technical features
1000w Class D Hypex amplifier
2 x 200mm (8in) Aerofoil? cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Drive units
2 x 200mm (8in) Aerofoil? cone drive units in a balanced configuration
Frequency range (-6dB)
8.5Hz - 500Hz
Frequency response -3dB (centered on level at 100Hz)
10Hz - 350 Hz
Max power output
1000W
Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 - 9-pin D connector
Dimensions
Height: 360mm (14.1in)
Width: 320mm (12.6in)
Depth: 300mm (11.8in)
Net weight
25kg
Cabinet finishes
Gloss Black

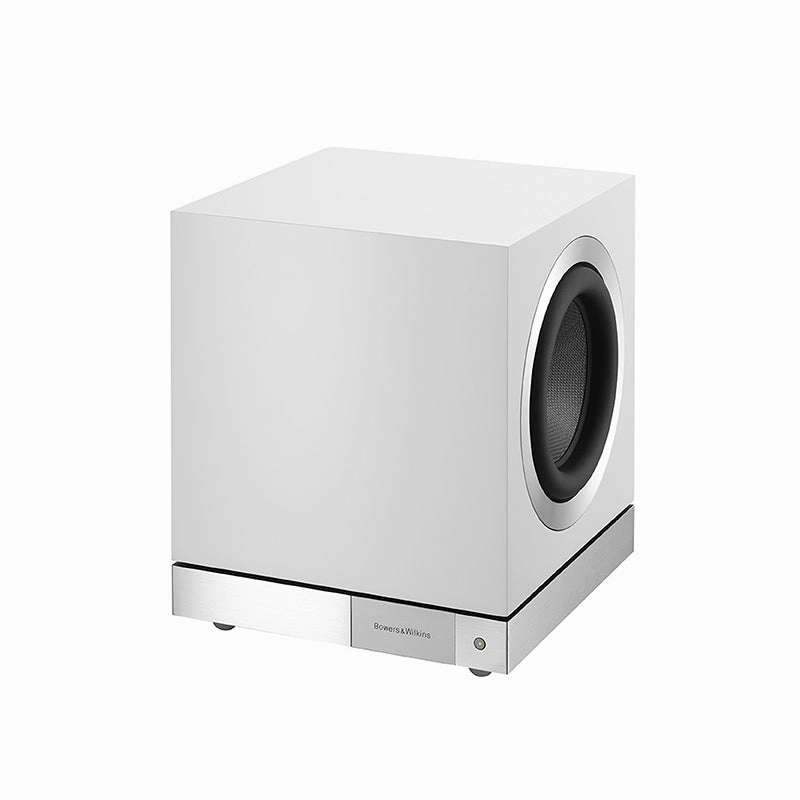

Satin White

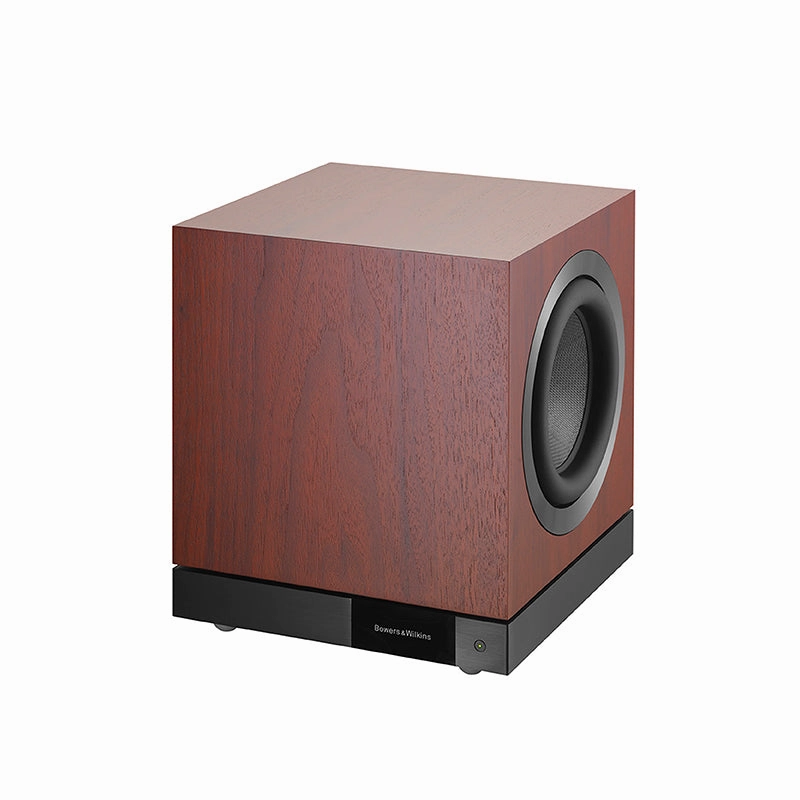

Rosenut
