LAB POINTS
- versatile, user-friendly phono preamp at entry level price point
- compatible w/ both moving magnet moving coil (MM/MC) cartridges
- selectable cartridge input impedance input capacitance to fine tune your listening experience per cartridge
- dual mono, ultra low noise circuitry for excellent channel separation
- precise RIAA equalization

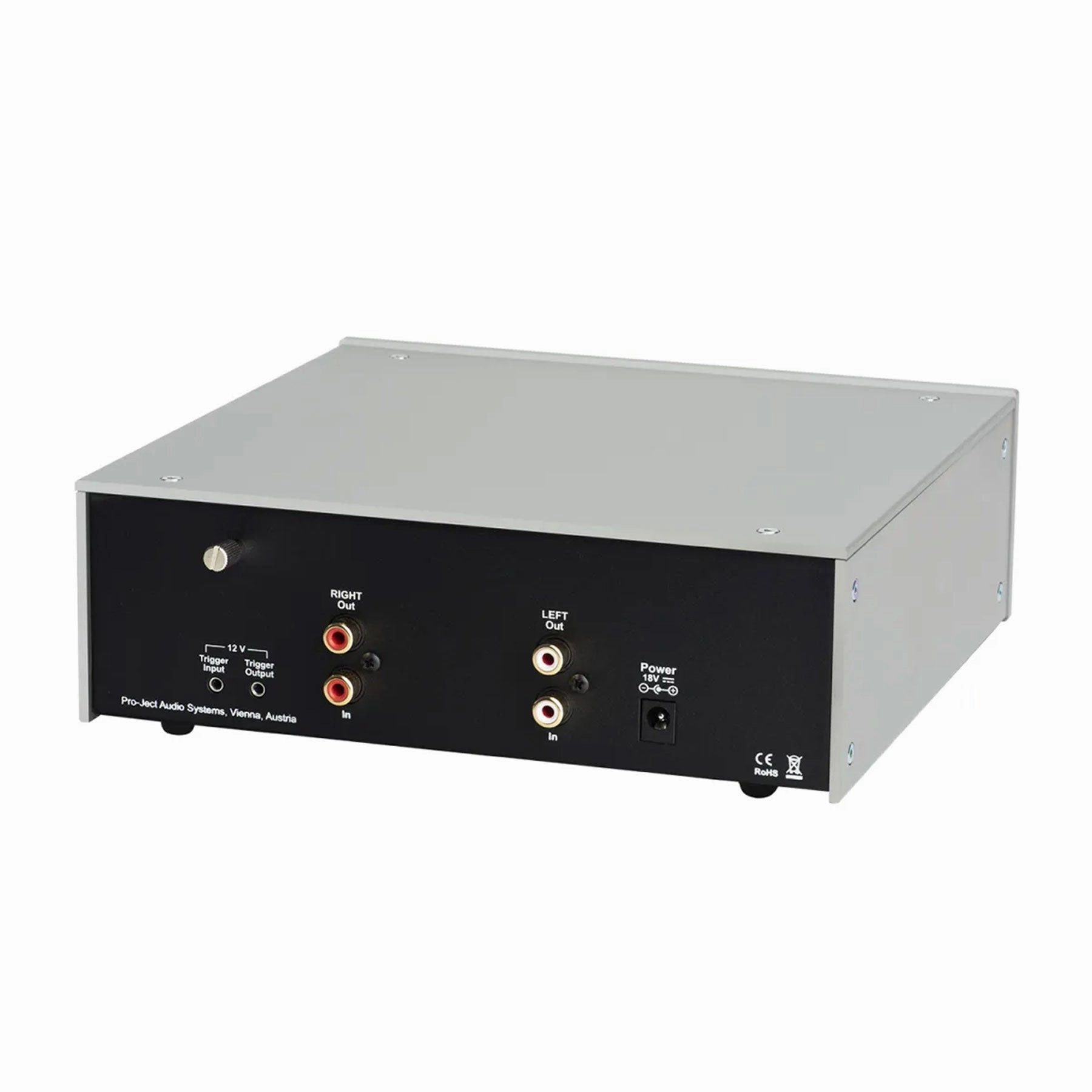

- gold plated input output RCA sockets
- durable aluminum metal sandwich constructionprotects from vibrations and electromagnetic interference

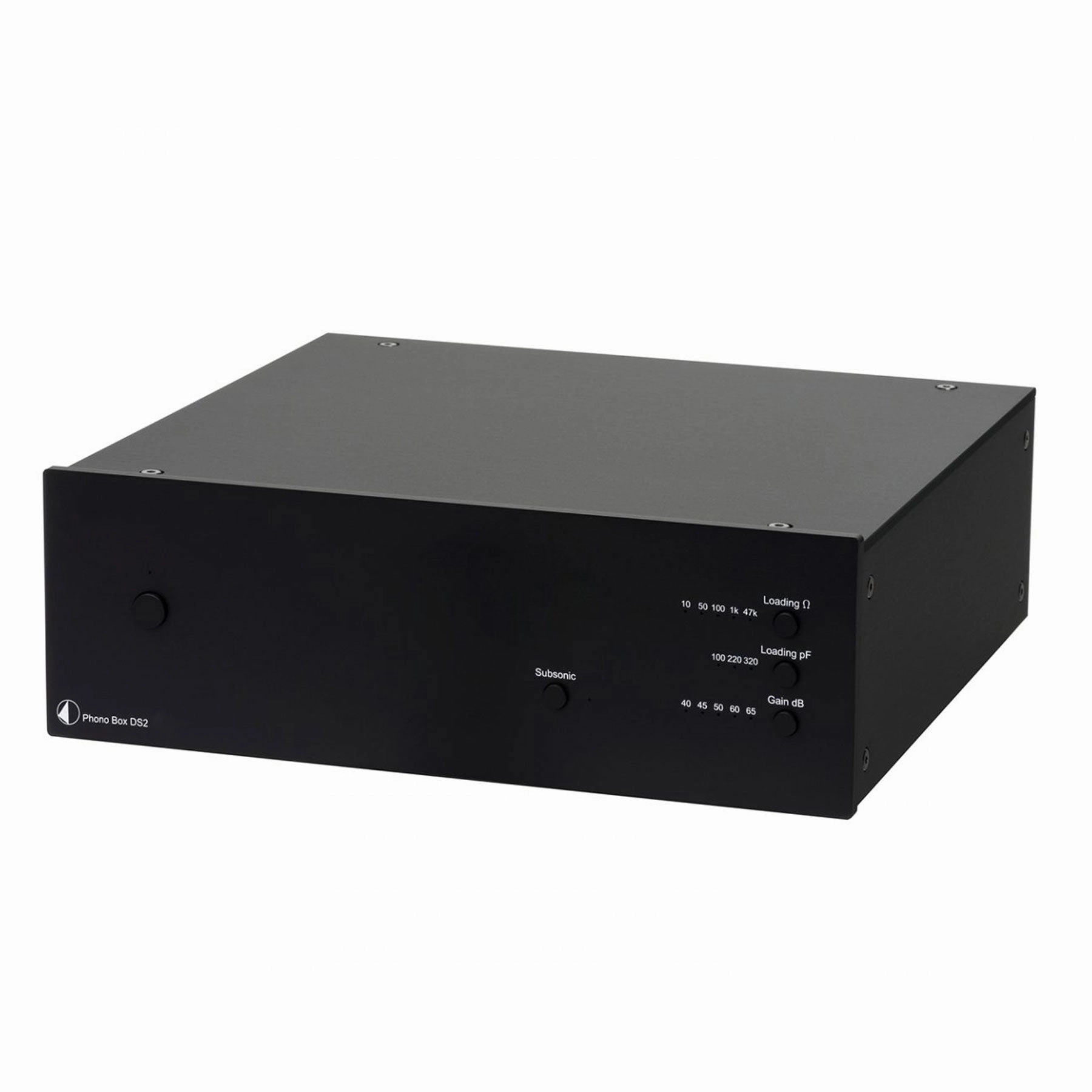

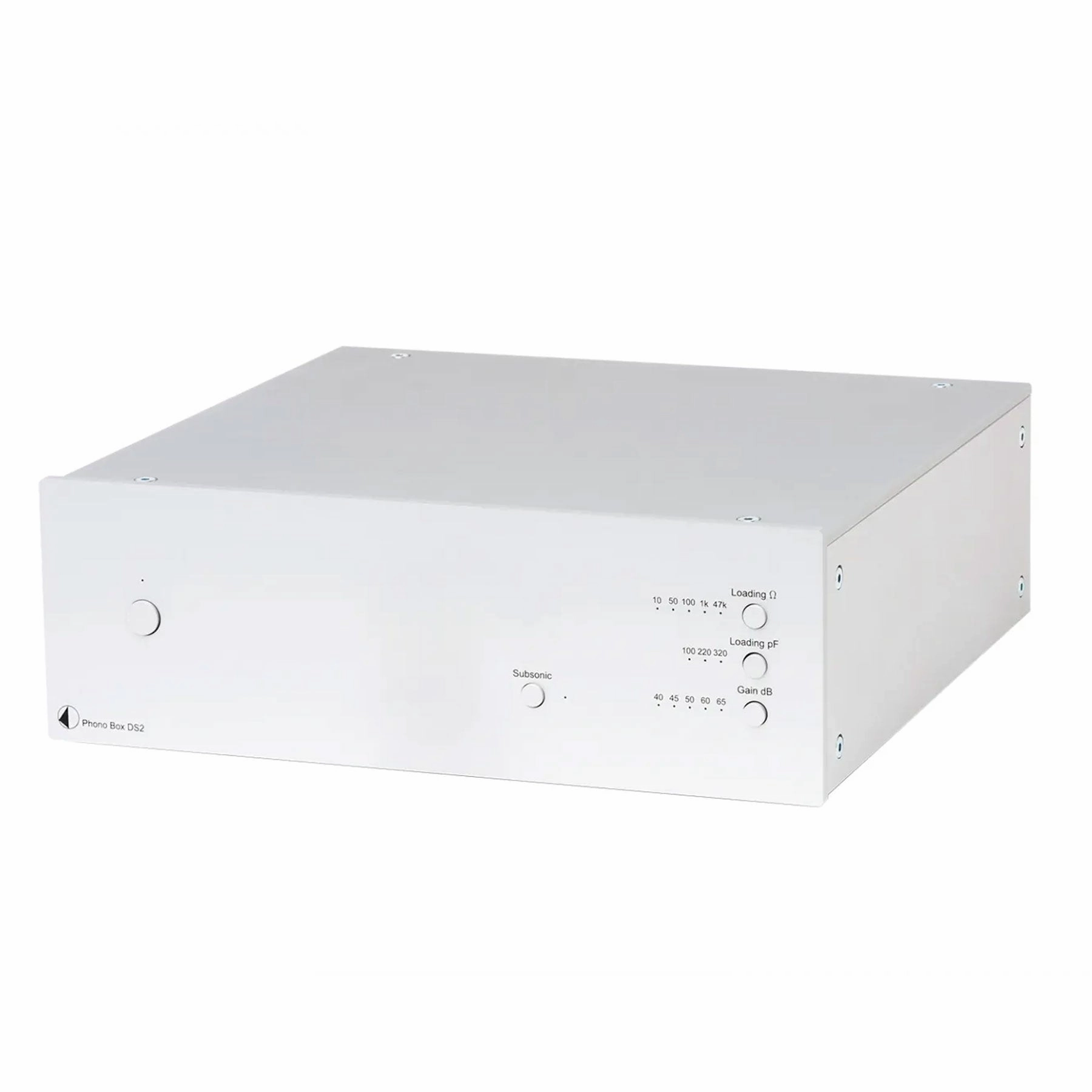

- easy access front-side controls
TECH SPECS
- cartridge compatibility: MM or MC
- input: 1pair RCA
- output: 1 pair RCA
- input impedance: 10-47 kOhm
- capacitance:100/220 and 320pF
- output voltage:500mV @ 1kHz (at 5mV input voltage @ 1kHz)
- gain MM/MC: 40 / 45 / 50 / 60 / 65 dB
- RIAA curve accuracy: /- 0.5dB/20Hz - 20kHz
- power supply: 18V/500mA DC; 110 - 240V, 50/60Hz
- power consumption:100 mA DC, < 1 Watt standby
- dimensions: 8.1 x 2.8x 7.6" / 206 x 71 x 194 mm
- weight: 2.9lbs / 1.32kg
