LAB POINTS
- vinyl noise reduction system detects and reduces vinyl crackle via algorithmic noise reduction system (NRS)

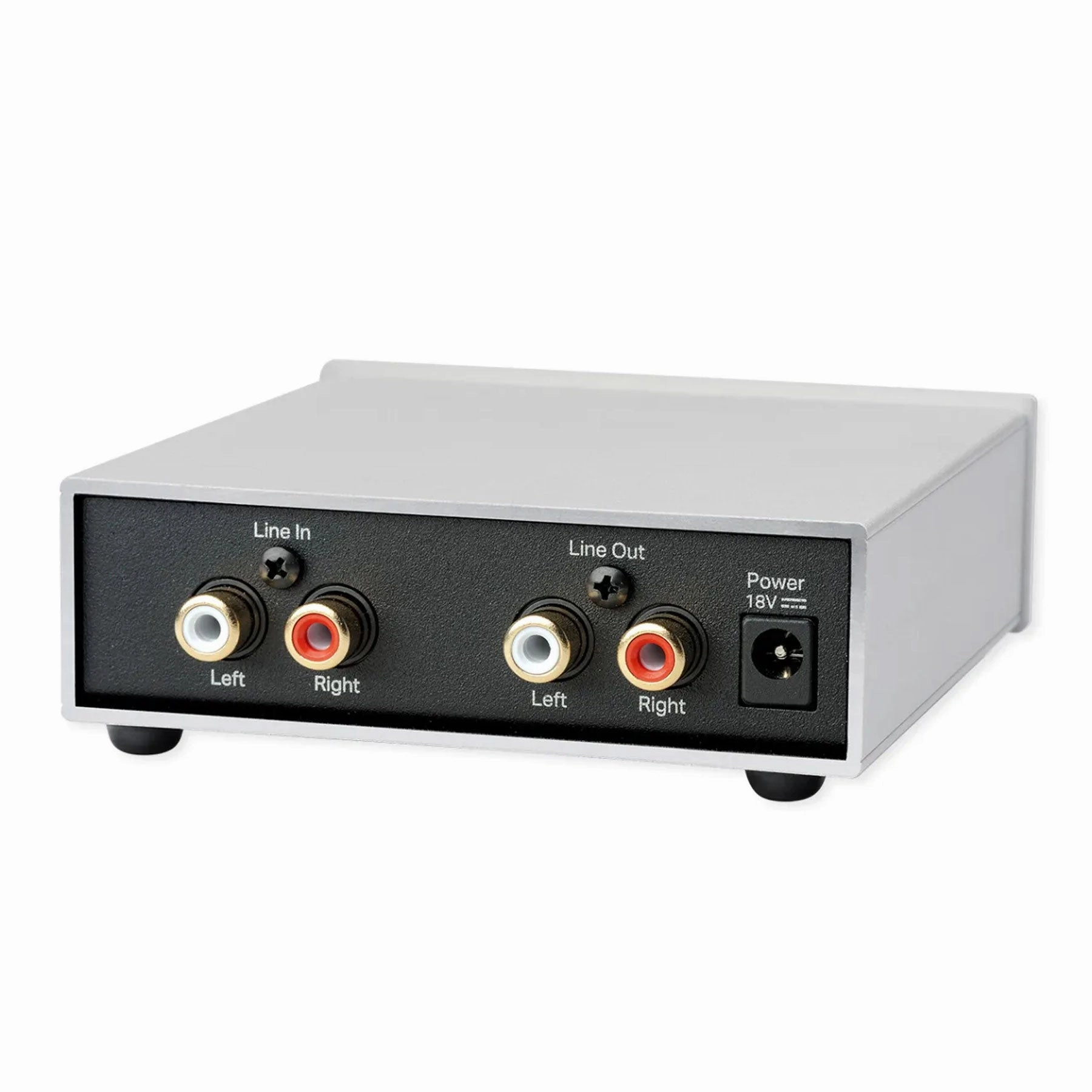

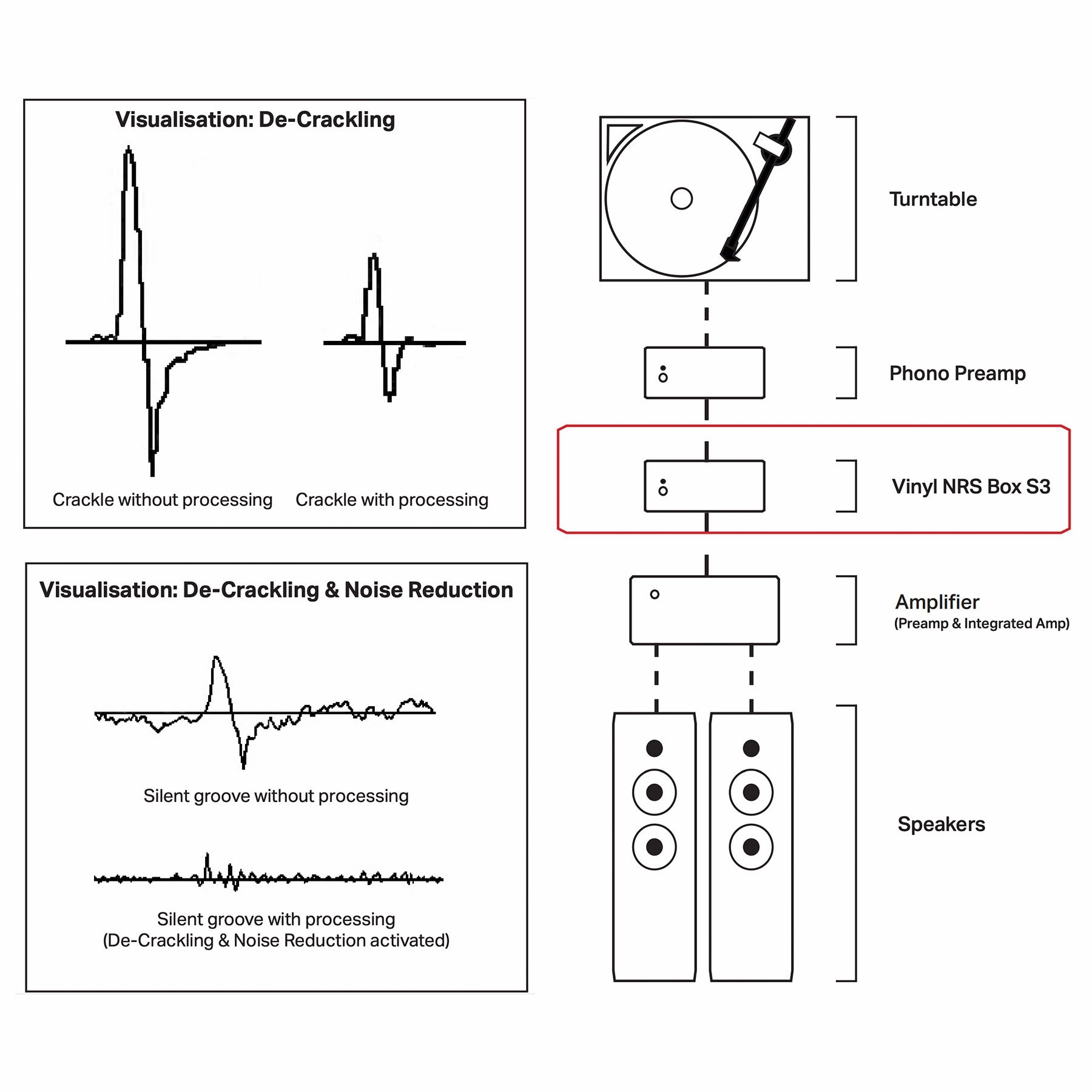

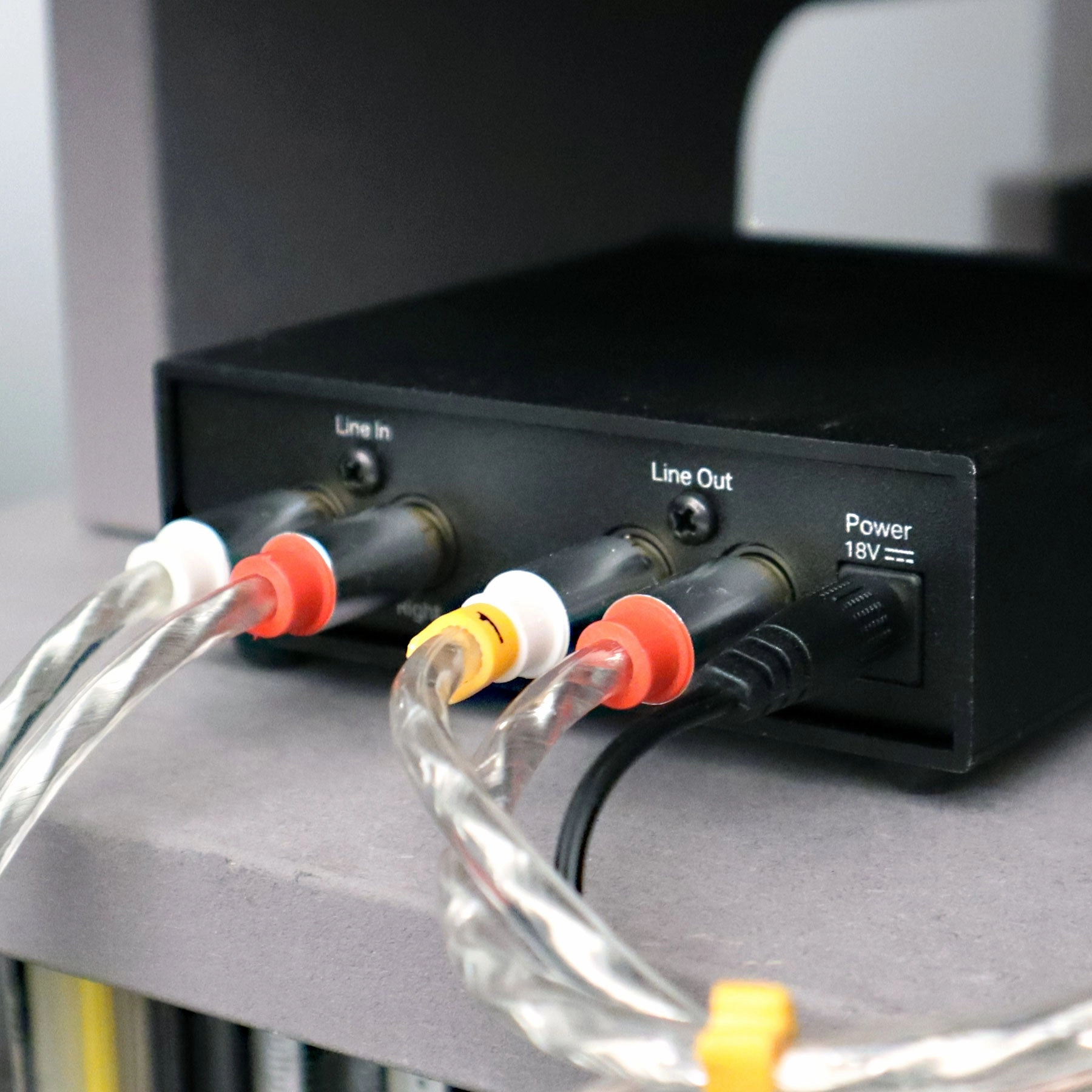

- connectbetween your phono preamp and amplifier/ power speakers
- the unit will automatically activate when signal is detected unless bypassed

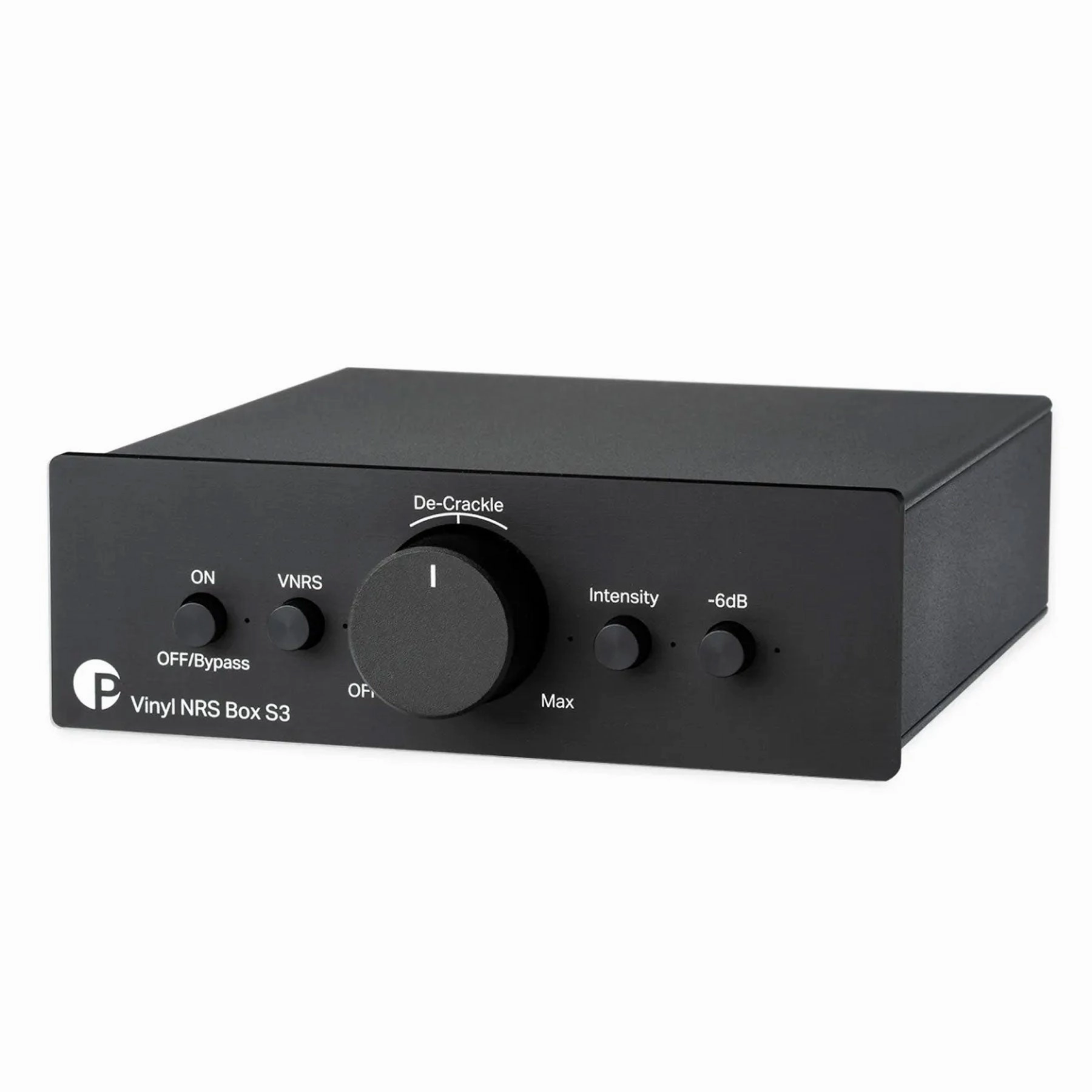

- (2) de-crackling intensity algorithms, can be fine-tuned viafront panel knob
- instant feedback via front panel LED
- 24-bit DSP /96 kHz sampling rate for precise processing
- line-level operation
- full aluminum housing

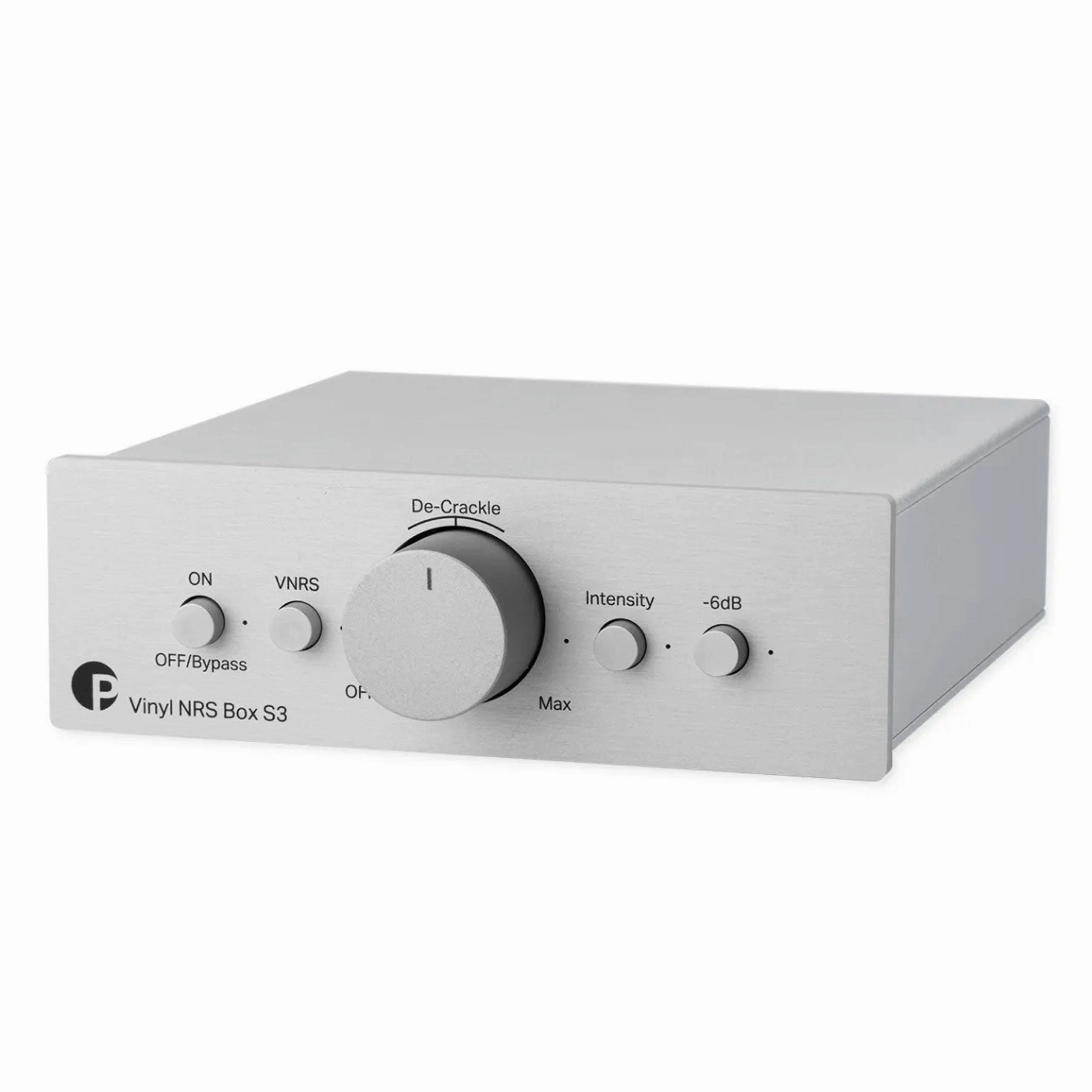

- available in silver or black
"Connect the output of your phono preamplifier to the Vinyl NRS Box S3. First, the line signal gets digitized with a bit depth of 24-bits and a sampling rate of 96 kHz. If the input is too loud, the overflow LED will show it to you. You can then activate the -6 dB switch and the gain is fine now. Crackling parts can be reduced by up to 8 dB which is a big improvement for the listening experience.You can easily adjust the sensitivity with the potentiometer on the front. If you dont want to use the De-Crackling function, just turn the potentiometer completely to the left and the algorithm is in bypass." -Pro-Ject
TECH SPECS
- Internal sampling: 96 kHz/24 bits
- Internal processing: 56-bit accumulator, double precision
- Frequency response 20Hz to 20 kHz: -0,6 dB / 0,1dB
- Frequency response 30Hz to 20 kHz: -0,2 dB / 0,1dB
- Clip indication: -0,6 dB below real clipping
- Bypass mode: galvanic linked together (Rlink<0,3 ohm)
- THD: <0,009% (500 mVrms Input Level)
- VNRS noise/rumble reduce: up to 8dB (20Hz to 20 kHz)
- De-Click reduce (basic): 8 dB (3kHz to 20 kHz)
- De-Click reduce (intensity): 12 dB (2kHz to 20 kHz)
- Outboard power supply: 18V/500mA DC, suitable for your country's mains
- supply
- Power consumption in standby: 0W OFF/Standby, 2.2W ON (without outboard power supply)
- Dimensions: WxHxD: 4" x 1.5" x 4" / 103 x 37 x 104 mm
- Weight: 0.75 lbs / 340 g
COMES WITH
- power supply
