Open Box / B-Stock Notes
- exterior grade: 8.0 out of 10 - good, some surface wear
- item cosmetic note: n/a
- item function: tested
- item exterior packaging: original, packaging may show damage
- note: all open box / b-stock items are final sale
LAB POINTS

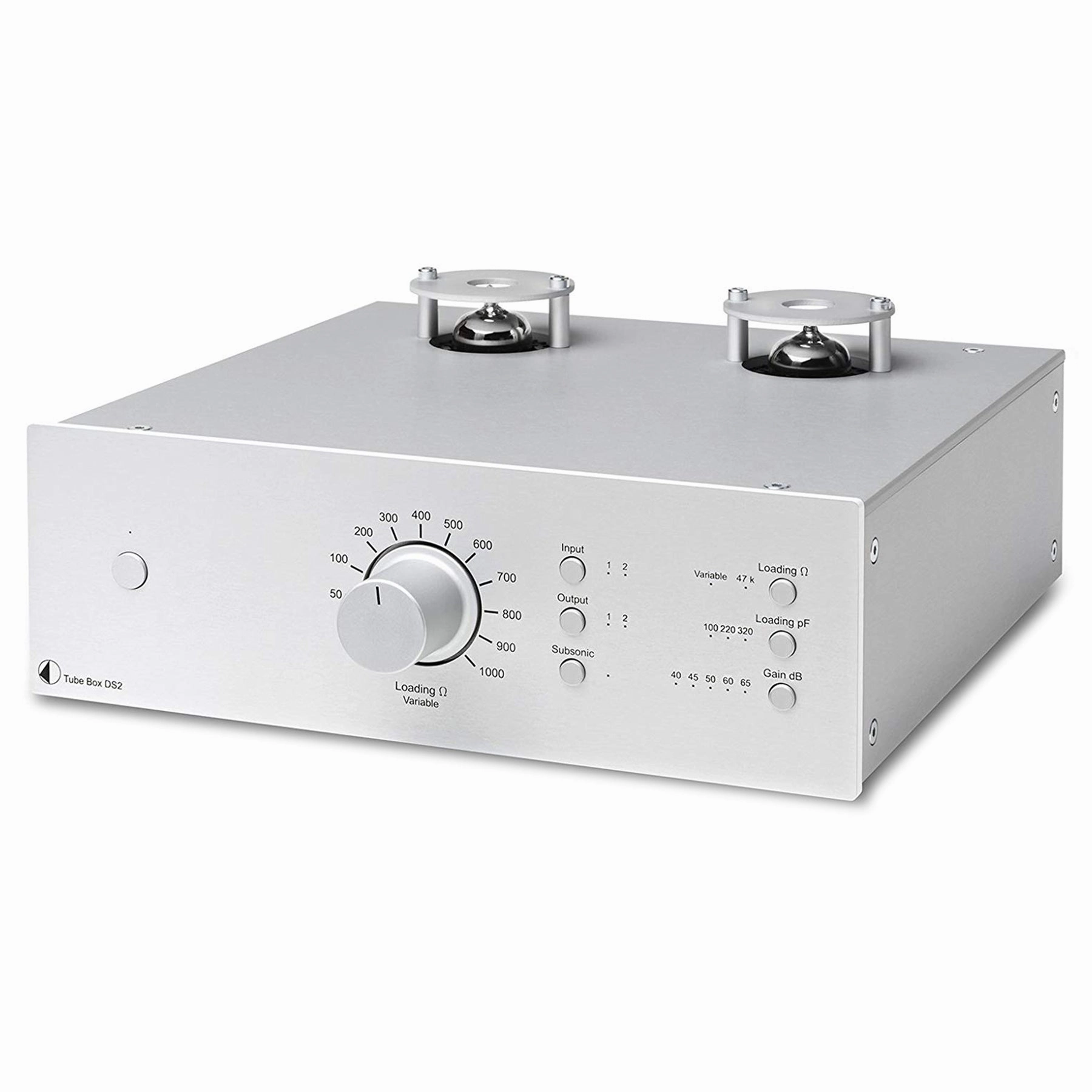

- versatile phono preamp w/ dual phono inputs tube output for warm audiophile quality sound
- compatible w/ both moving magnet moving coil (MM/MC) cartridges
- (2) selectable phono inputs (2) line outputs allows two turntable setups to be connected
- selectable cartridge input impedance input capacitance to fine tune your listening experience per cartridge
- dual mono, ultra low noise circuitry for excellent channel separation
- switchable subsonic filter prevents ultra low end rumble
- precise RIAA equalization
- gold plated input output RCA sockets
- metal casing protects against vibration and interference
- easy access front-side controls
"Enjoy a premium audiophile sound with the Tube Box DS2's warm tube output and customizable MM MC cartridge parameters for fine tuning your listening experience. Two sets of phono inputs and line outputs also allow for two turntable setups to be connected simultaneously." - TTL
TECH SPECS
- tubes: 2x ECC83 (12AX7)
- cartridge compatibility: MM or MC

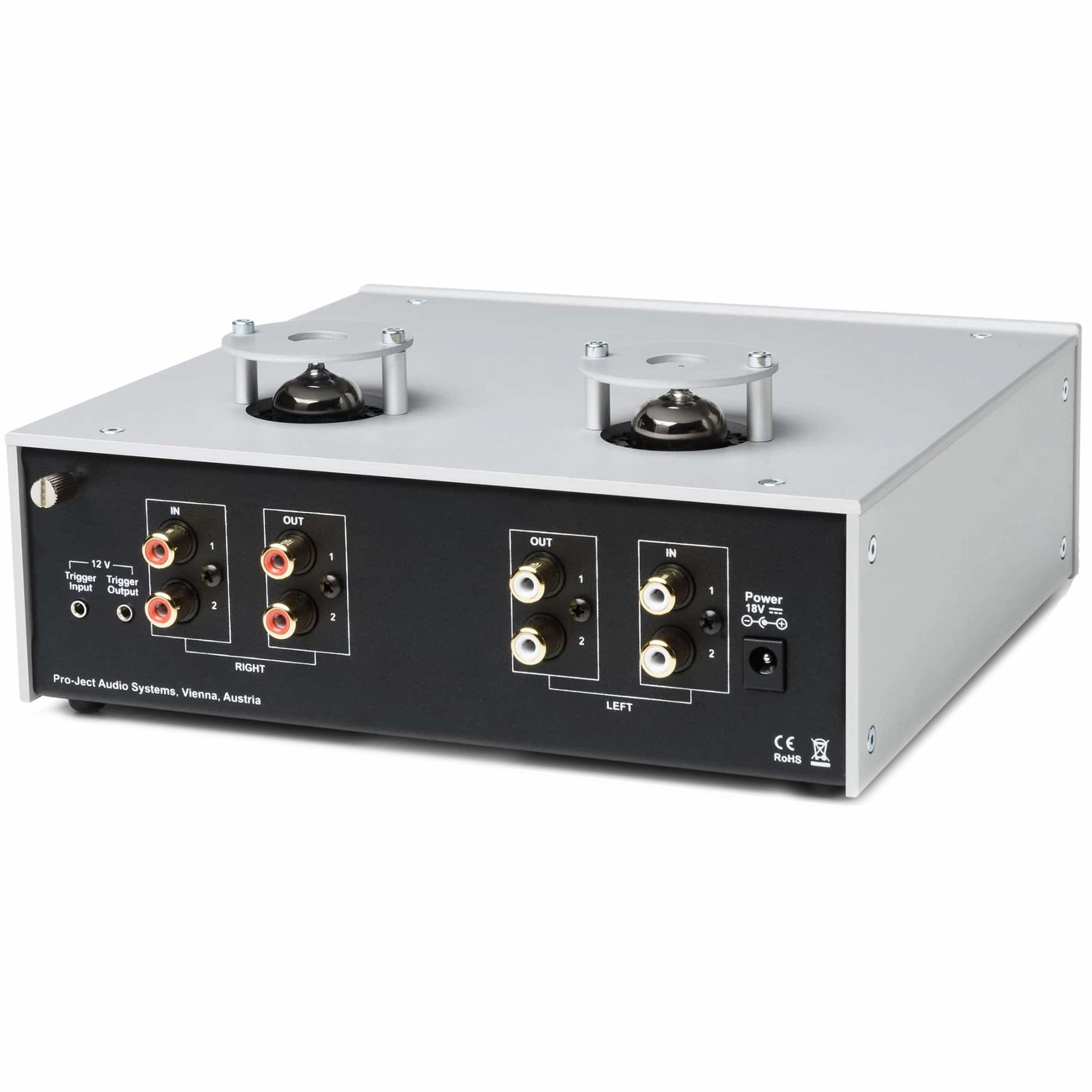

- input: 2x phono RCA
- output: 2x line RCA
- input impedance: variable 10-1000 Ohm, fixed 47 kOhm
- capacitance: 100 / 220 / 320 pF
- gain MM/MC: 40 / 45 / 50 / 60 / 65 dB
- RIAA curve accuracy: /- 0.2dB/20Hz - 20kHz
- subsonic filter: 20Hz @ 12dB/octave
- power supply: 18V/1000mA DC
- dimension W x H x D: 8.1 x 3.5 x 8.9" / 206 x 91 x 227 mm
- weight: 3.3lbs / 1500g
