LAB POINTS
- addswireless Bluetooth 5.2 connectivity toany turntable
- convertsanalog source to digital transmits / streams to any Bluetooth device (i.e. BT headphones, speakers, receiver)
- built-in phono preamp (MM) line level input/output
- fast pairing w/ up to 10 meter (~30 ft) range
- internal metal shieldingprotectsagainst vibrations radio interference
- gold plated RCA connectors

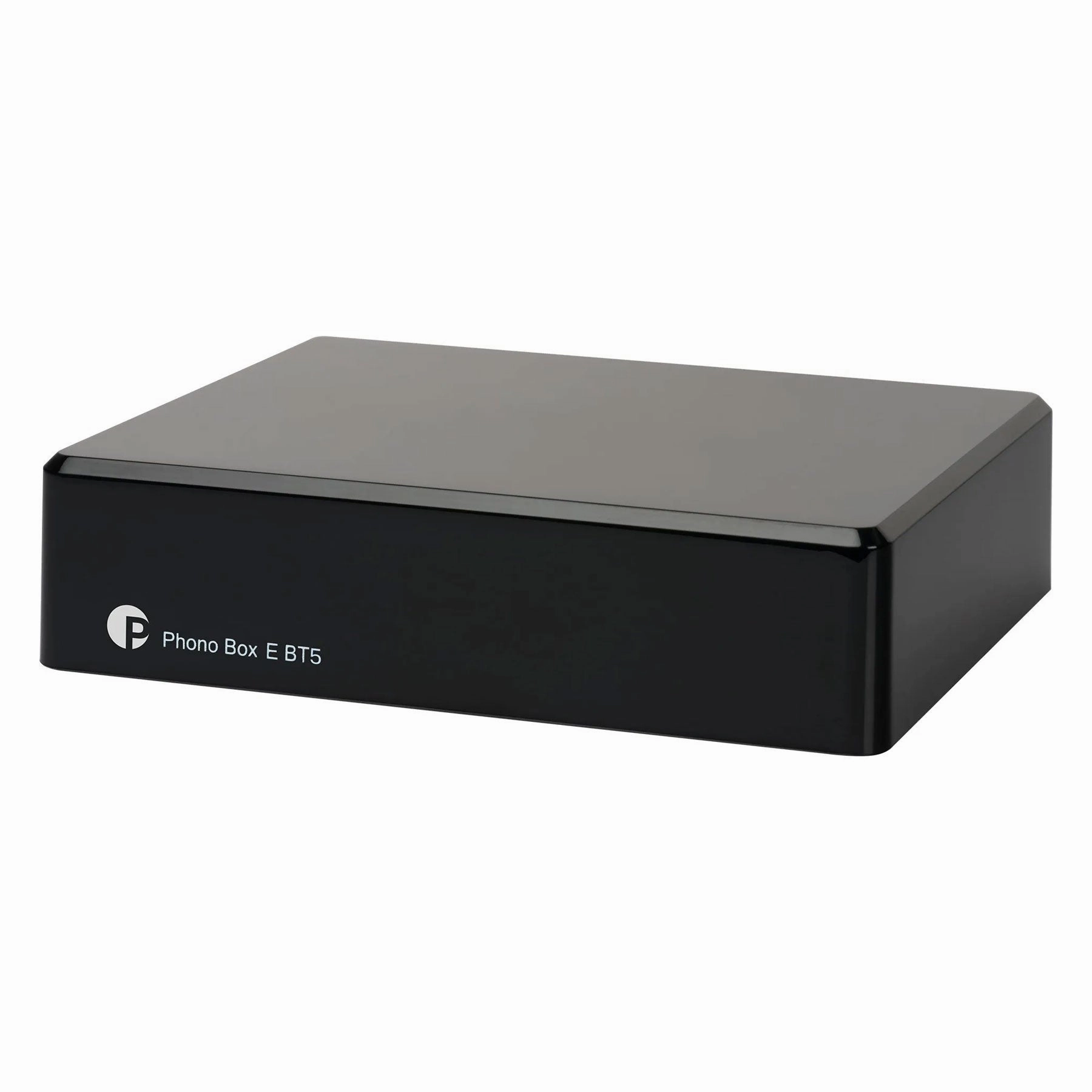

- available in black or white
"Easily add Bluetoothconnectivity to any turntable (with MM cartridge) or line level source forwirelessly streaming toBluetooth headphones, speakers, or receivers." - TTL
TECH SPECS
- Phono input impedance: 47k ohms
- Phono capacitance: 100pF
- Phono gain: 34dB

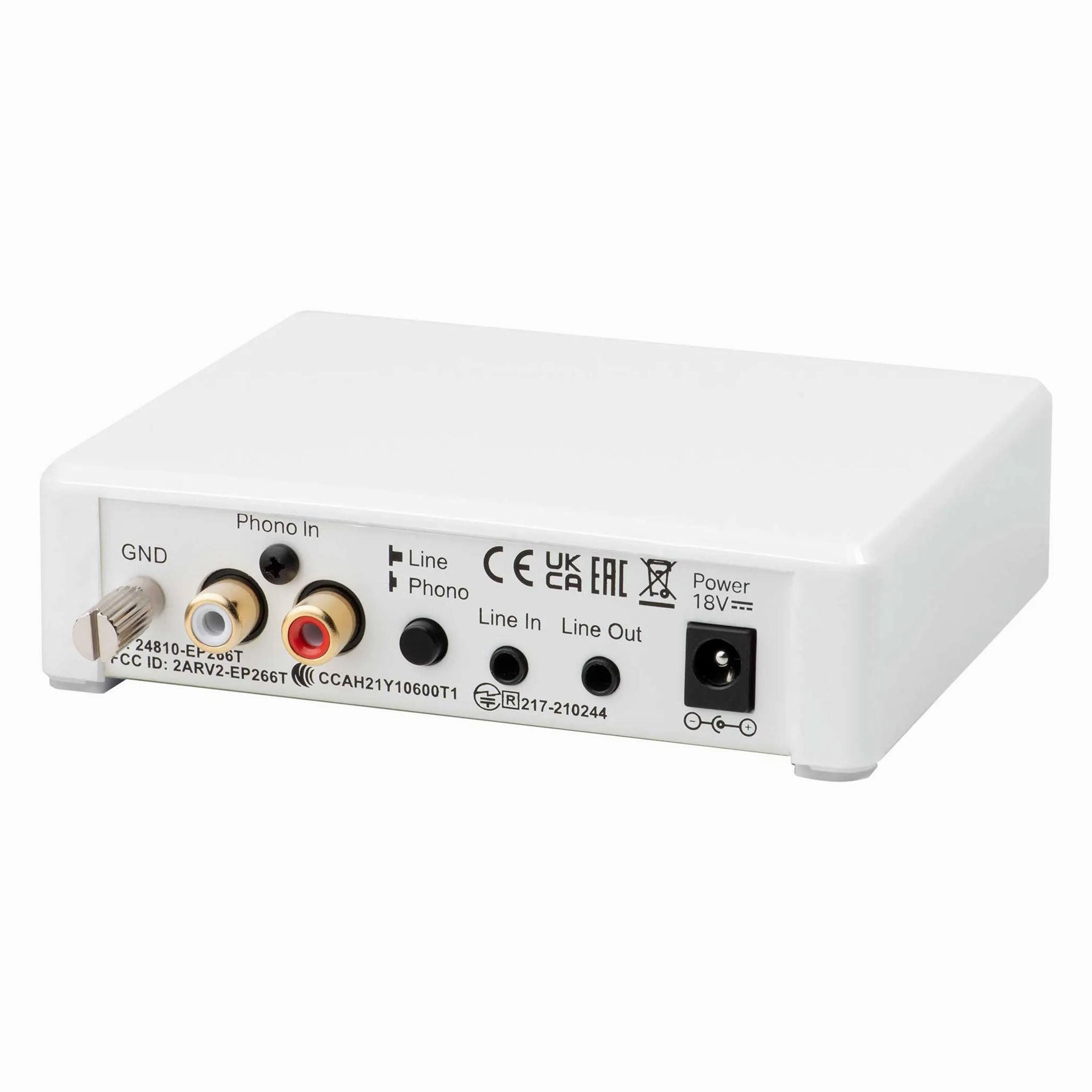

- Inputs: 1x phono (RCA), 1x line (3.5mm, 1/8)
- Outputs: 1x line (3.5mm, 1/8), 1x Bluetooth
- Noise floor: 74dBA (A-weighted)
- THD: <0.04%
- Phono/line max. input voltage: 800mV
- RIAA equalization curve accuracy: within 0.5dB (20Hz-20 kHz)
- Bluetooth: V5.2, aptX, aptX Adaptive, aptX HD
- Outboard power supply: 18 V/500mA DC
- Power consumption: 200mA DC
- RIAA EQ CURVE ACCURACY: 0.5 dB/20 Hz - 20 kHz
- DIMENSIONS: 4.7" x 1.26" x 3.9" / 120 x 32 x 100mm
- WEIGHT:0.62 lbs / 280g
COMES WITH
- power supply
