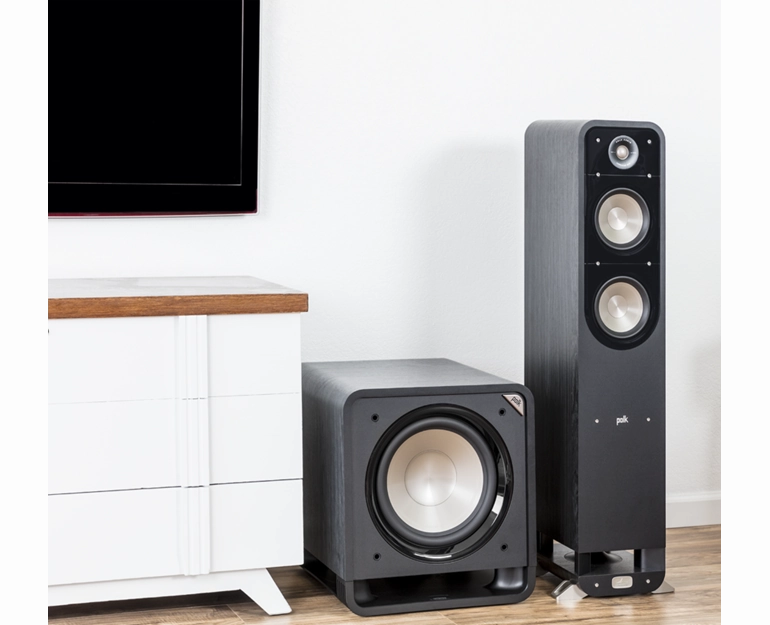

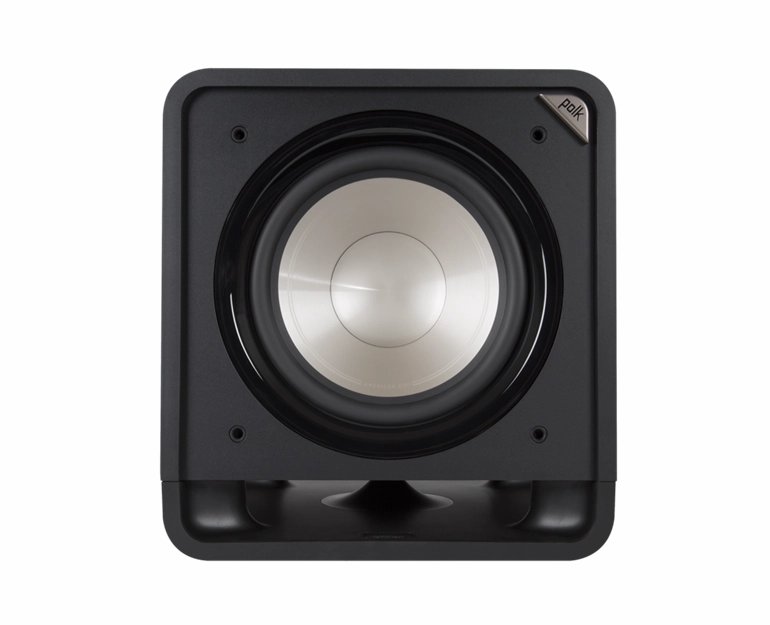

Deep Bass for Home Theatre and Music

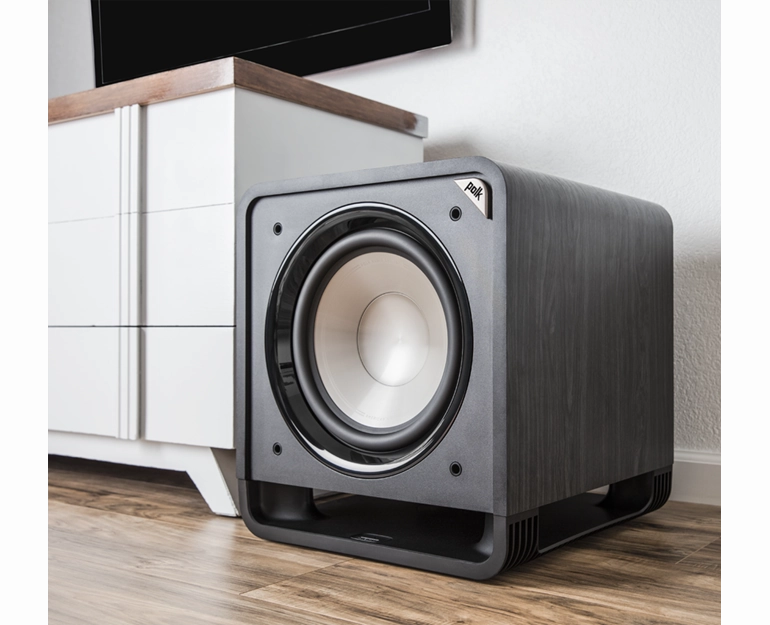

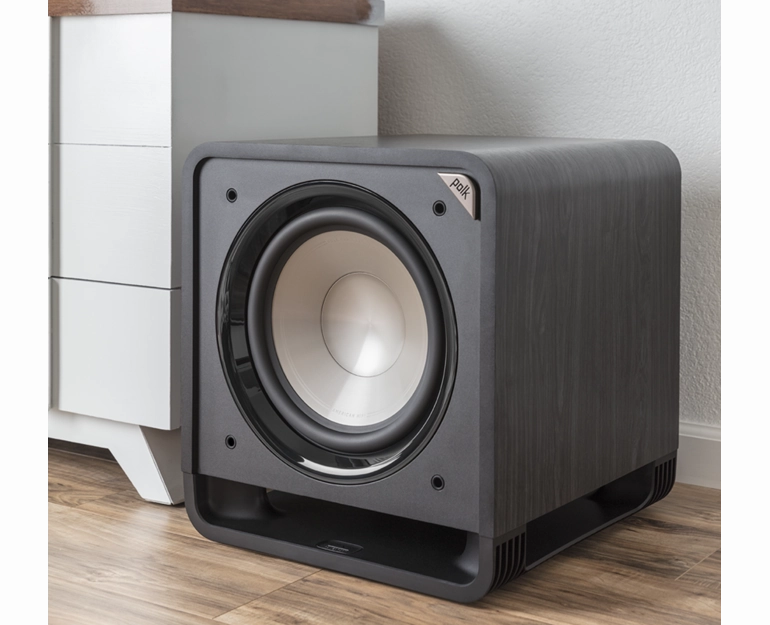

- Front-firing long-throw 12" Polypropylene Dynamic Balance and Klippel optimised driver

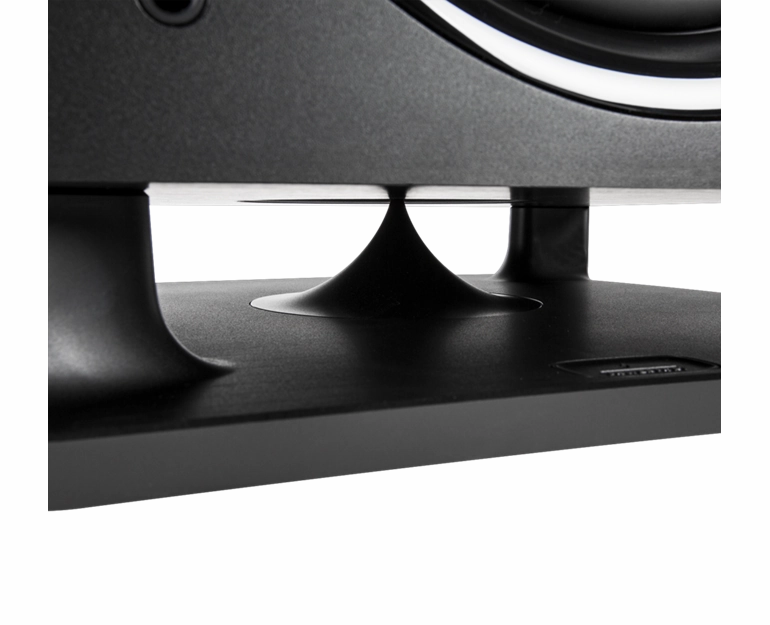

- Floor-firing patented Power Port Technology for deeper bass response and reduced port noise
- Complete Control - built-in controls for variable volume, low pass filter, and phase (0/180) for optimum bass levels.
SPECIFICATIONS
Subwoofer
Total Pieces - 1
Height - 16.5" (41.91 cm)
Width - 15.12" (38.4 cm)
Depth - 16.1" (40.89 cm)
Weight - 37.75 lbs (17.12 kg)
Subwoofer Array Driver Enclosure Type - Power Port Bass Vented
Subwoofer Array Driver Complement - (1) 10" (25.4 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimised driver - Subwoofer
Peak Power - 200 Watts
Continuous Power - 100 Watts
Internal Amplifier
Amplifier Class - Class D
Audio Quality
Total Frequency Response - 25 Hz .180 Hz
Nominal Impedance - 8 ohms
Lower and Upper -3dB Limits - 30 Hz .120 Hz
Inputs
Audio Inputs
- LFE (Unfiltered)
- Stereo Line Level - (2) RCA
Controls
IO Button Location - Back Panel
Adjusts
- "Volume /-
- Low Pass Filter (30Hz-120Hz)
- Phase (0/180)
- Power: Auto on/off
- Power: DC control (12V trigger)"
Power
US Power Cycle - Energy Star Compliant with Auto Standby (.5W)
