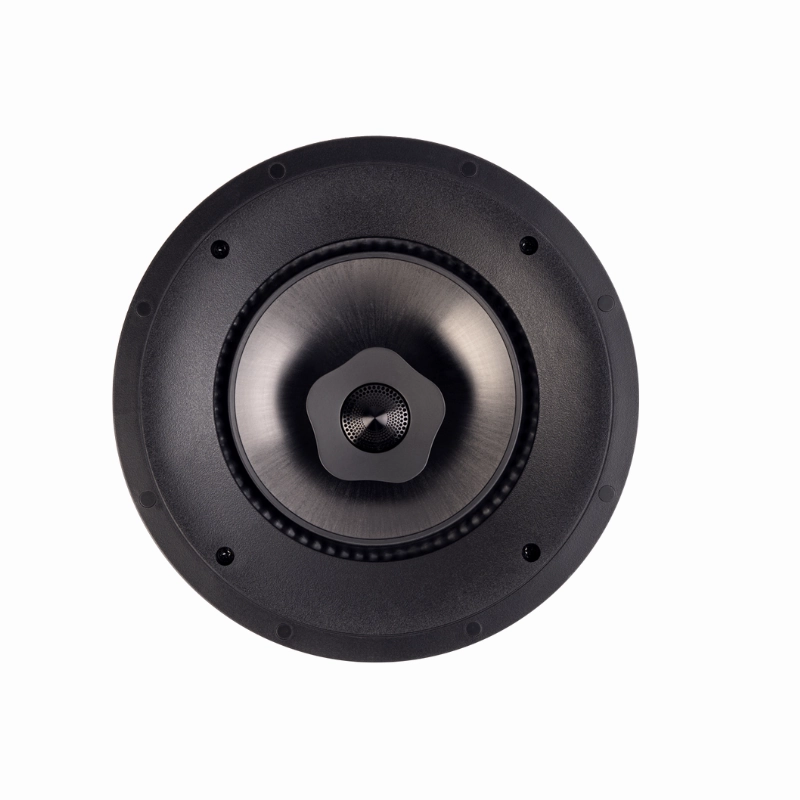

Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens
AL-MAC is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesnt just sound good on paper but truly sounds incredible in the real world.
CARBON-X Cones
Advanced
Shock-Mount System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Patented Active Ridge Technology (ART) surrounds
Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. US patents: D654,479S and 8,340,340B2.
Advanced Features for a Solid and Secure Installation
FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
Rear Component Shieldingprotects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Reduced Edge Diffraction (RED) Technologysignificantly reduces the adverse effects of diffraction while improving frequency response.
Pocketed screw holeshelp to hold the drill steady, making installation a snap.
FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
Rear Component Shieldingprotects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Reduced Edge Diffraction (RED) Technologysignificantly reduces the adverse effects of diffraction while improving frequency response.
Pocketed screw holeshelp to hold the drill steady, making installation a snap.
Premium-grade componentsinclude high-power rated resistors, capacitors and heavy gauge wire inductors.
Nickel-plated, spring loaded binding postsfeature a larger wire hole to accept higher-gauge wire or banana plugs.
FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
Rear Component Shieldingprotects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Reduced Edge Diffraction (RED) Technologysignificantly reduces the adverse effects of diffraction while improving frequency response.
Pocketed screw holeshelp to hold the drill steady, making installation a snap.
Premium-grade componentsinclude high-power rated resistors, capacitors and heavy gauge wire inductors.
Nickel-plated, spring loaded binding postsfeature a larger wire hole to accept higher-gauge wire or banana plugs.

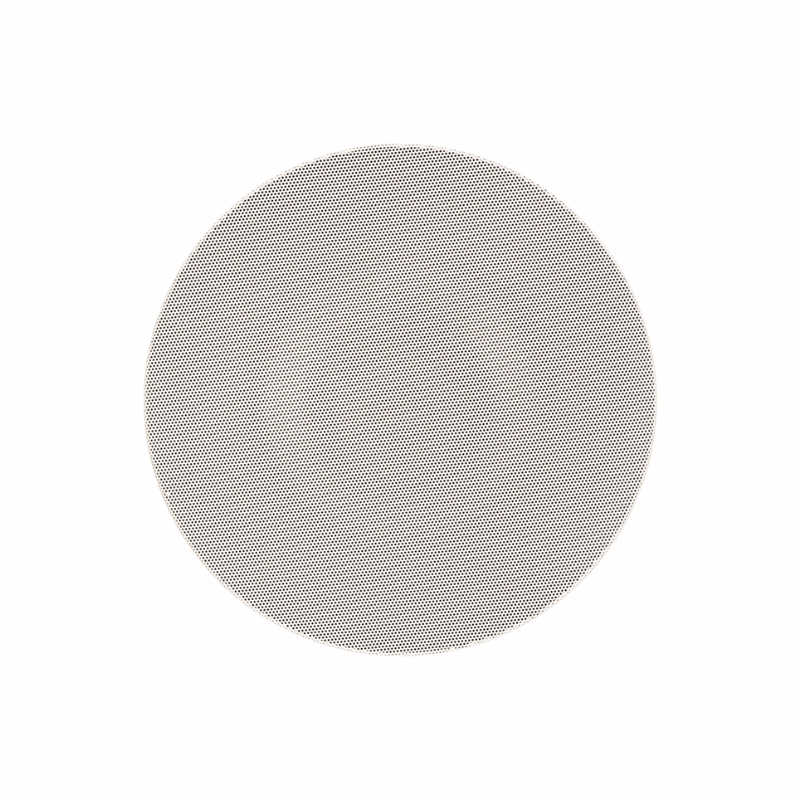

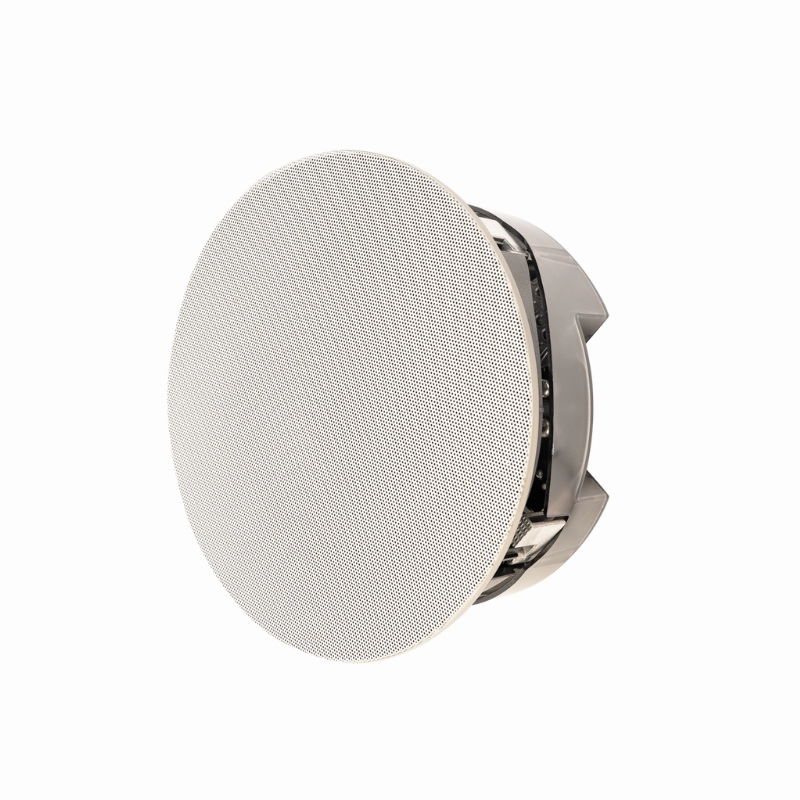

Bezel-Free Micro-Perf Grillesoffer a clean aestetic from room-to-room.
Magnetically attached grilles:neodymium magnets hold grilles firmly in place.
Specifications

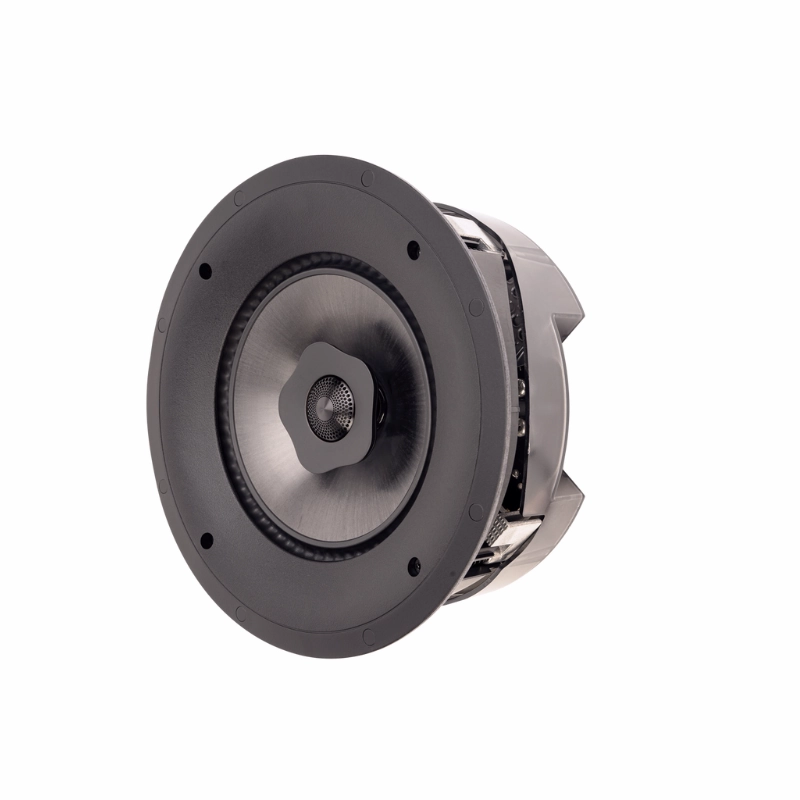

- Design: 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT System, Nylon Reinforced Baffle
- Crossover: 2nd-order electro-acoustic at 2.5 kHz
- High Frequency Driver: 1 (2.5cm) Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens and Reduced Edge Diffraction (RED) Technology
- Frequency Response On-Axis: 3 dB from 64 Hz - 22 kHz
- Frequency Response 30 Off-Axis: 3 dB from 64 Hz - 18 kHz
- Mid/Bass Frequency Driver: 8 (20.3cm) CARBON-X Cone with overmolded Active Ridge Technology (ART) surround, Advanced Shock-Mount System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
- Sensitivity (Room / Anechoic): 92 dB / 88 dB
- Low Frequency Extension: 39 Hz
- Suitable Amplifier Power Range: 15-110 W
- Maximum Input Power: 80 W
- Impedance: Compatible with 8 ohms
- Finishes: White, paintable grille, black speaker
- Cut-Out Dimensions: 9-3/16 (23.4cm) diameter
- Minimum Mounting Depth: 3-7/8 (9.8cm)
- Dimensions HxWxD (Includes Grille): 10-1/4 (diameter) x 4-1/2 (depth) (26.1cm x 11.4cm)
- Weight: 6.4 lbs (2.9 kg)
