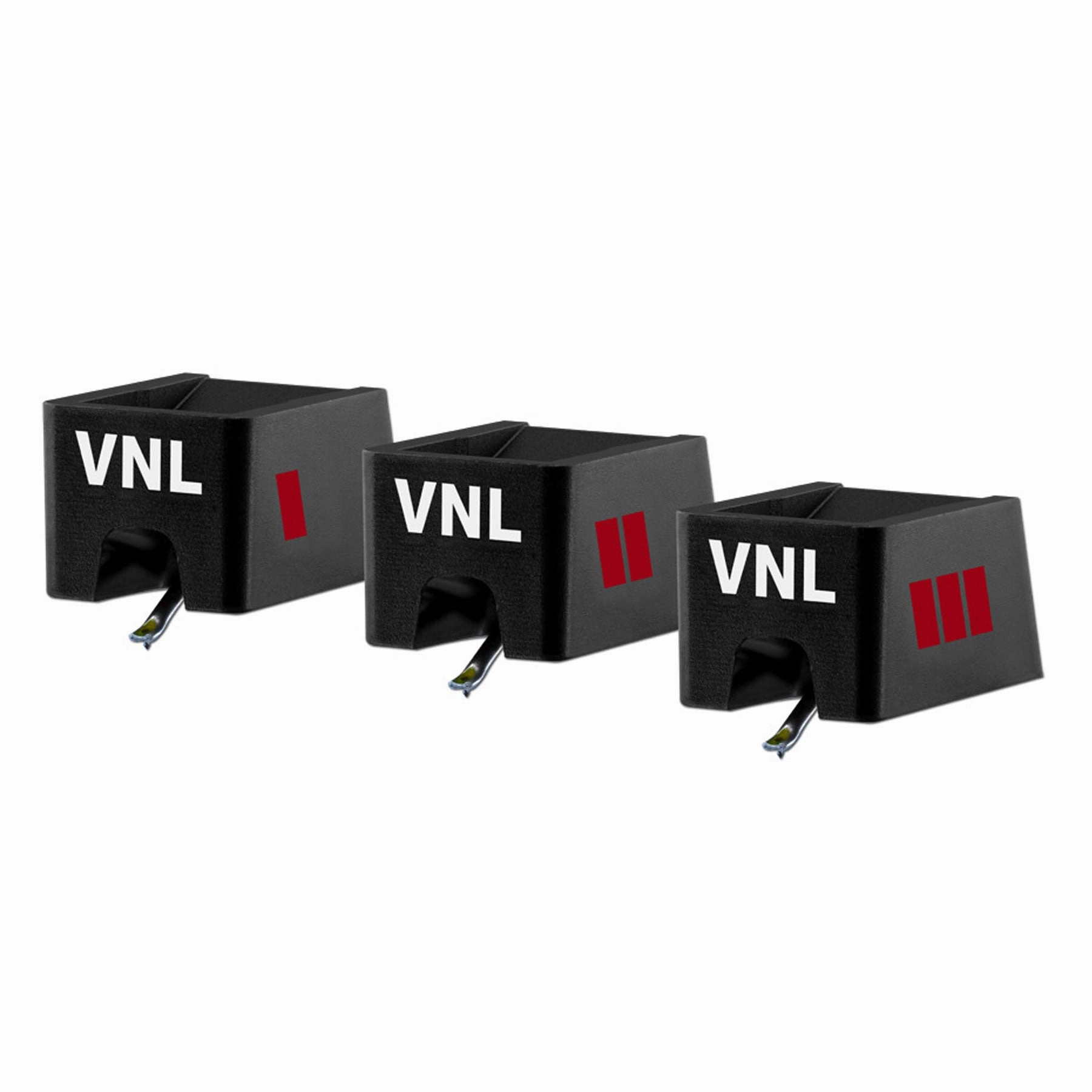

Replacement styli for . The difference between the three options are their respective compliances (springiness/rigidity) and by extent their recommended tracking forces. A stylus' compliance tells you how firm or soft the suspension of a cartridge's stylus assembly is. Stylus compliance and effective mass of the tonearm cartridge together determine the mechanical resonance frequency of the arm/cartridge system. The three options provided by Ortofon enable a DJ to get that "just right" feel for scratching & back-queuing.
"DJs can easily identify which stylus type best suits their individual DJ style and enables their absolute best performance capability." - Ortofon

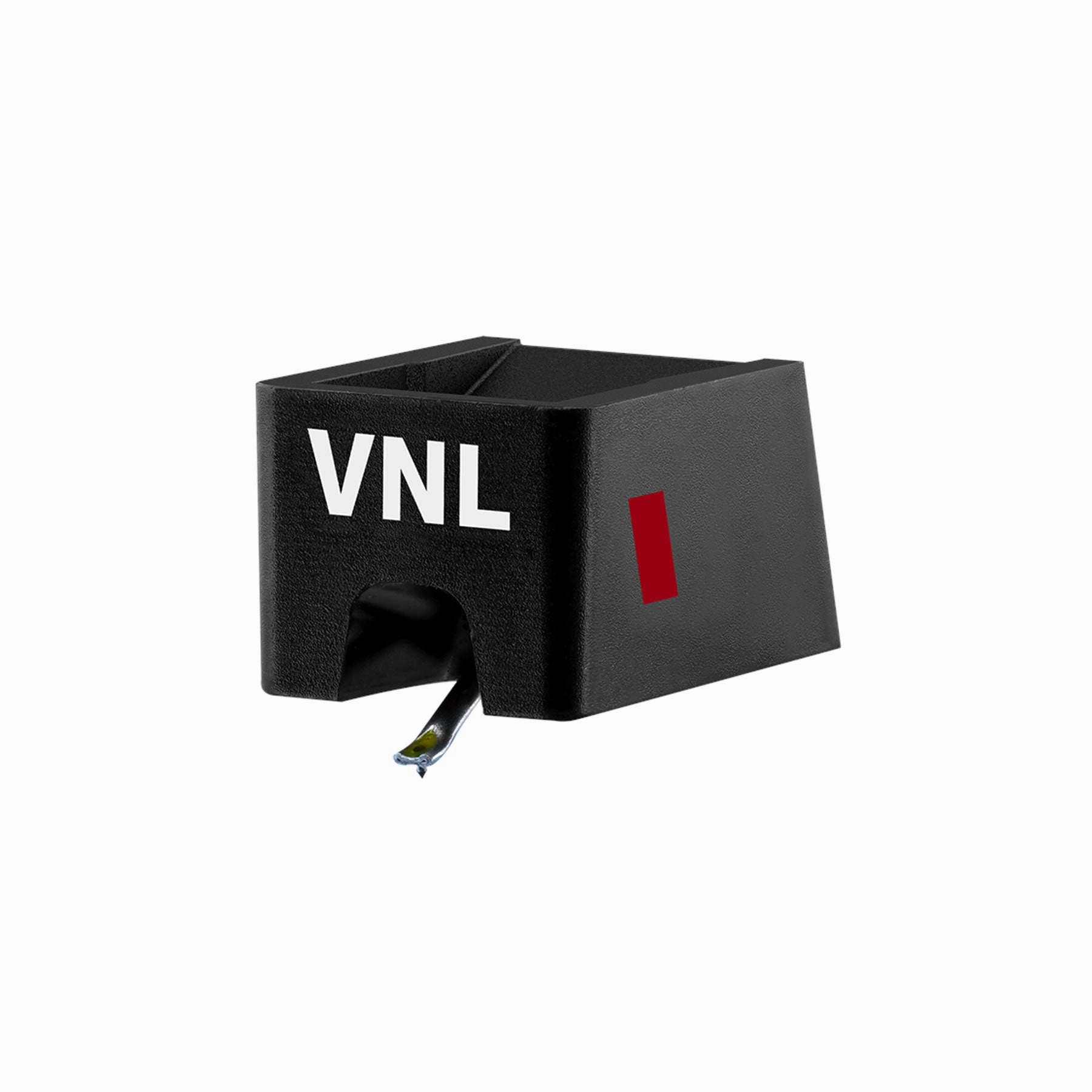

Stylus VNL I - Flexible
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel separation at 1kHz - 20 dB
- Frequency response 20 Hz - 20 kHz -2/ 4 dB
- Tracking ability at 315 Hz at recommended tracking force - 100 m
- Compliance, dynamic lateral - 16 m/mN
- Tracking force range: 3 - 5g
- Recommended tracking force: 4g
Stylus VNL II - Rigid
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel separation at 1kHz - 20 dB
- Frequency response 20 Hz - 20 kHz -2/ 4 dB
- Tracking ability at 315 Hz at recommended tracking force - 90 m
- Compliance, dynamic lateral - 15 m/m N
- Tracking force range: 3 - 5g
- Recommended tracking force: 4g

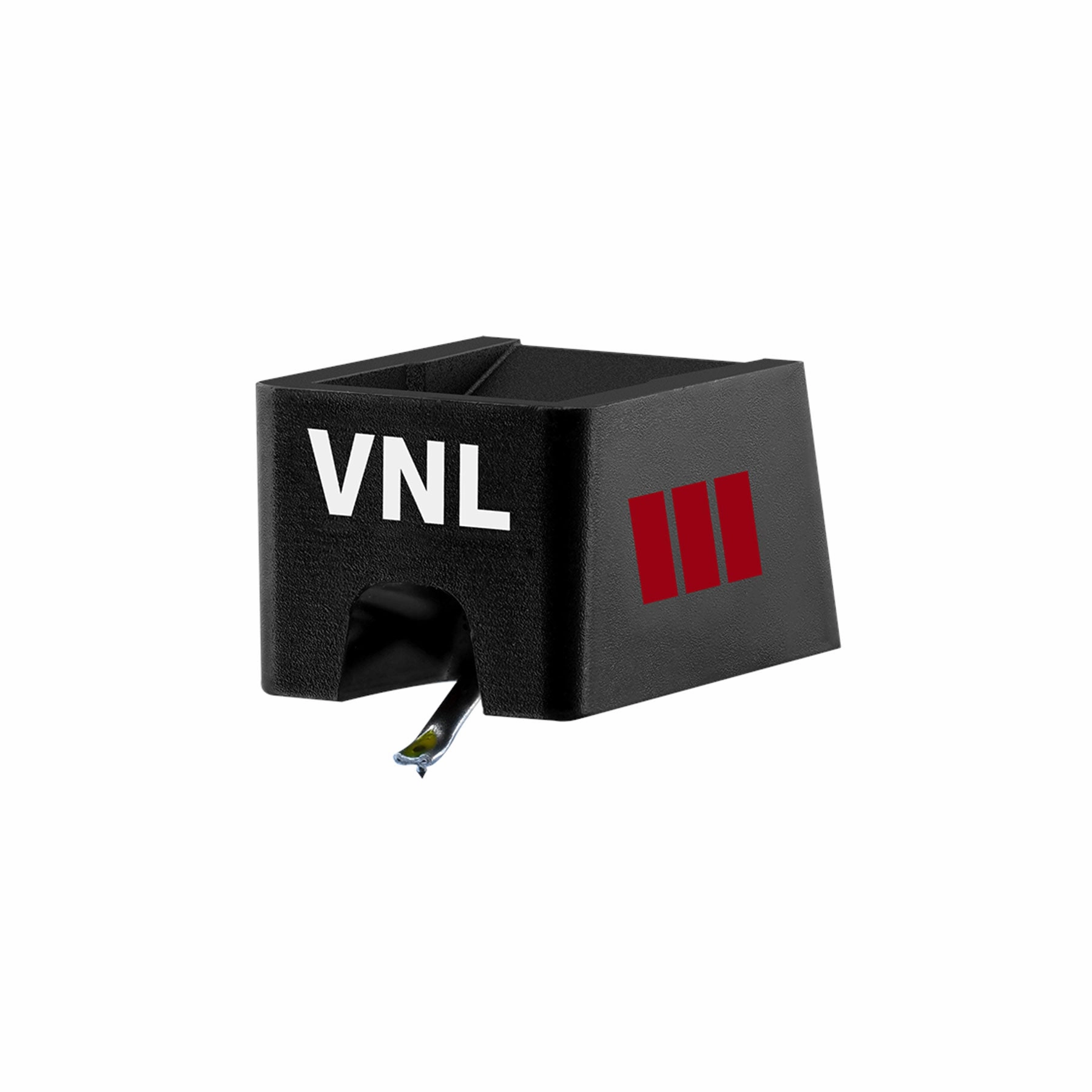

Stylus VNL III - Firm
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel separation at 1kHz - 20 dB
- Frequency response 20 Hz - 20 kHz -2/ 4 dB
- Tracking ability at 315 Hz at recommended tracking force - 90 m
- Compliance, dynamic lateral - 14 m/mN
- Tracking force range: 3 - 5g
- Recommended tracking force: 4g
