replacement stylus for

• Red = Diamond-tipped Elliptical, Blue = Nude Elliptical Diamond, Bronze = Nude Fine Line Diamond, Black & LVB 250 = Nude Shibata Diamond
• all stylii mounted on premium Aluminum cantilevers except for the Black LVB 250 which is mounted on the extremely stiff lightweight Boron cantilever

explore the differences below

SPECS ACROSS THE LINE

• Output voltage at 1 kHz, 5cm/sec: 6mV

• Tracking ability at 315Hz at recommended tracking force: 80 m
• Compliance, dynamic, lateral: 15 m/mN

• Tracking force, recommended: 1.8g
• Internal impedance, DC resistance: 1.27 k
• Recommended load resistance: 47 k
• Internal inductance: 815 mH
• Recommended load capacitance: 150-300 pF

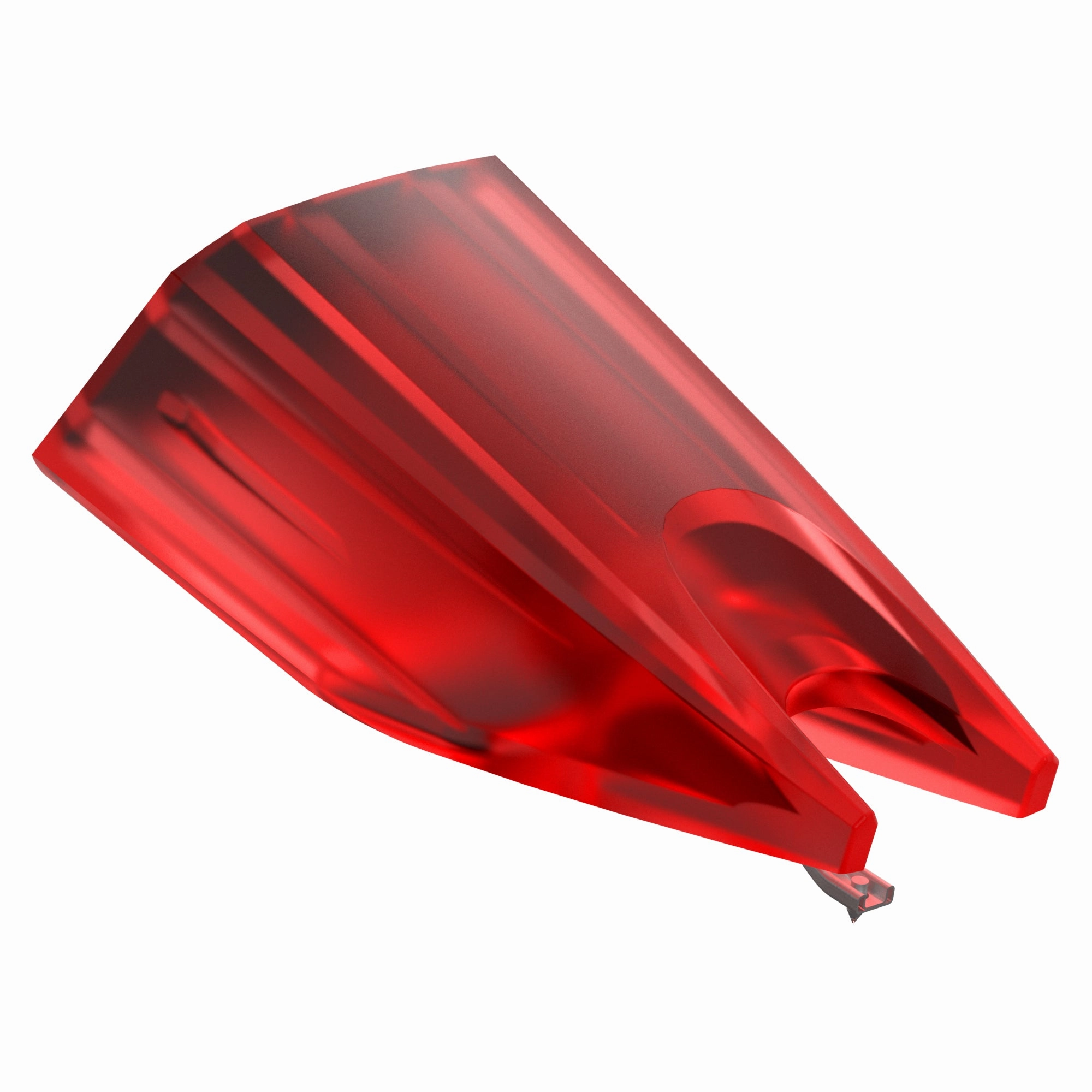

RED

• Channel balance at 1 kHz: 1.5 dB
• Channel seperation at 1 kHz: 22 dB
• Channel seperation at 15 kHz: 15 dB
• Frequency response 20 Hz - 20 kHz: 3 / -1 dB
• Stylus tip radius: r/R 8/18 m

BLUE

• Channel balance at 1 kHz: 1.5 dB
• Channel seperation at 1 kHz: 25 dB
• Channel seperation at 15 kHz: 15 dB
• Frequency response 20 Hz - 20 kHz: 2 / -1 dB
• Stylus tip radius: r/R 8/18 m

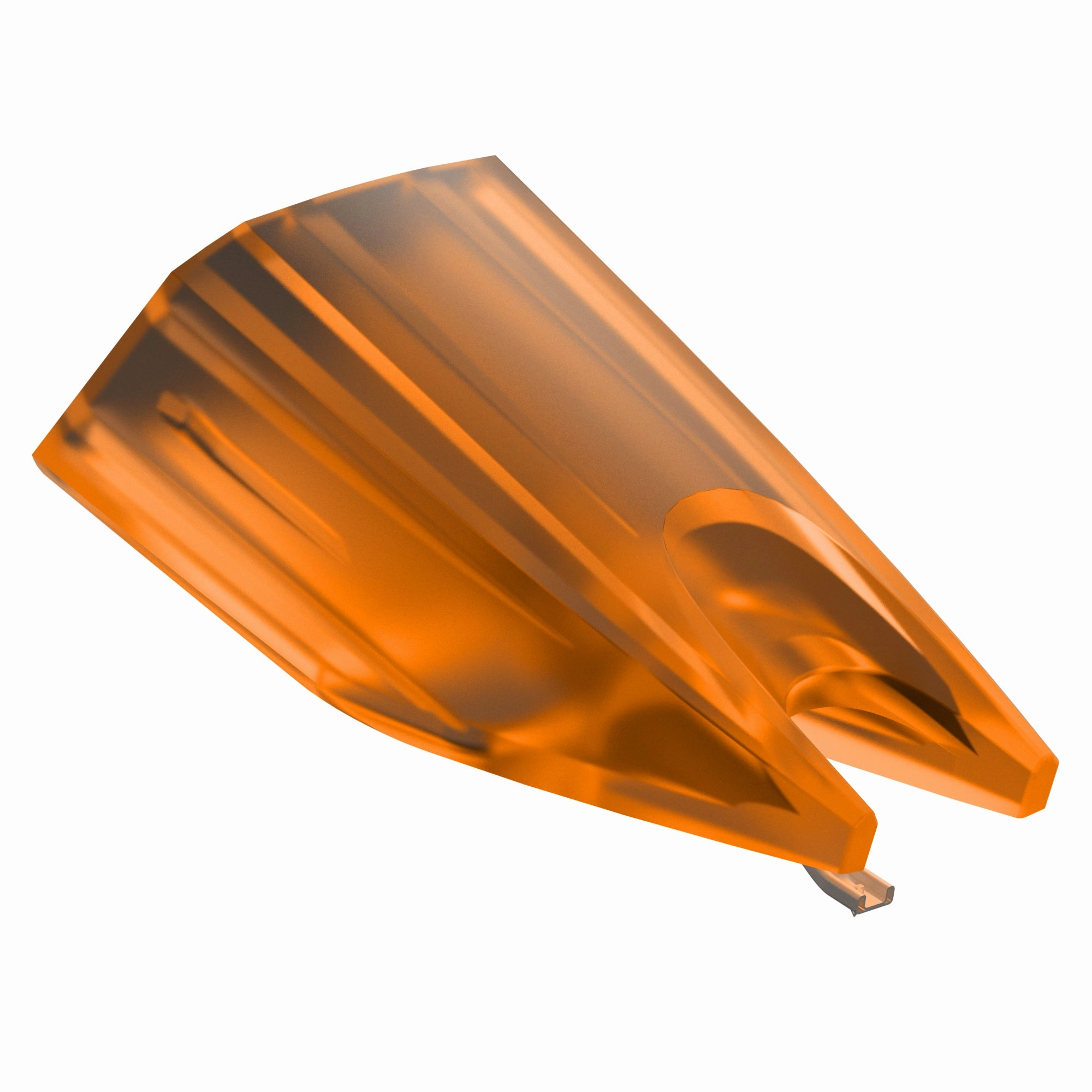

BRONZE

• Channel balance at 1 kHz: 1 dB
• Channel seperation at 1 kHz: 26 dB
• Channel seperation at 15 kHz: 17 dB
• Frequency response 20 Hz - 20 kHz: 2 / 0 dB
• Stylus tip radius: r/R 8/40 m

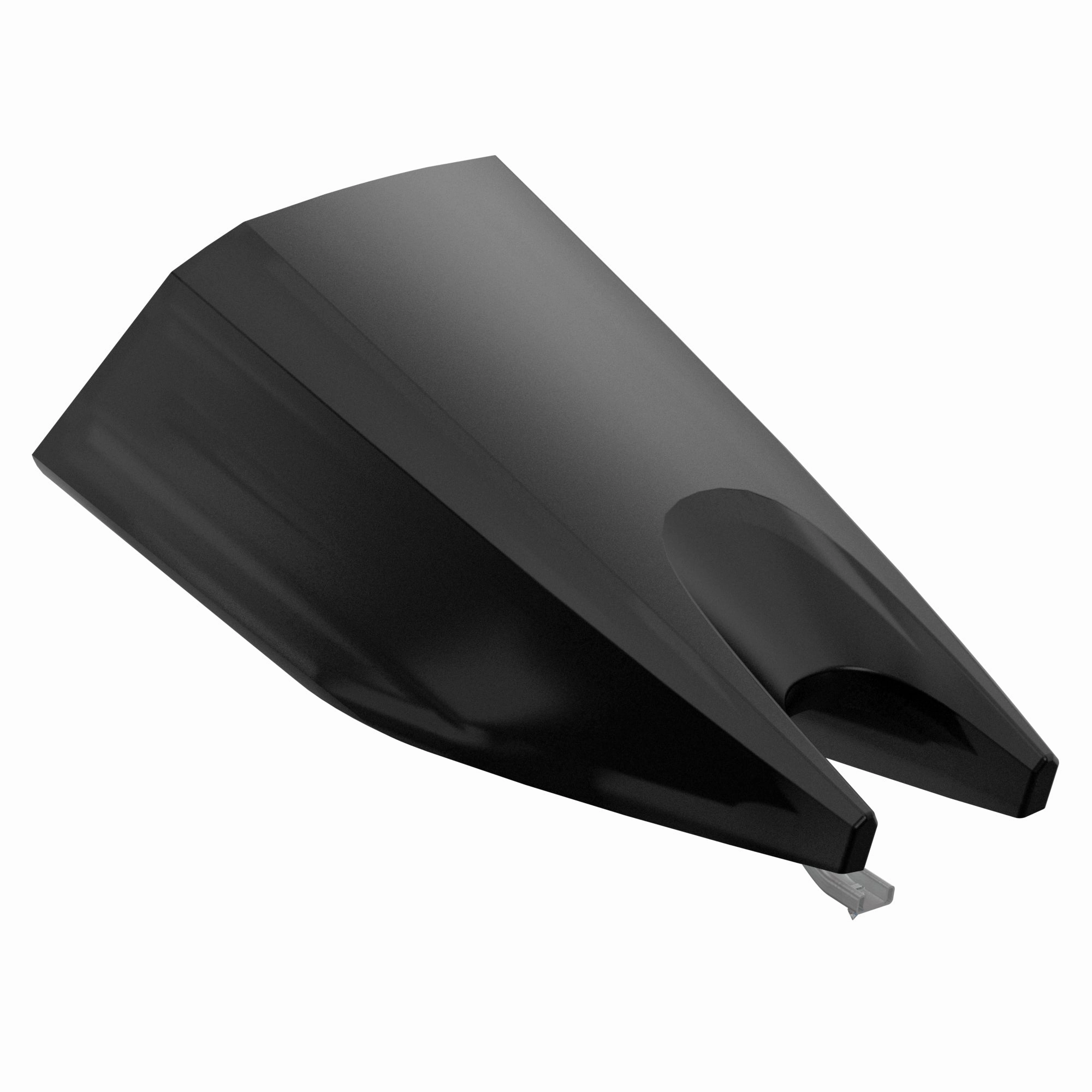

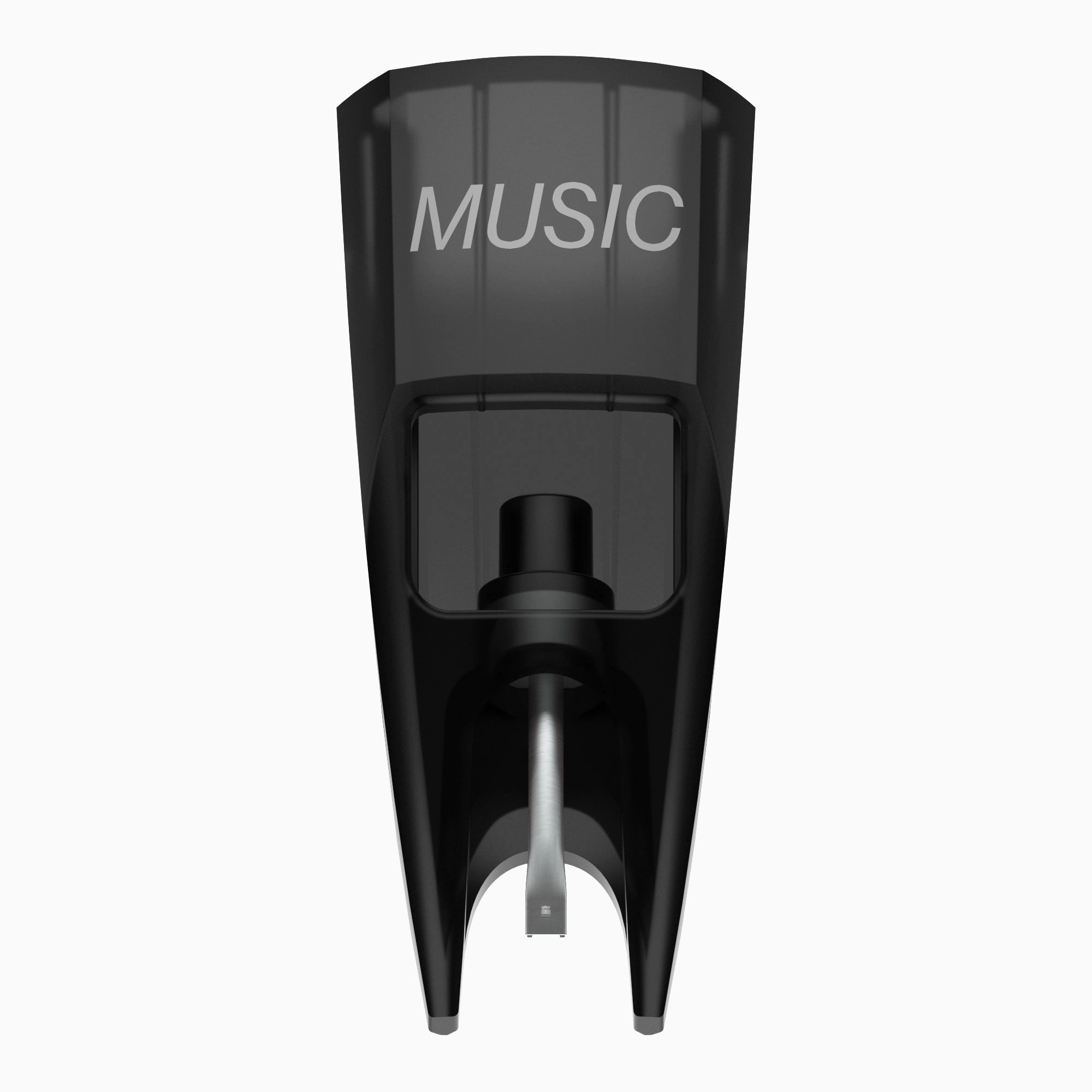

BLACK

• Channel balance at 1 kHz: 1 dB
• Channel seperation at 1 kHz: 26 dB
• Channel seperation at 15 kHz: 18 dB
• Frequency response 20 Hz - 20 kHz: 2 / 0 dB
• Stylus tip radius: r/R 6/50 m

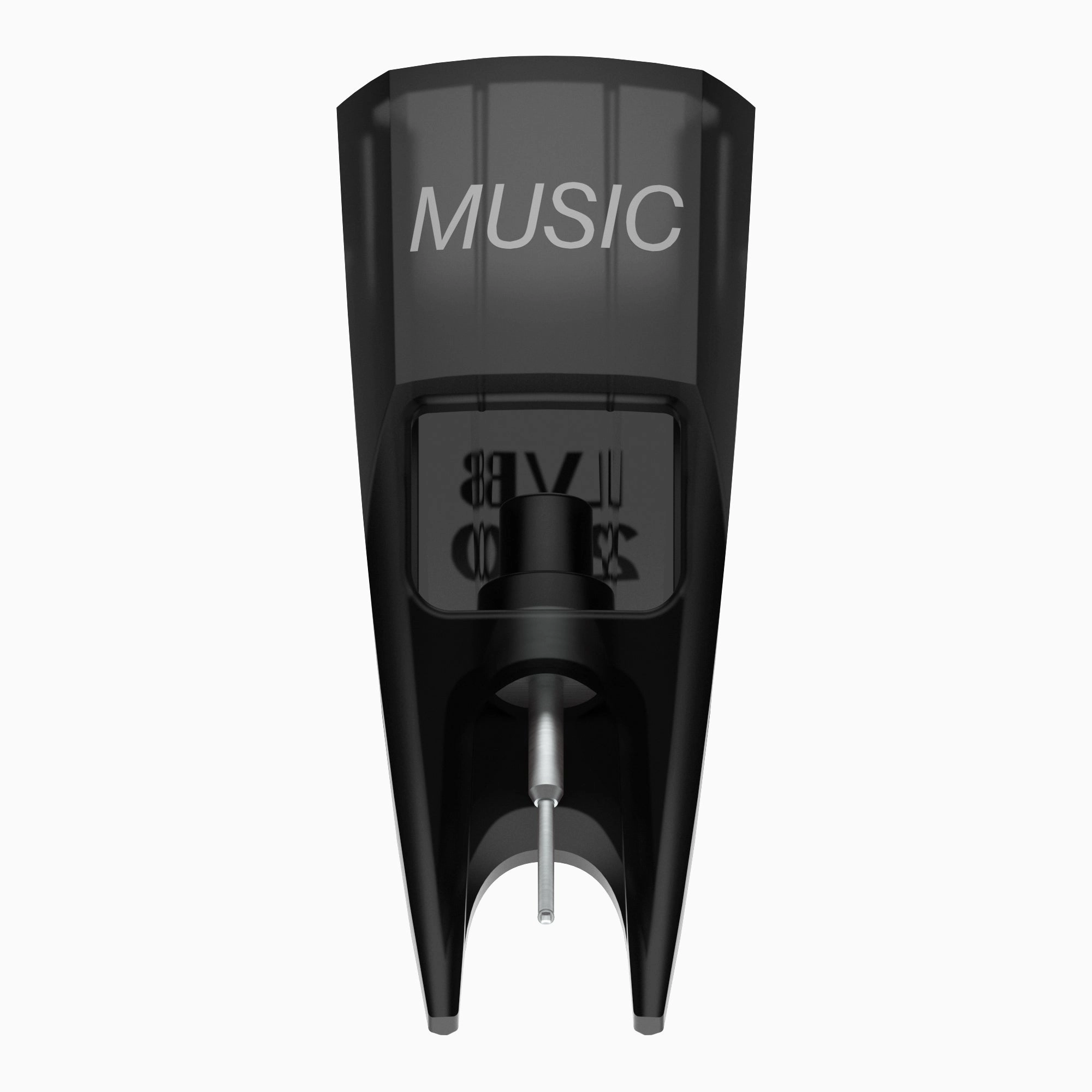

BLACK LVB 250

• Channel balance at 1 kHz: 1 dB
• Channel seperation at 1 kHz: 26 dB
• Channel seperation at 15 kHz: 20 dB
• Frequency response 20 Hz - 20 kHz: 2 / 0 dB
• Stylus tip radius: r/R 6/50 m
