LAB POINTS

• low-mass moving magnet listening cartridge
• provides balanced and distortion-free playback
• sphericalstylus
• fits on most turntables
• not for DJ use

TECH SPECS

• output voltage: 4.5mV
• frequency response: 20 ~ 2sHz /-2dB
• channel balance at 1kHz: 2dB
• channel separation at 1kHz: 20dB
• channel separation at 15kHz: 12dB
• tracking force range: 1.5 ~ 2.0g
• tracking force recommended: 1.75g
• tracking angle: 20 degrees
• weight: 5g

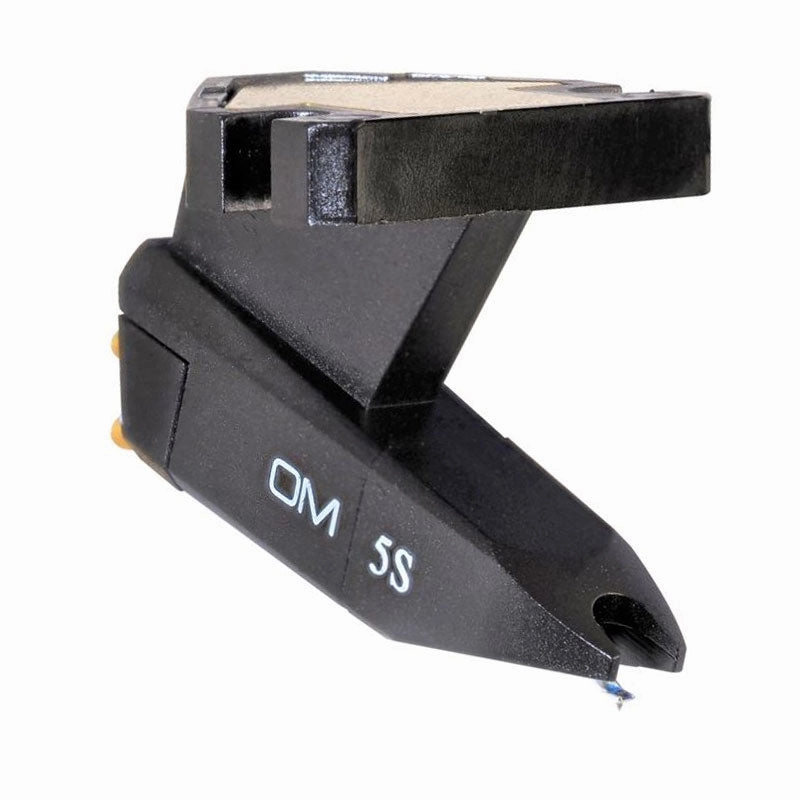

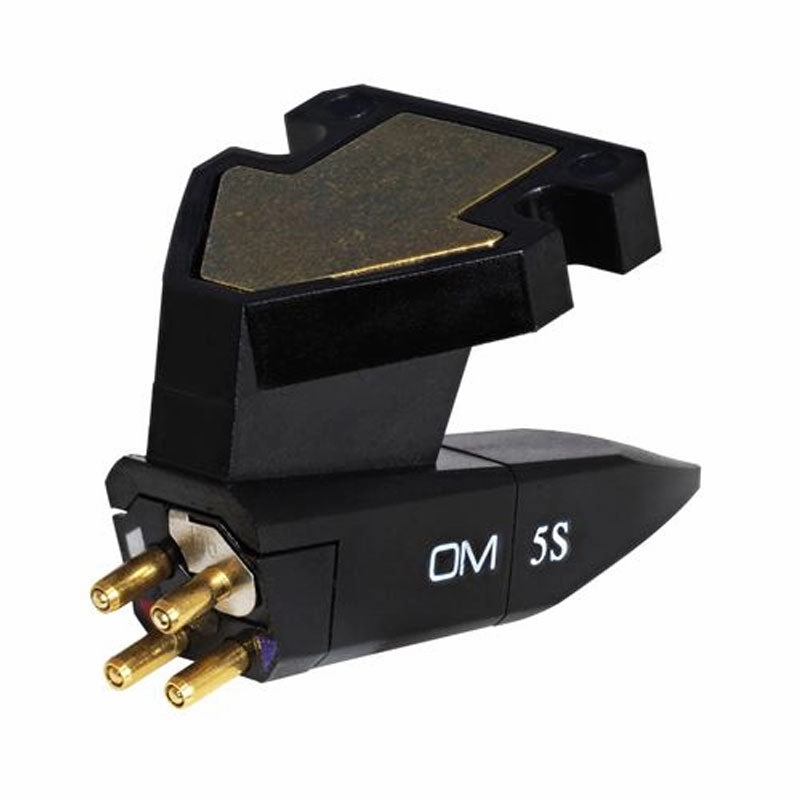

"The OM 5S is a moving magnet cartridge for general purpose application. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g." - Ortofon
