LAB POINTS
- modern classic AM/FM receiver & 80w amplifier
- high-quality,low-impedance amp circuit topology
- 3 listening modes: Stereo, Movie/TV, & Music
- Music Optimizer DSP listening mode reconstructs missing bit dataimproving playback quality - also optimizes Bluetooth streaming playback quality
- treble / bass / vocal controls
- premium build w/ high grade connectors terminals
- 5.2.2-ch Dolby Atmos and DTS:X playback
- BT.2020 Support
- 4 HDMI inputs and 1 output with ARC (Audio Return Channel)
- 2 assignabledigital audio inputs (1 optical 1 coaxial) & 3 assignableanalog audio inputs
- 2 subwoofer pre-outs
- x2 banana-plug x5 lever-typespeaker terminals
- Rear USB power supply terminal (5 V/1 A) for media streaming devices
- 1/4 / 6.35mm front headphone output 1/8" / 3.5mm front mic input
- aluminum front panel
- remote control batteries included

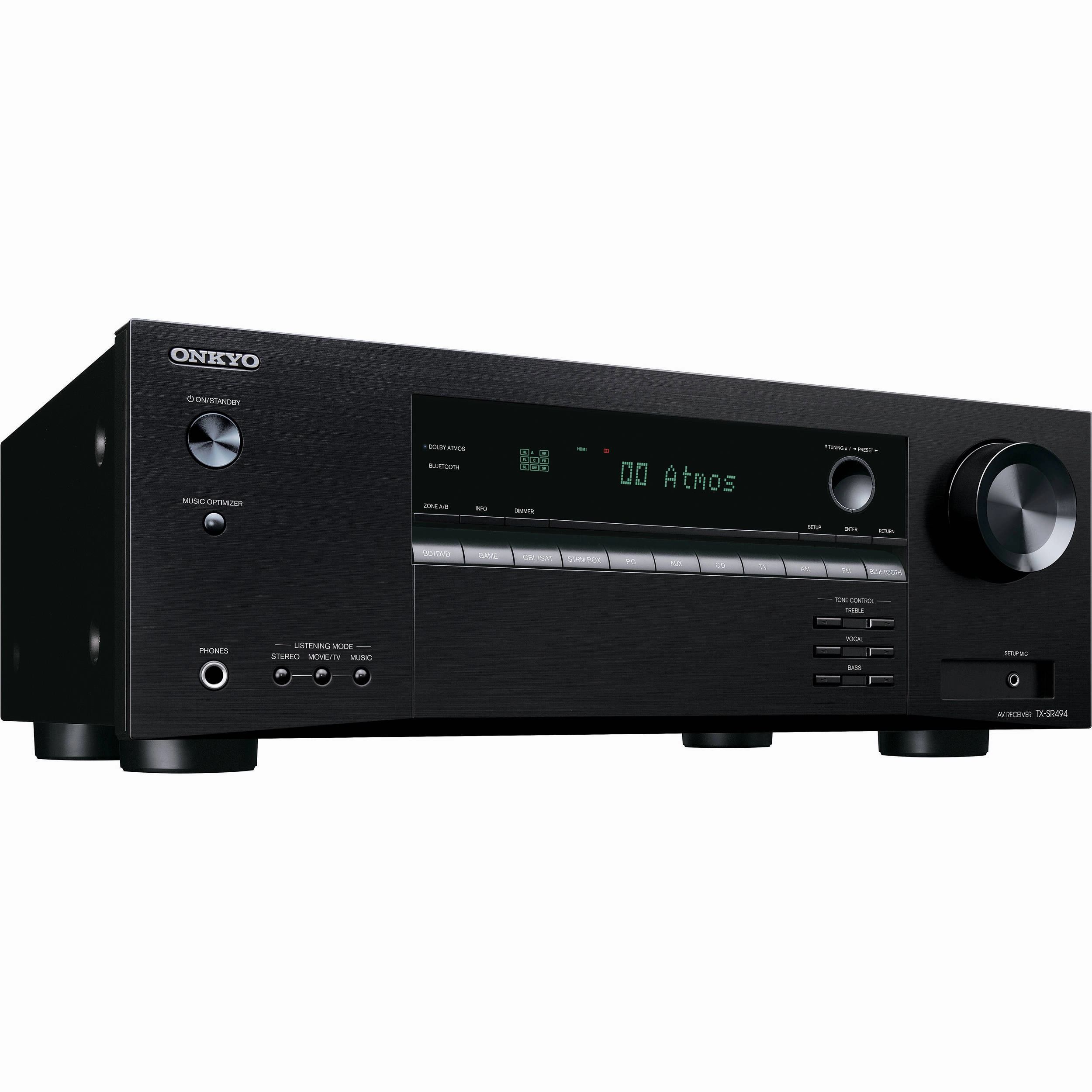

"From easy Bluetooth wireless streaming to the heart-pounding thrills of Dolby Atmos and DTS:X soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits. Dolby Atmos Height Virtualizer or DTS Virtual:X place sound overhead or behind if you dont want height or surround speakers and both Dolby Surround and DTS Neural:X are on board. Rear surrounds, bi-amped front speakers, or Powered Zone B audio are also an option. AccuEQ with subwoofer EQ and AccuReflex for 5.2.2-ch Dolby Atmos-enabled systems clarify sound in any space. As the heart of your home theater, the TX-SR494 has HDMI terminals supporting HDR and 4K/60p video, while the GUI with OSD over HDMI, Zone B pre-/line-out, and Vocal Enhancer function make this receiver a joy to use as well as hear." - Onkyo
TECH SPECS
- Amp Power output (Front L/R / Center / Surround L/R / Height L/R): 160 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) & 80 W/Ch (8 ohms, 20 Hz20 kHz, 0.08% THD, 2 channels driven, FTC)
- Total Harmonic Distortion Noise: 0.08% (20 Hz20 kHz, Half Power)
- Input sensitivity and impedance: 200 mV rms/47 k-ohms
- (Line) Frequency response: 10 Hz100 kHz/ 1 dB, -3 dB (Direct Mode)
- Tone control: 10 dB, 20 Hz (Bass) 10 dB, 20 kHz (Treble)
- Signal-to-noise ratio: 109 dB (Line, IHF-A)
- Speaker impedance: 4 16 ohms
- Tuning frequency range: FM 87.5 MHz107.9 MHz AM 530 kHz1,710 kHz
- FM/AM preset memory: 40 Stations
- General Power supply: AC 120 V~, 60 Hz
- Power consumption: 490 W
- Standby power consumption: 0.1 W
- Dimensions (W x H x D): 17 1/8 x 6 5/16 x 12 15/16 (435 x 160 x 328mm)
- Weight: 18.1 lbs. / 8.2kg
