LAB POINTS
- high quality phono preampfor MM (Moving Magnet) or high output MC (Moving Coil) cartridges

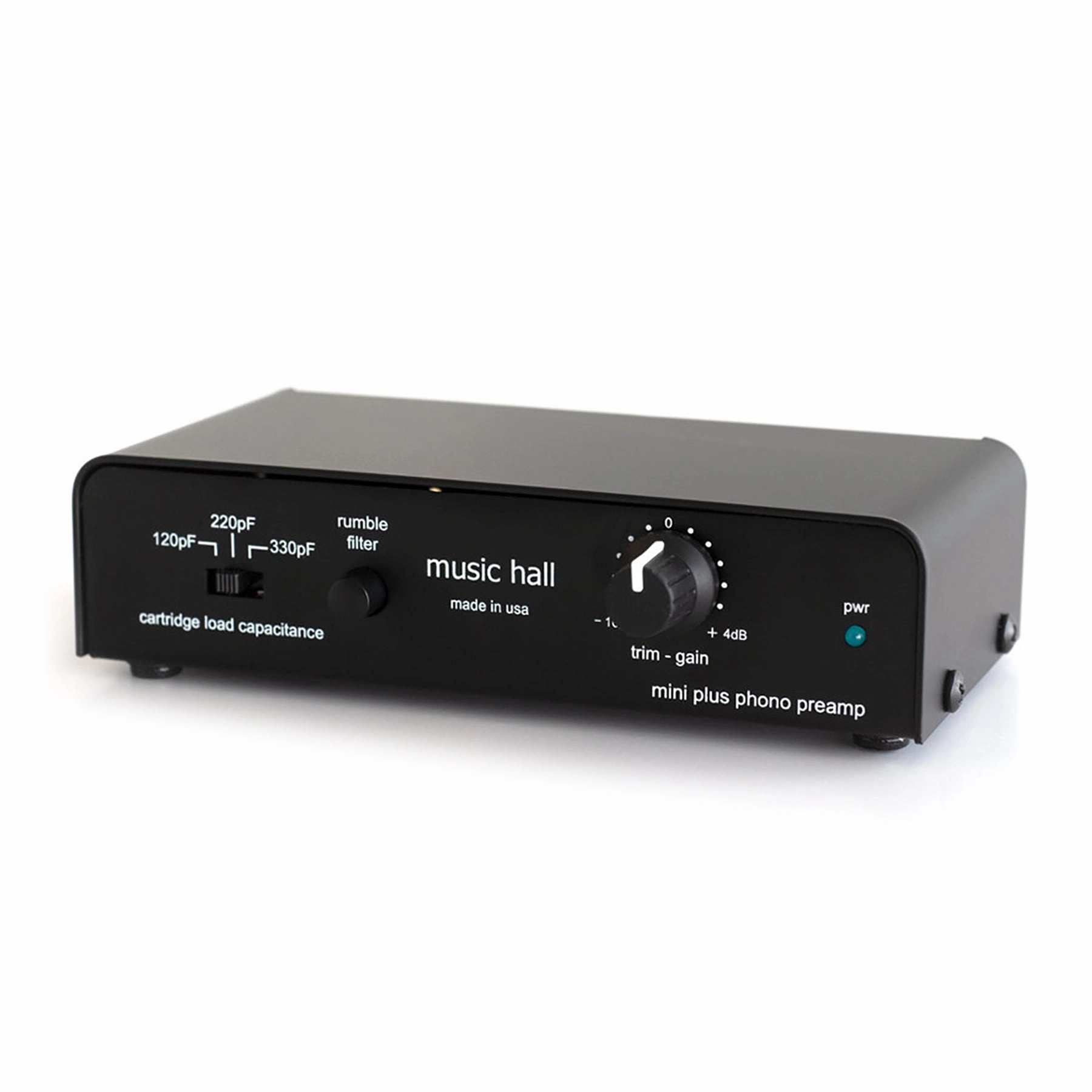

- selectable cartridge load capacitance allows subtle soundoptimizationfor your MM cartridge
- ultra quiet operation
- rotarytrim/gaincontrol on front side rumble filter for cuttingvery low frequencies (below 20 Hz)
- high grade headphone amp w/ independent rear headphone/line output (3.5mm)

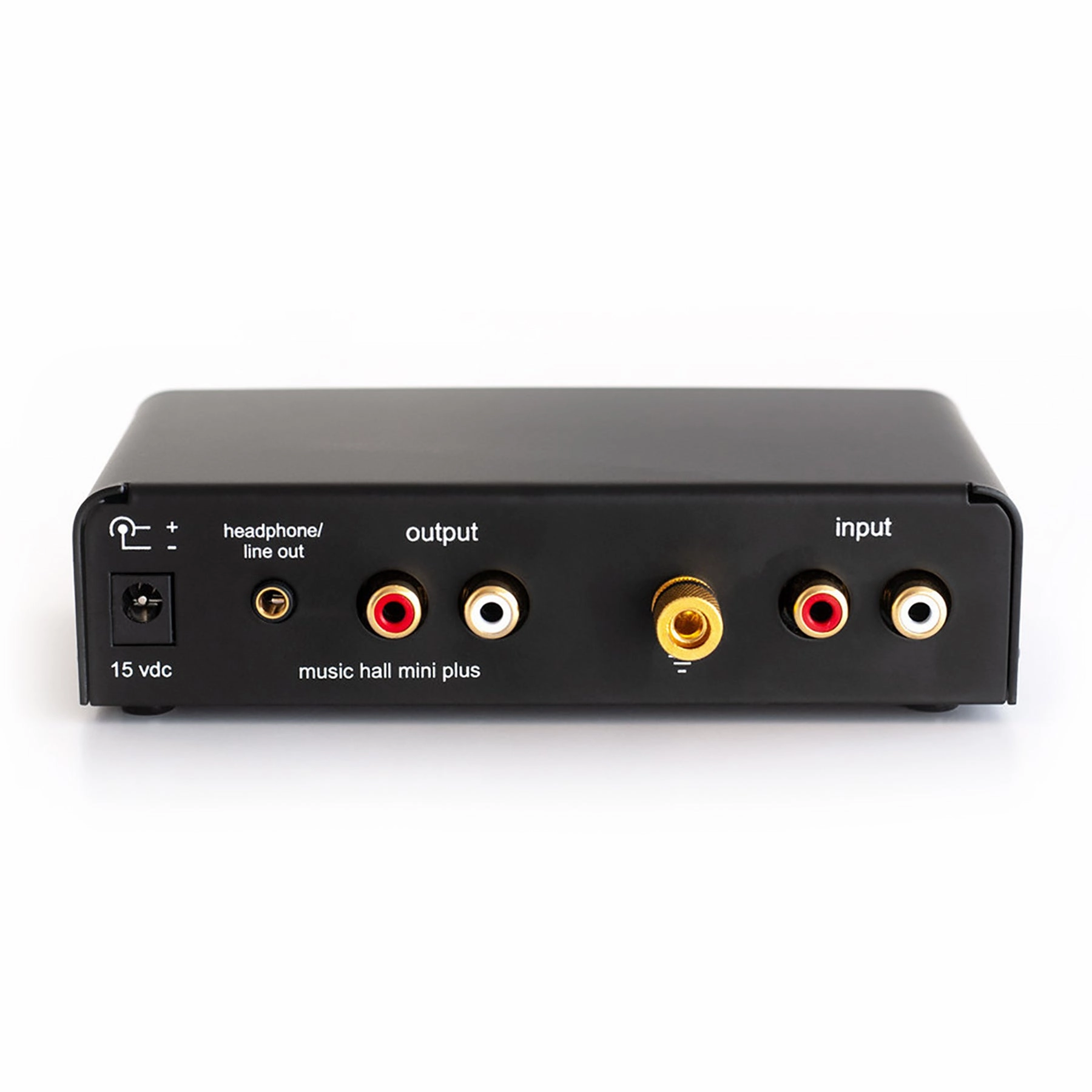

- gold-plated RCA inputs and outputs, and grounding connection
- metal casing w/ vibration damping feet
- madein the USA
"The music hall mini plus phono pre-amp is a perfect solution for attaching a turntable to today's audio equipment. It's a low-noise, high quality phono pre-amp designed to work with moving-magnet and high-output moving-coil cartridges. The chassis helps ward off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable." -Music Hall
KEY FEATURES
- input: RCA 1/8" TRS stereo
- gain:41.51 dB gain @ 1kHz at 0 setting /31.64 dB gain @ -10 setting /45.66 dB gain @ 4 setting
- input Impedance: 47k
- output impedance:32 ohms headphone / 470 ohms RCA
- frequency response: 3Hz to 36kHz
- THD: .005% @ 1KHz
- dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
- weight: 2 lbs / 0.9g
COMES WITH
- power supply
