W1M

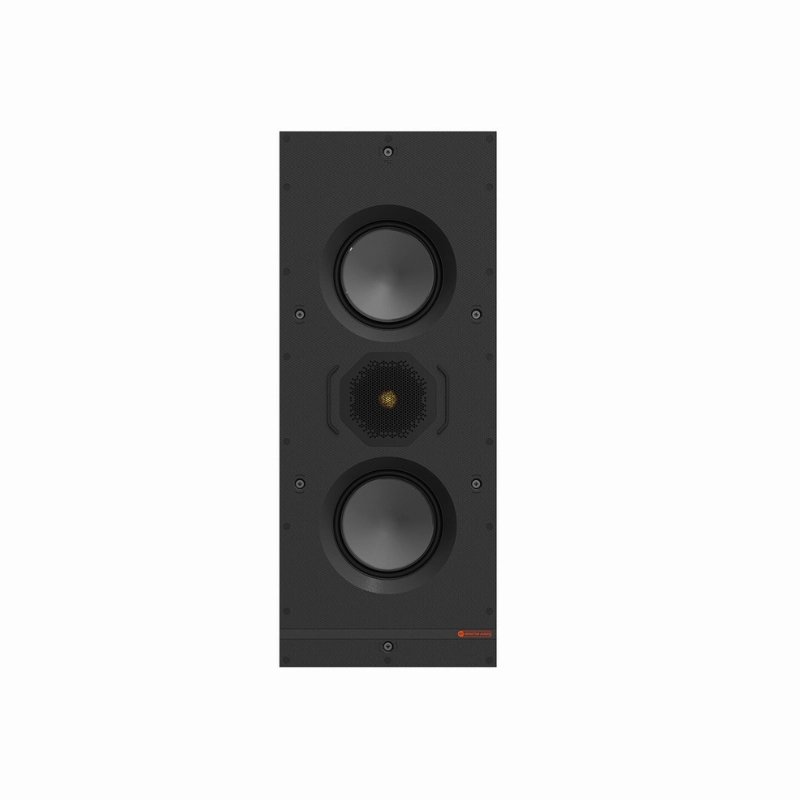

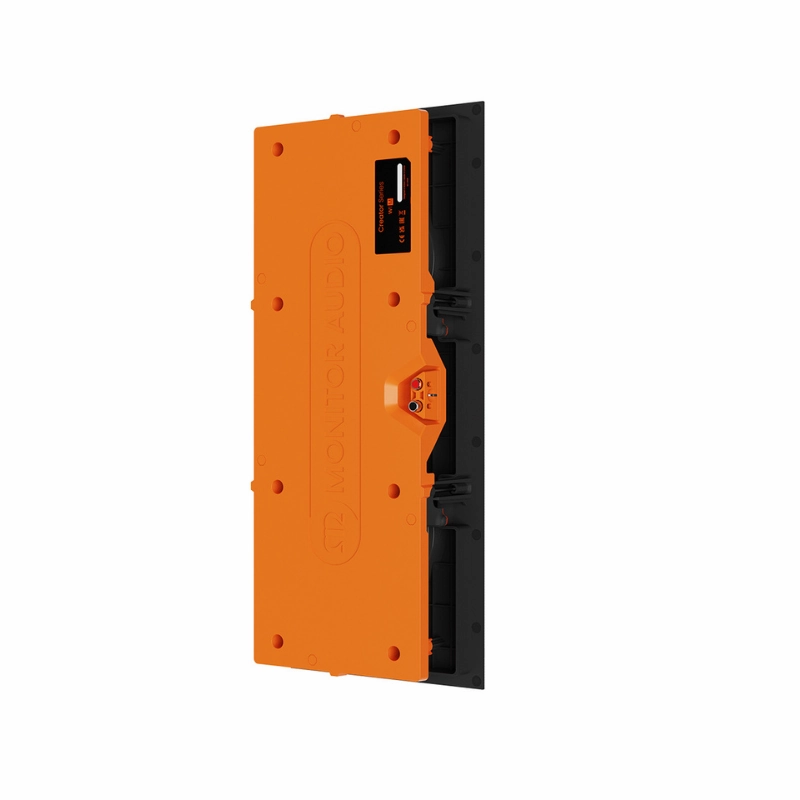

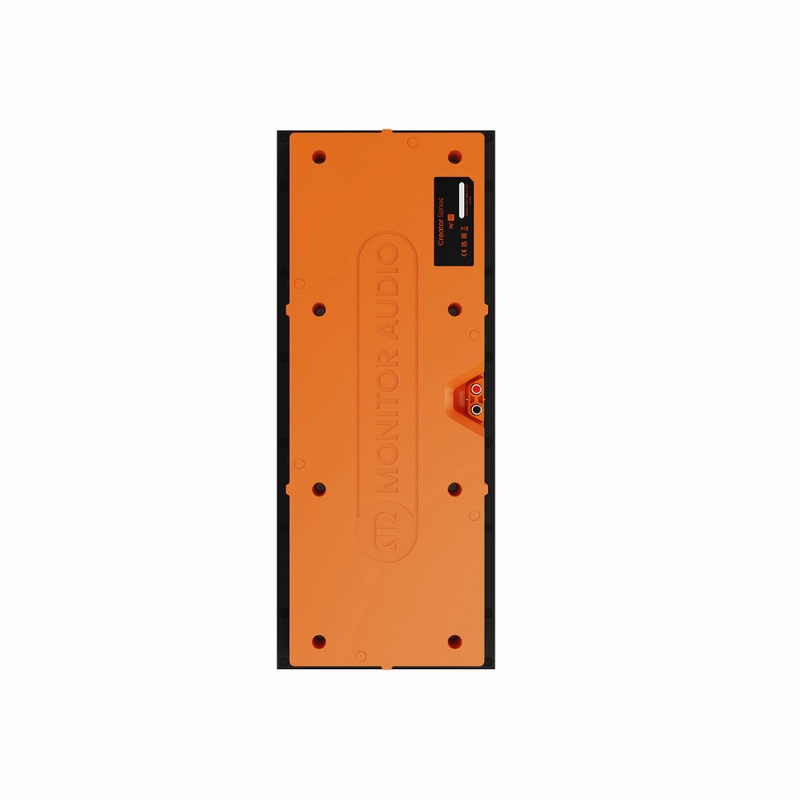

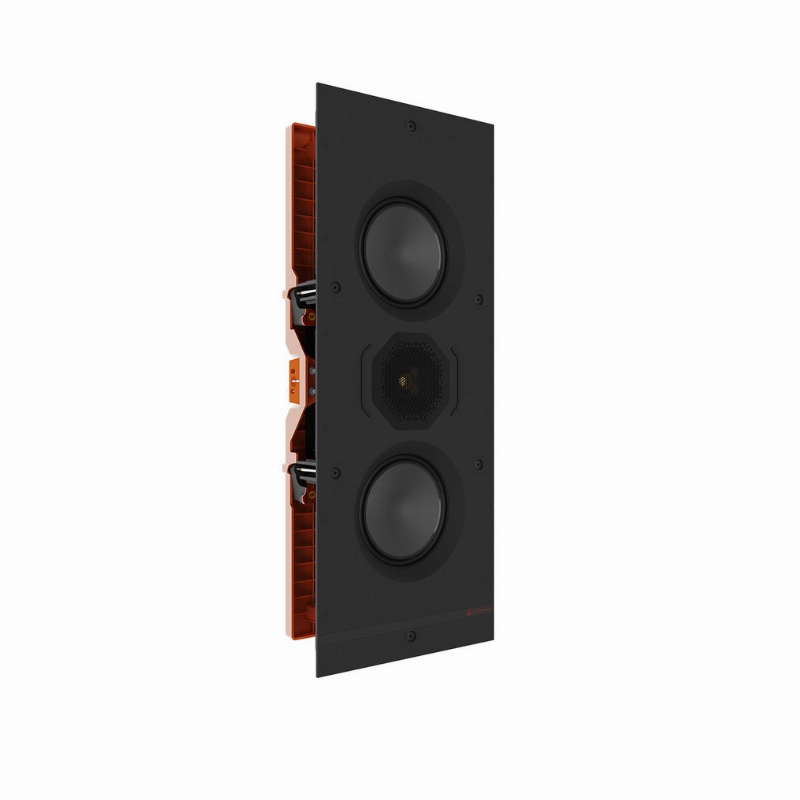

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 527 x 198mm and revolutionary patented Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1"(25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
System Format: 2Way
Channels: 1
Frequency Response, Installed (-6dB): 40 Hz 30 kHz
Nominal Impedance: 6 ohm
Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 15 kHz
Sensitivity (2.83Vrms@1m, Installed): 87 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 113 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 30 110 W
Drive Unit Complement:
- 2 x 5" (127 mm) C-CAM mid-bass driver
- 1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency: LF/HF: 2.75 kHz
Mounting Depth: 85 mm (33/8")
Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each): 3.4 kg (7 lb 8 oz)
Pre-Construction Bracket: WM-B
Cabinet Finish: Matt black & Orange
Sold As: Single Unit
