C3L

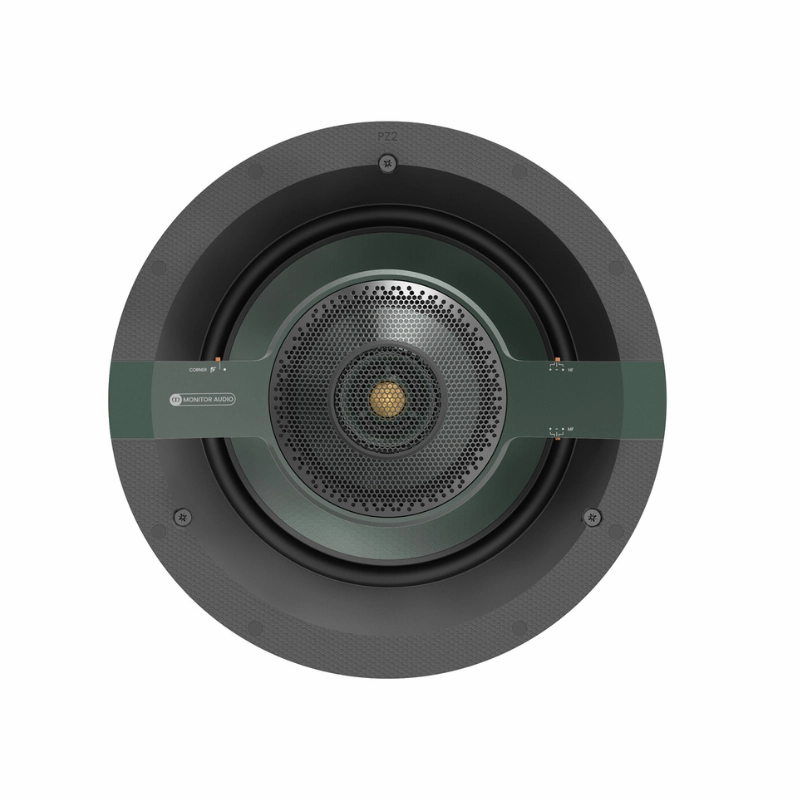

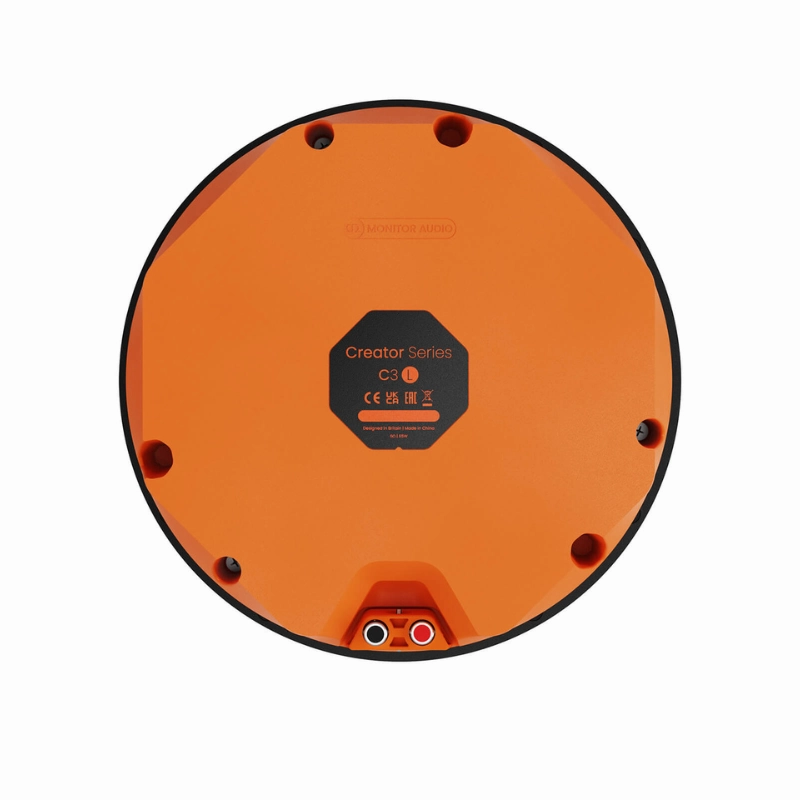

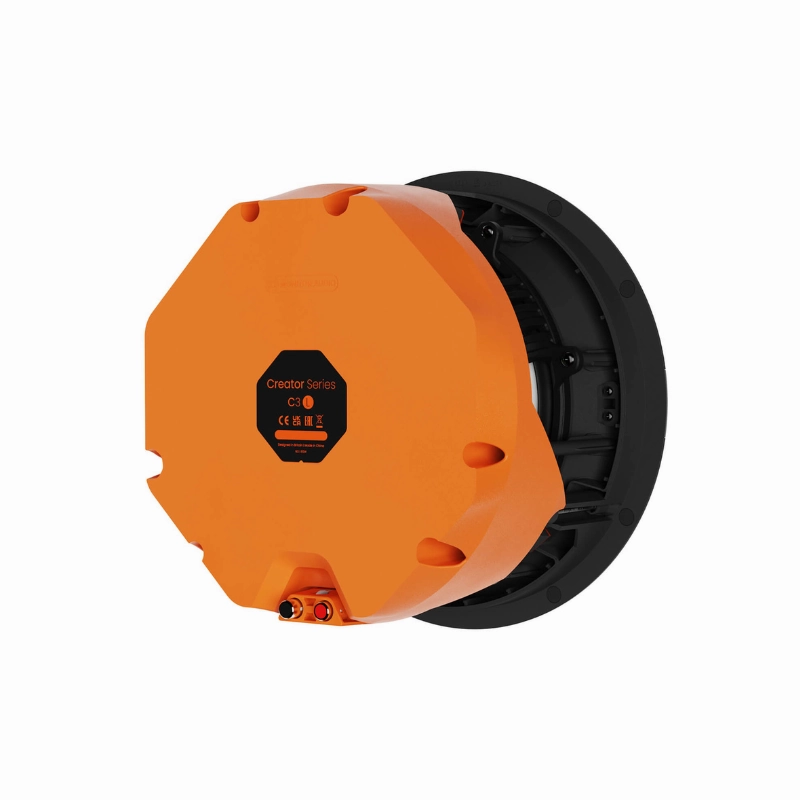

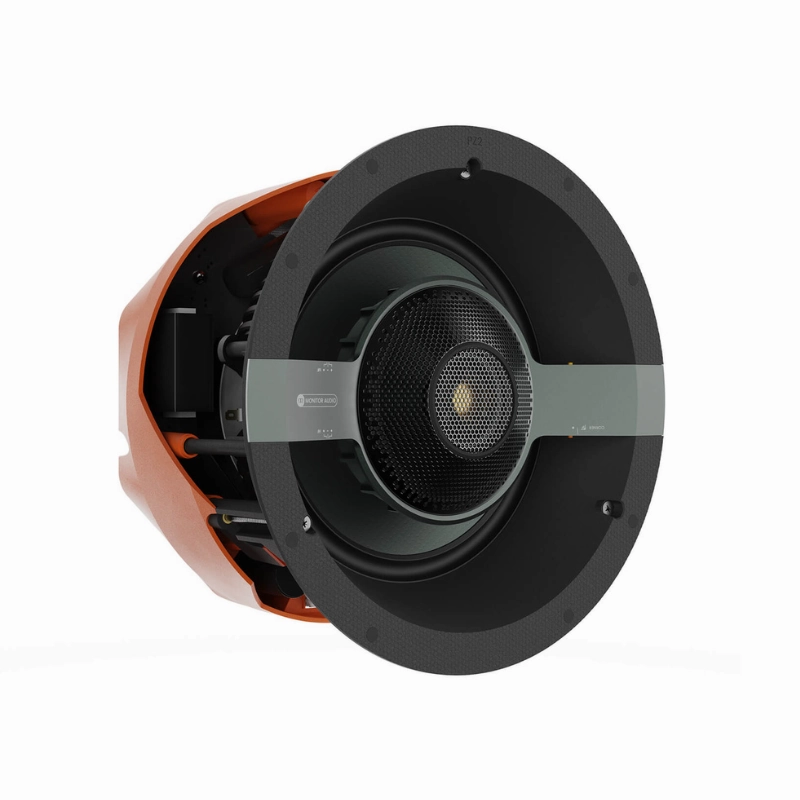

This large Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut out diameter of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- Mid-frequency mid-pod array
- 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II midrange driver
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
System Format: 3Way
Channels: 1
Frequency Response, Installed (-6dB): 45 Hz 35 kHz
Nominal Impedance: 6 ohm
Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed): 89 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 225 W
Drive Unit Complement:
- 1 x 9" (229 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II midrange driver
- 1 x 1" (25 mm) IDC II tweeter
Crossover Frequency:
- LF/MF: 700 Hz
- MF/HF: 3.5 kHz
Mounting Depth: 157 mm (63/16")
Cut-Out Hole Diameter: 248 mm (93/4")
External Dimensions (Including Grille - H x W x D): 278 x 278 x 161 mm (1015/16 x 1015/16 x 65/16")
Weight (each): 5 kg (11 lb)
Pre-Construction Bracket: CL-B
Cabinet Finish: Matt black & Orange & Green
Sold As: Single Unit
Switches:
- Corner Switch: On/Off
- HF Switch: - /0/
- MF Switch: - /0/
