Technology
Dual 4" C-CAM mid-range drivers featuring underhung voice coil
25 mm (1") C-CAM Gold Dome tweeter

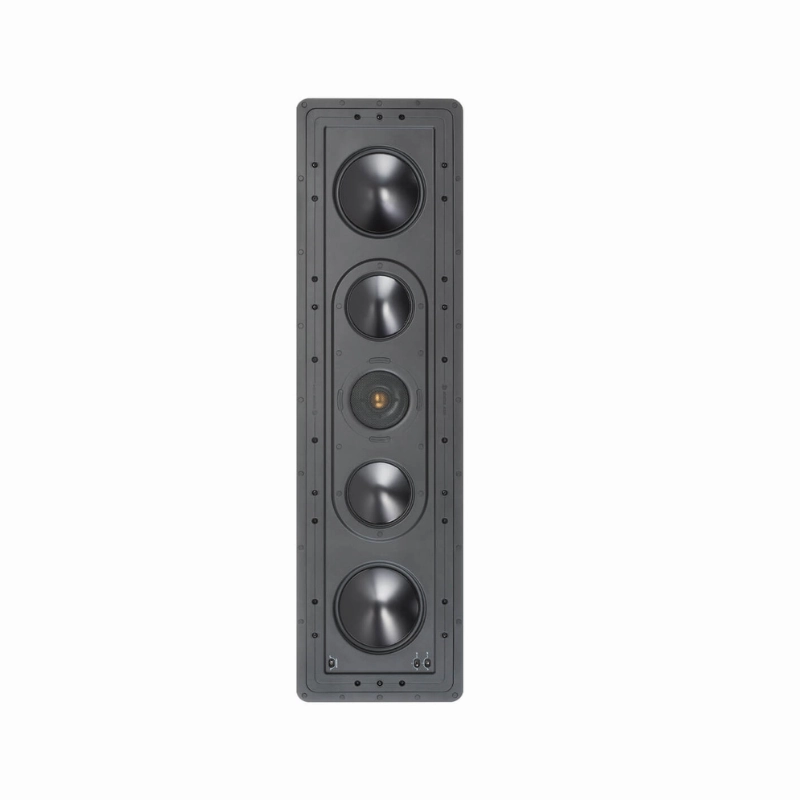

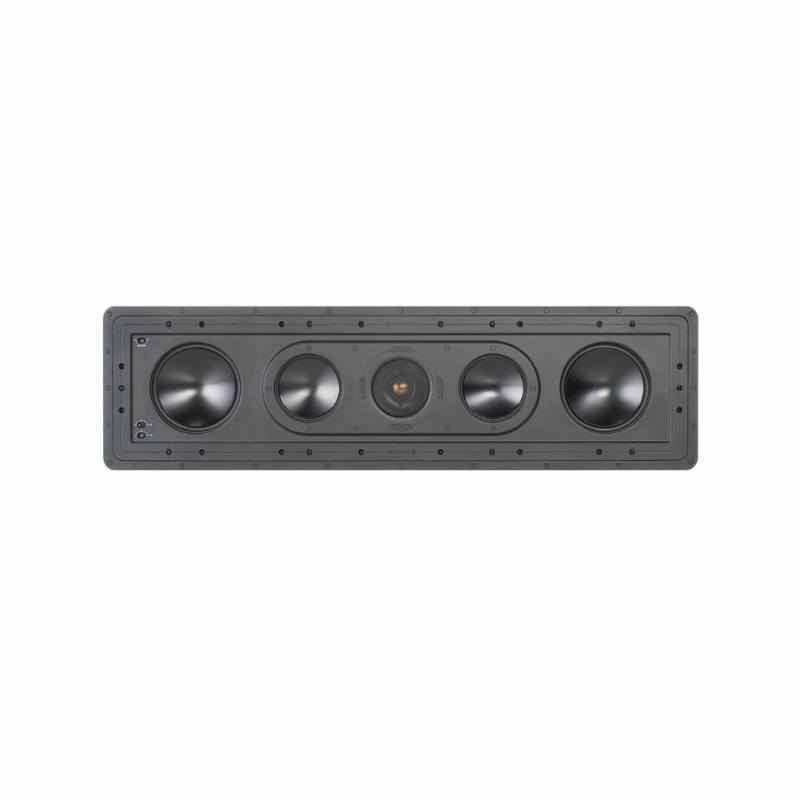

Portrait or landscape orientation

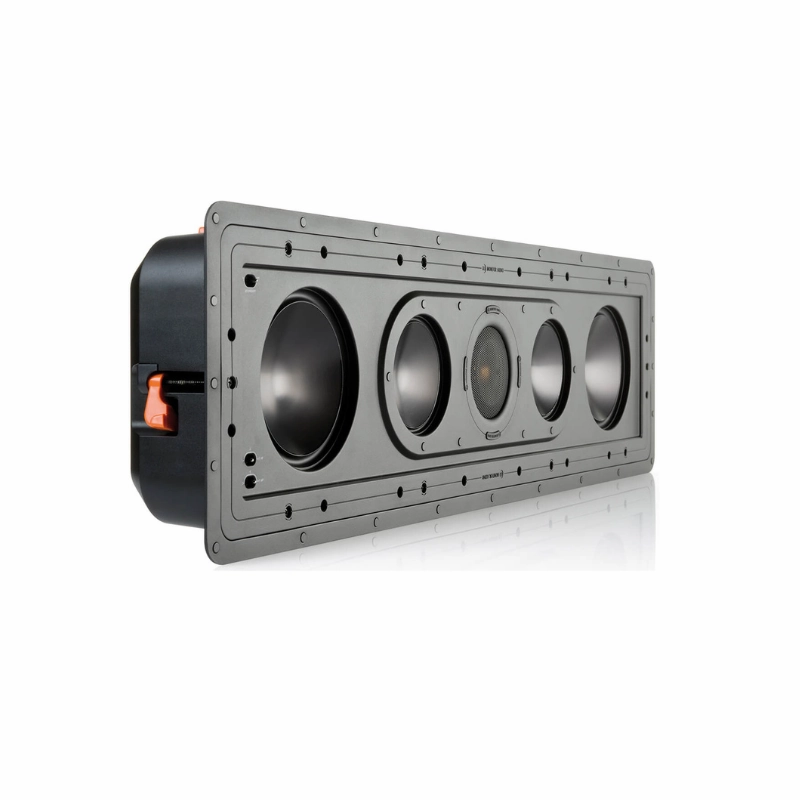

Integrated back-box to provide rear sound isolation resulting in controlled performance
Cast Polymer enclosure designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling
Three-way design in a symmetrical B-M-T-M-B configuration
High-end crossover design featuring low loss inductors and audiophile grade Polypropylene capacitors

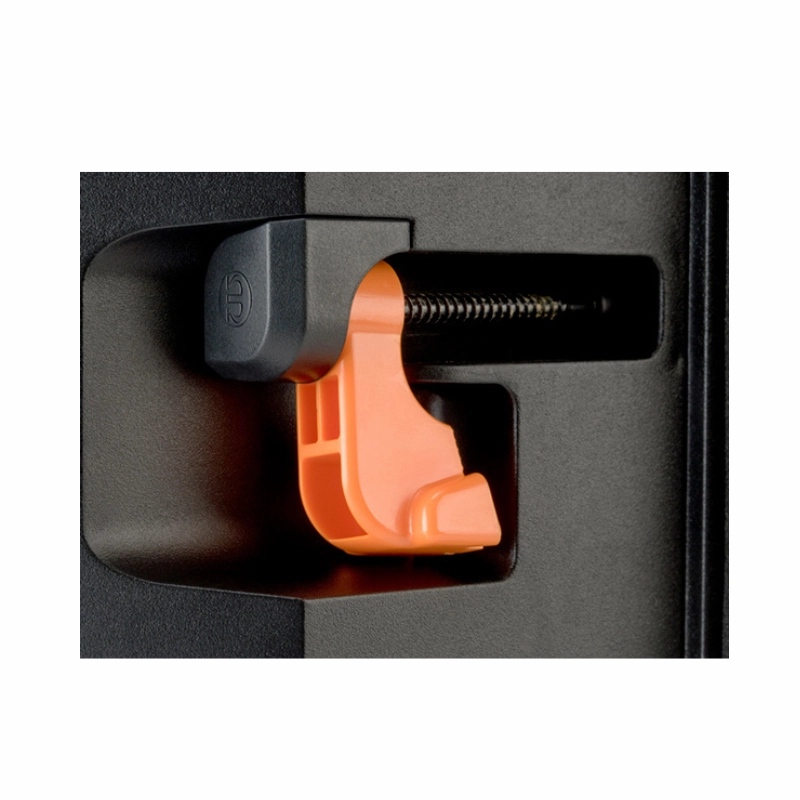

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz 30 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 150 W

Crossover Frequency:

• L.F: 500 Hz @ 12 dB/Octave
• M.F: 500 Hz @ 12 dB/Octave, 3 kHz @ 18 dB/Octave
• H.F: 3 kHz @ 18 dB/Octave

Drive Unit Complement:

• 2 x 6.5" C-CAM Bass drivers
• 2 x 4" C-CAM Mid-range drivers
• 1 x 25 mm (1") C-CAM Gold Dome tweeter

Adjustment Controls:

• Boundary Compensation (On/Off)
• MF Level: 1/0/-1 (dB)
• HF Level: 1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm (35 3/4 x 10 1/8")

Overall Depth (Including Grille): 102 mm (4")

Cut-Out Dimensions: 880 x 230 mm (34 21/32 x 9")

Mounting Depth: 96 mm (3 3/4")

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure (RoHS2 Compliant)

Weight: 11.98 kg (26 lb 6 oz)

Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)

Sold As: Single Unit
