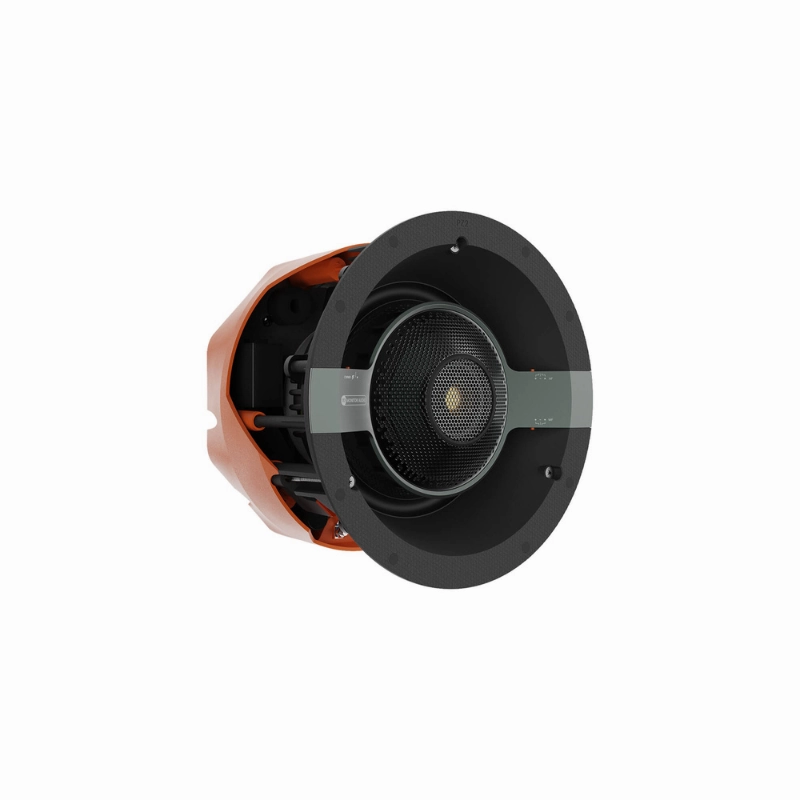

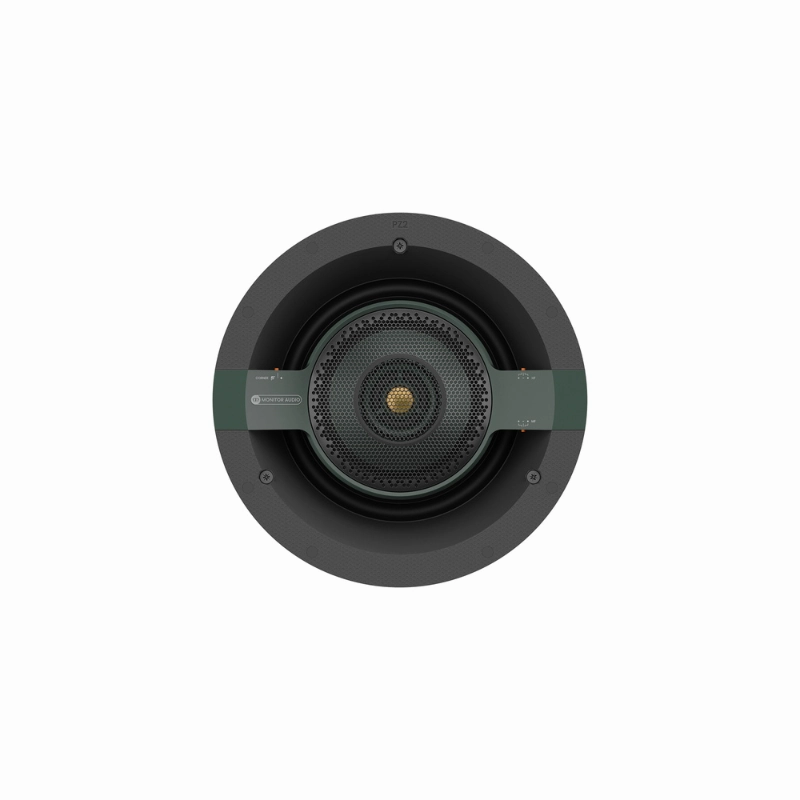

This high-performance, medium Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audios premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cut out diameter of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square or premium grille can be used with this model.
Key Features
Ideal for installations where high-performance acoustics are desired
Three-way design
Mid-frequency mid-pod array
1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
1 x 7" (178 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitment
System Format
3Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
87 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
120 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
45 180 W
Drive Unit Complement
1 x 7" (178 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter
Crossover Frequency
LF/MF: 800 Hz
MF/HF: 3.5 kHz
Mounting Depth
148 mm (513/16")
Cut-Out Hole Diameter
212 mm (83/8")
External Dimensions (Including Grille (H x W x D))
242 x 242 x 151 mm (91/2 x 91/2 x 515/16)
Weight (each)
3.4 kg (7 lb 8 oz)
Pre-Construction Bracket
CM-B
Cabinet Finish
Matt black & Orange & Green
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/
MF Switch
- /0/
