LAB POINTS

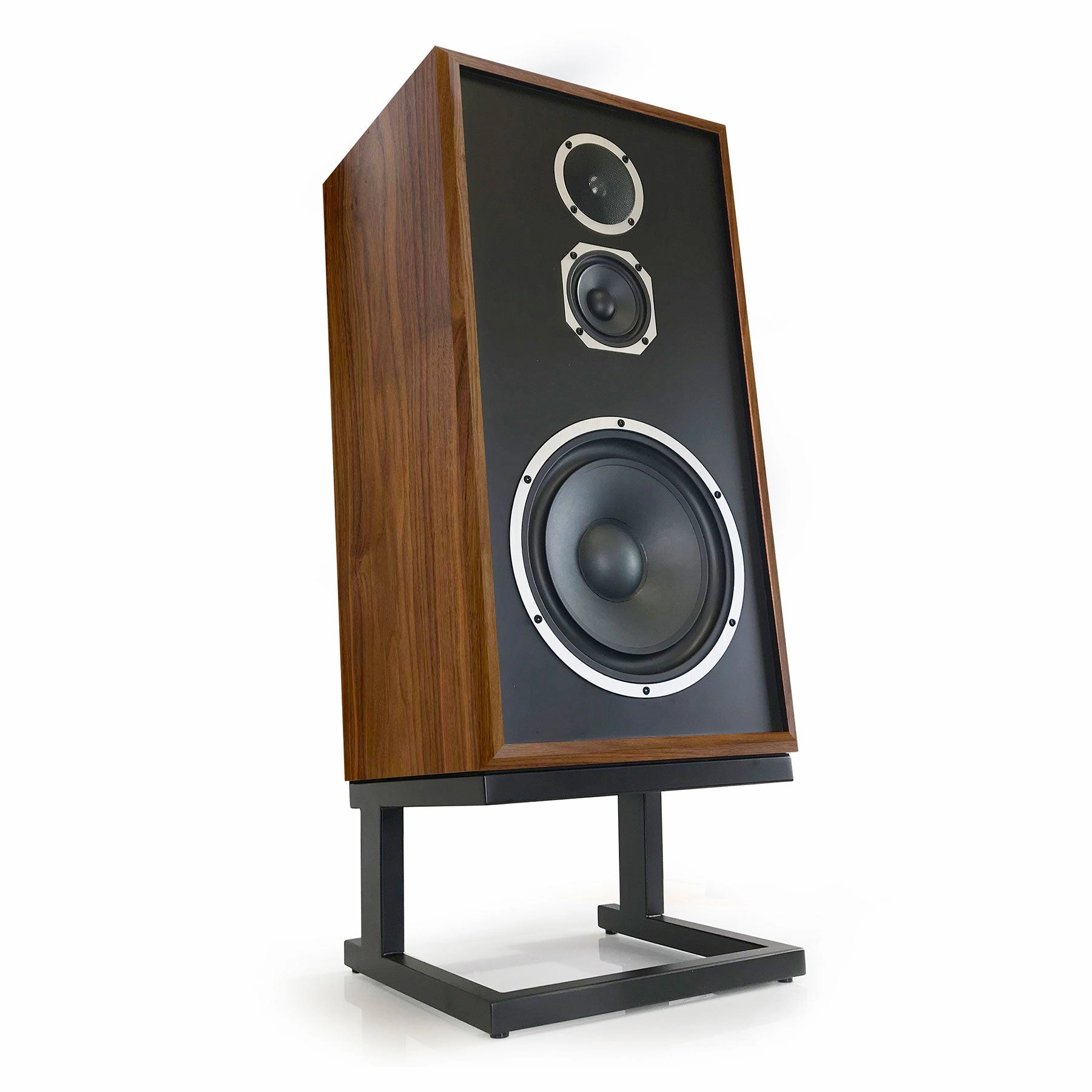

• full-sizedspeaker with 10" woofers from heritage loudspeaker manufacturer
• recommended amp power = 20-200 wattsper channel (800W peak)
• Acoustic Suspension Design - vintage tech delivers better response in lower ranges
• (3) positionAcoustic Balance Control to tailor the loudspeakers output to your environment
• premium construction w/ structurally reinforced3/4" MDF enclosure w/ accuratelinearsuspension design real wood veneer

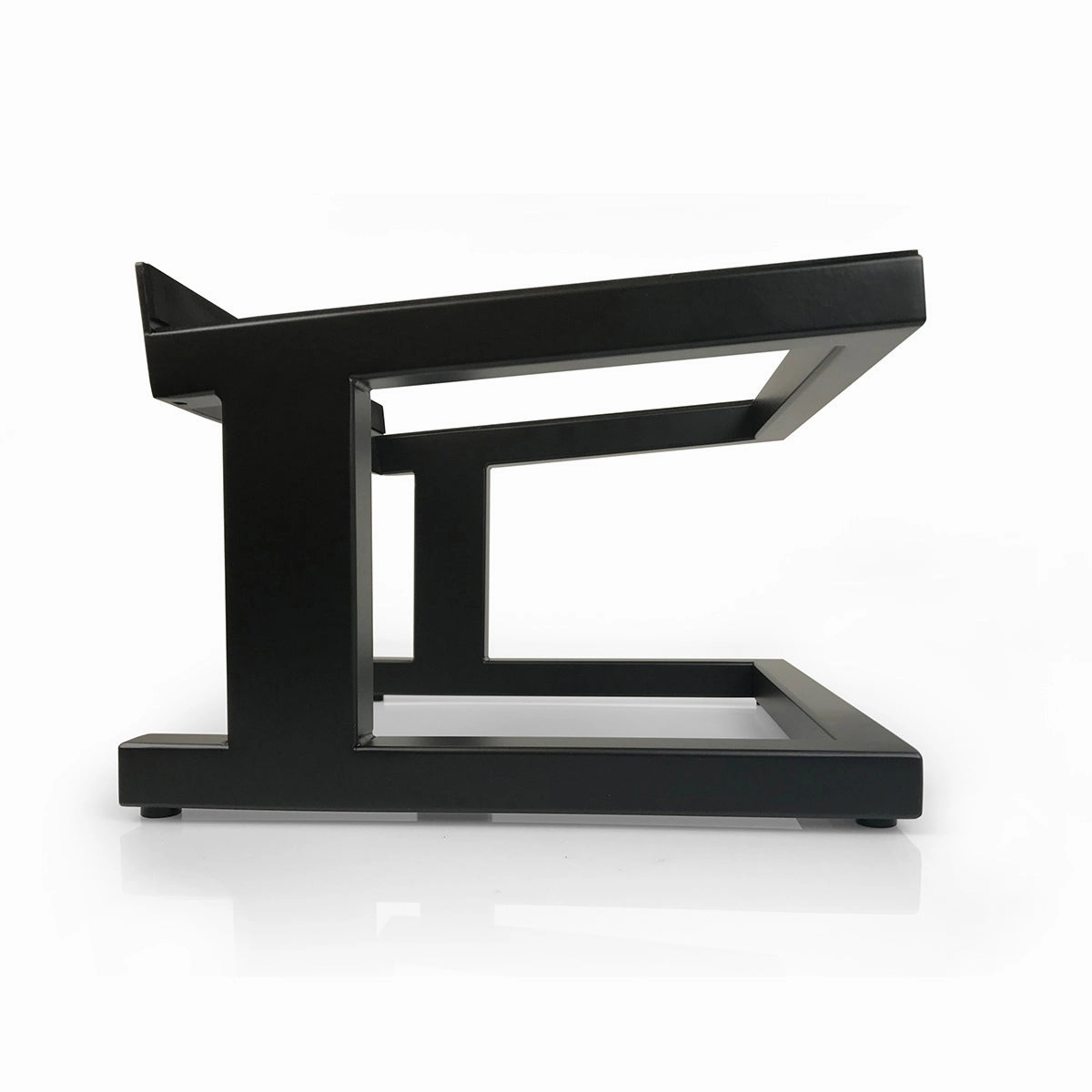

• comes w/ 8" riserstand angled for optimal sound positioning, made frompowder-coated 14-gauge steel

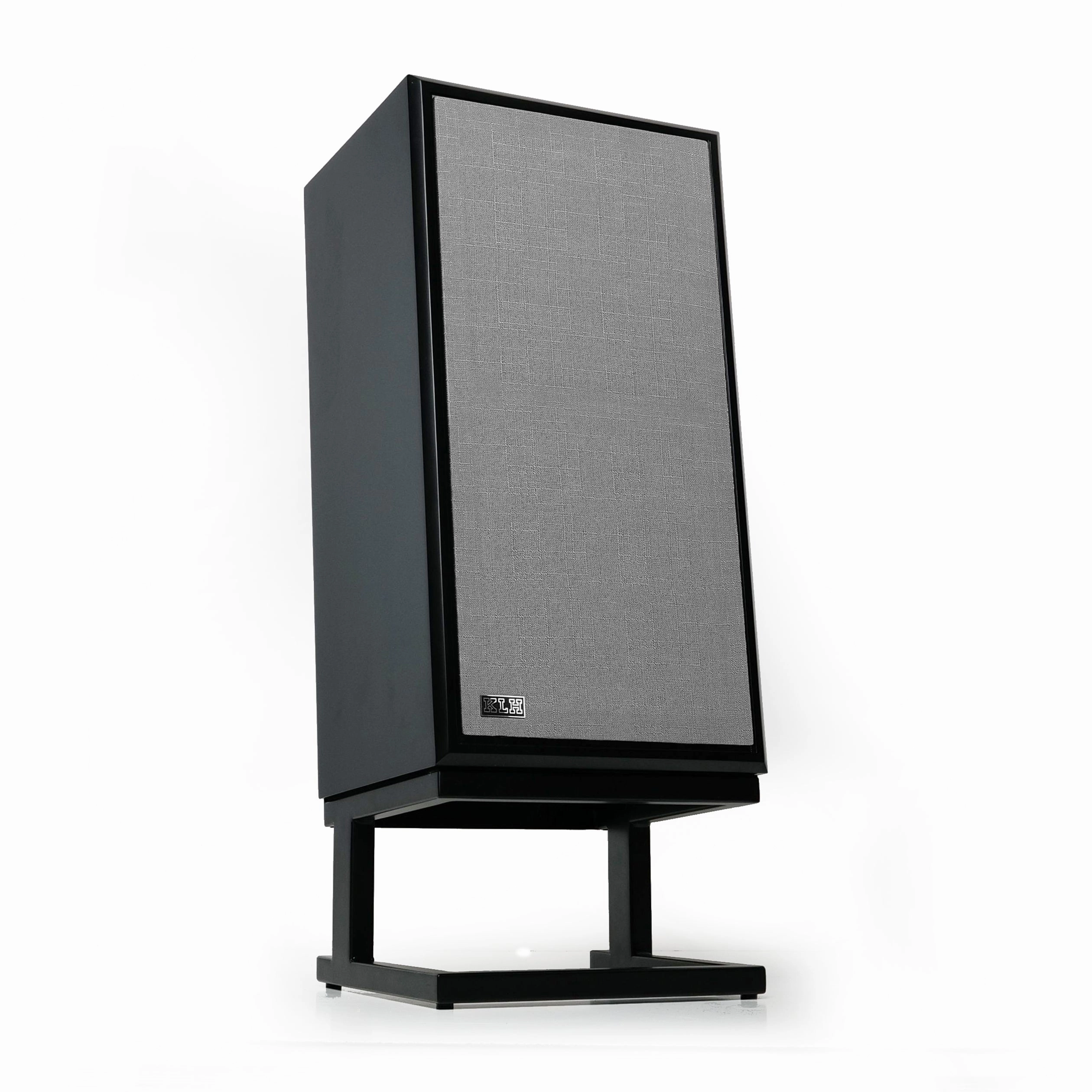

• removablemagnetic grille
• note: sold as single speakers,add (2) singles in cart for pairs

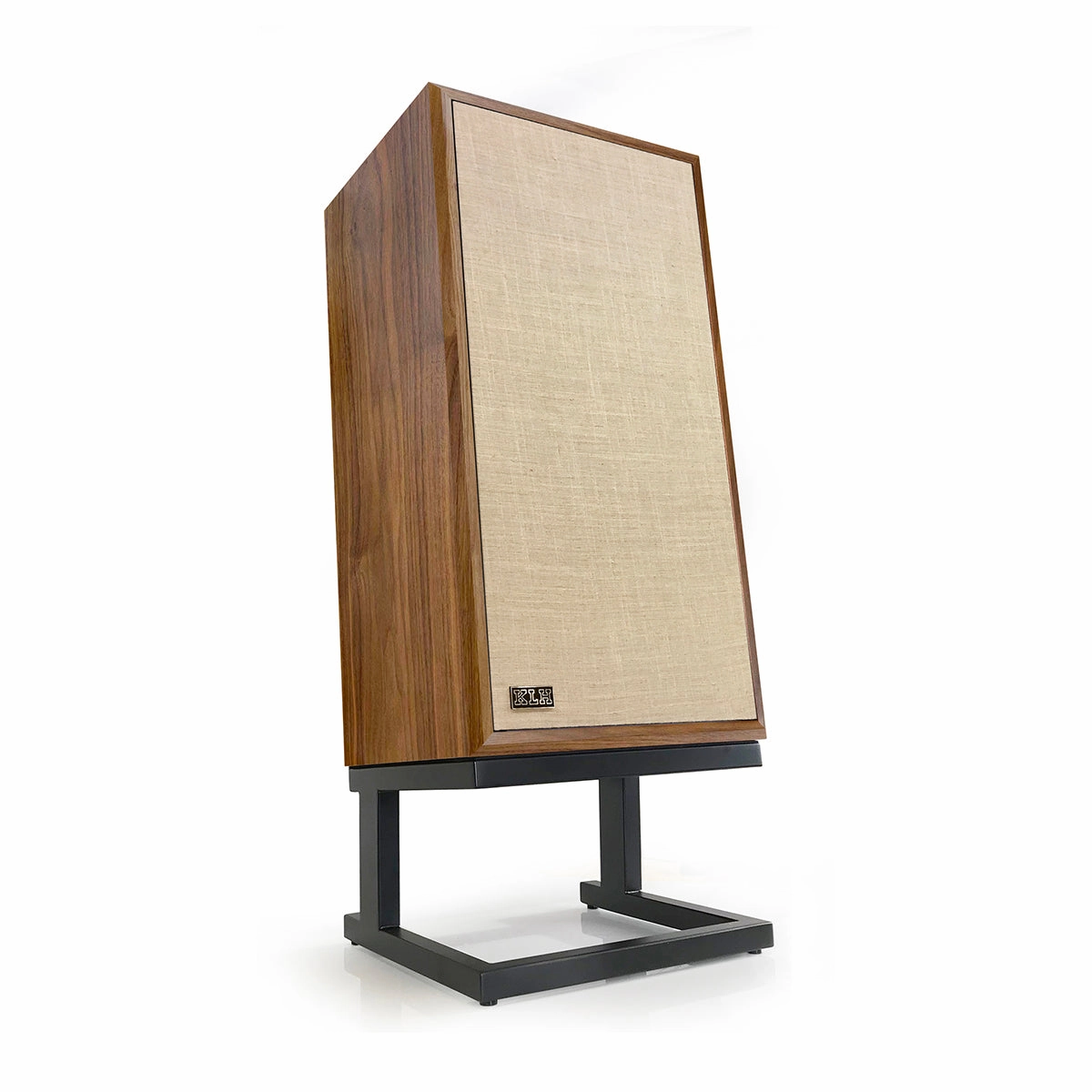

"The legendary KLH Model Five was first introduced in 1968 and served as the heart and soul of KLHs success throughout the late 1960s and 1970s. At its core was the acoustic suspension design that dominated the loudspeaker industry for decades and made the Model Five one of the best-selling loudspeakers of its era. In 2021, KLH re-introduced the Model Five; building on the original acoustic suspension design and using the most advanced loudspeaker technology available today." -KLH

RECOMMENDED ADD-ON

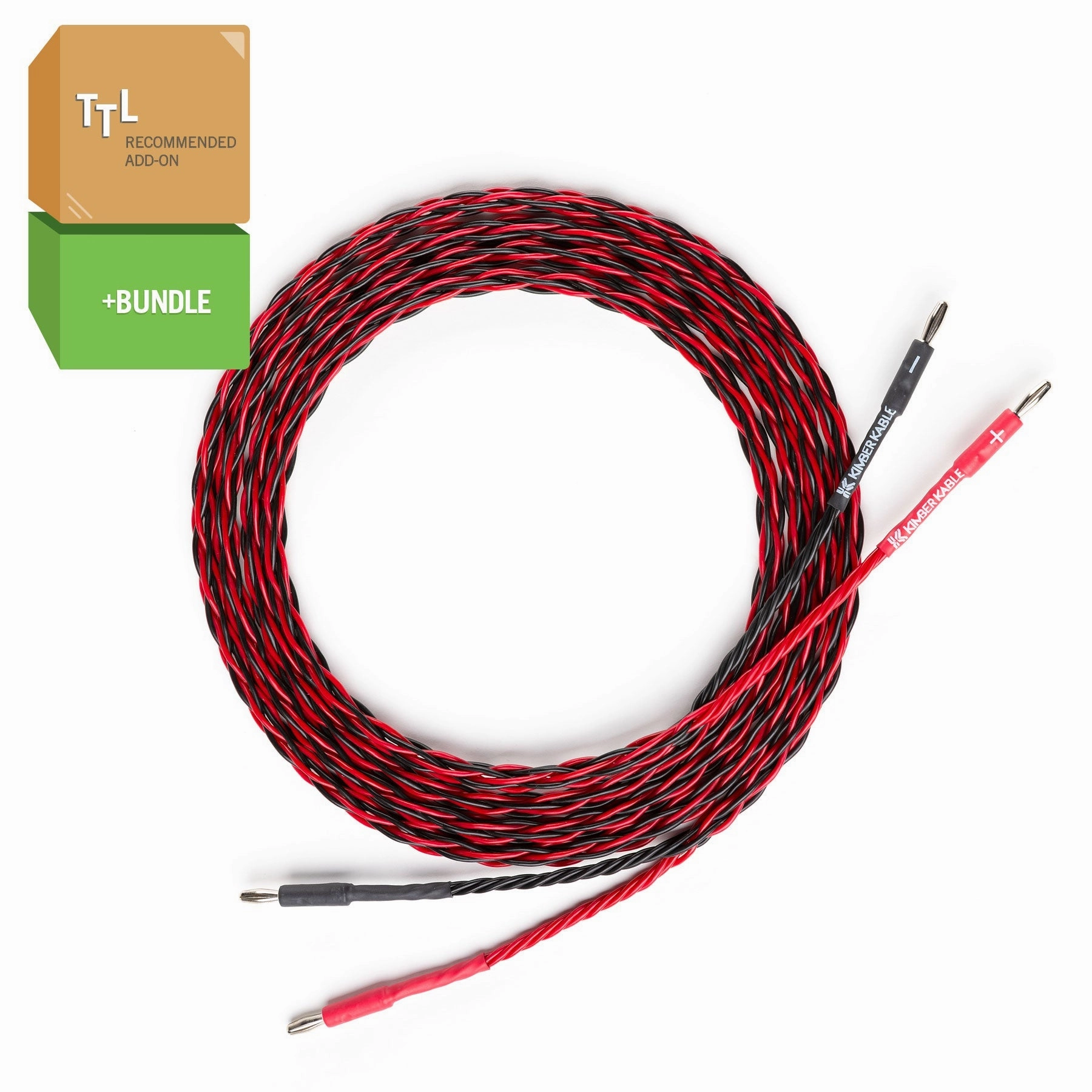

• high-quality audiophile grade cables, made in the USA
• select option above

KEY FEATURES

• Frequency Response: 42Hz 20,000Hz /- 3dB
• Low Frequency Extension: -10dB @ 32Hz
• In-Room Sensitivity: 90.5dB @ 2.83V / 1M
• Free-field Sensitivity: 87.5dB @ 2.83V / 1M
• Power Handling: 200 Watts / 800 Watts Peak

• Recommended Power Amplification: 20 Watts to 200 Watt

• In-Room Maximum SPL: 112.3dB

• Maximum Output @ 45Hz: 1106dB

• Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)

• Horizontal Dispersion: 140 degrees

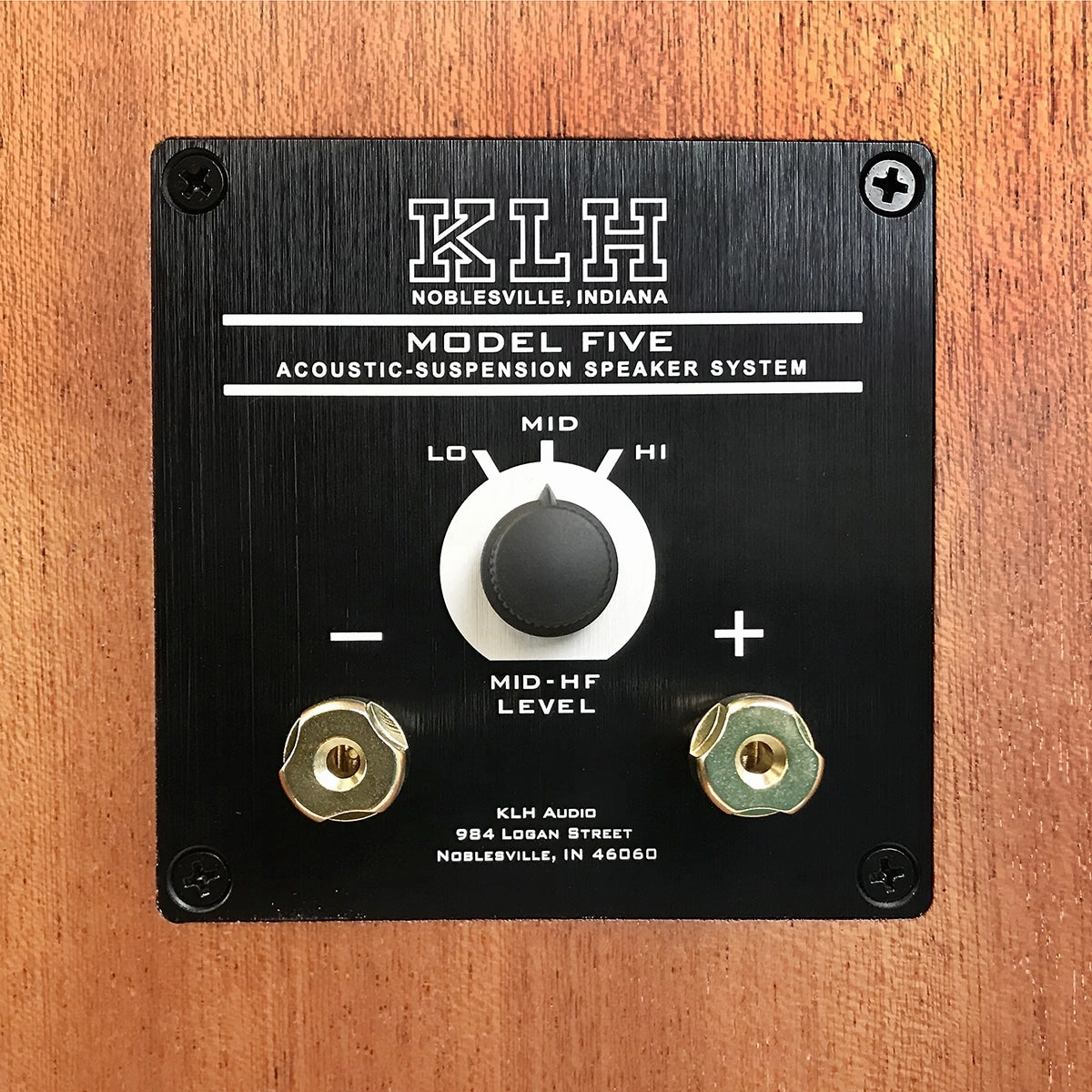

• Features: Three-Position Acoustic Balance Control

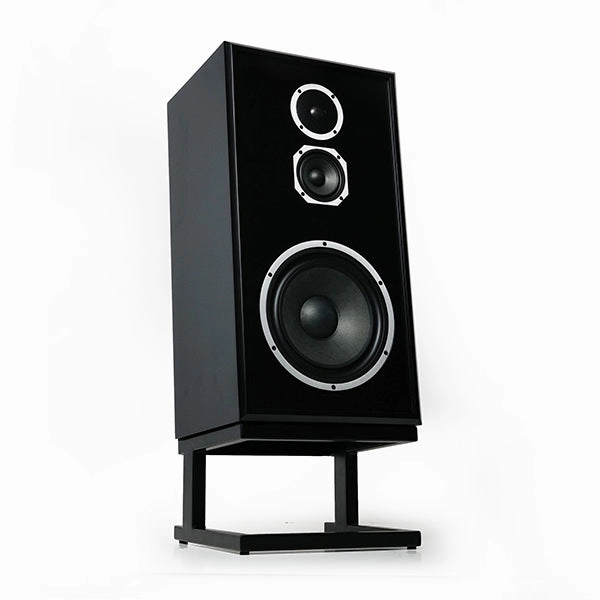

• High-Frequency Driver: 1" Aluminum Dome with soft rubber suspension

• Mid-Frequency Driver:4" Pulp-Paper Cone with Reverse Roll Rubber Suspension
• Low-Frequency Driver: 10" Pulp-Paper Cone with Reverse Roll Rubber Suspension, 2" Diameter Flat-Wire Voice Coil

• Non-resonant die-cast aluminum frame

• Enclosure Material: Structurally Reinforced " Medium Density Fiberboard

• Inputs: Five-Way Gold-Plated Binding Posts

• Dimensions (W x H x D, with riser base): 13.75" x 34.25" x 13.0" / 350 x870 x 350mm

• Dimensions (W x H x D, without riser base): 13.75" x 26.0" x 26.0" / 350 x 660x 350mm
• Weight (with riser base): 52 lbs / 23.6 kg

• Weight (without riser base):44 lbs / 20.0 kg


COMES WITH

• removable magnetic grille
• riser base

• 10-year manufacturer warranty
