Flush Mount Architectural Speaker
KEFs Ci130QRfl is a flush-mounted, frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QRfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.
Features:
- Uni-Q Point Source Driver Array
- Patented Technology
- Tweeter in the Acoustic Centre of the midrange cone
- Single Point Source
- Wide & Even Sound Dispersion over a Large Area
- 125 mm Midrange Driver
- 25 mm Vented Aluminium Dome Tweeter
- Tangerine Waveguide
- Enhance Sound Dispersion
- 130 of Coverage
- Flush Mount Installation - Frameless Design
- Easy Installation
- Magnetic & Paintable Grille
- Gold-Plated Spring Loaded Binding Posts

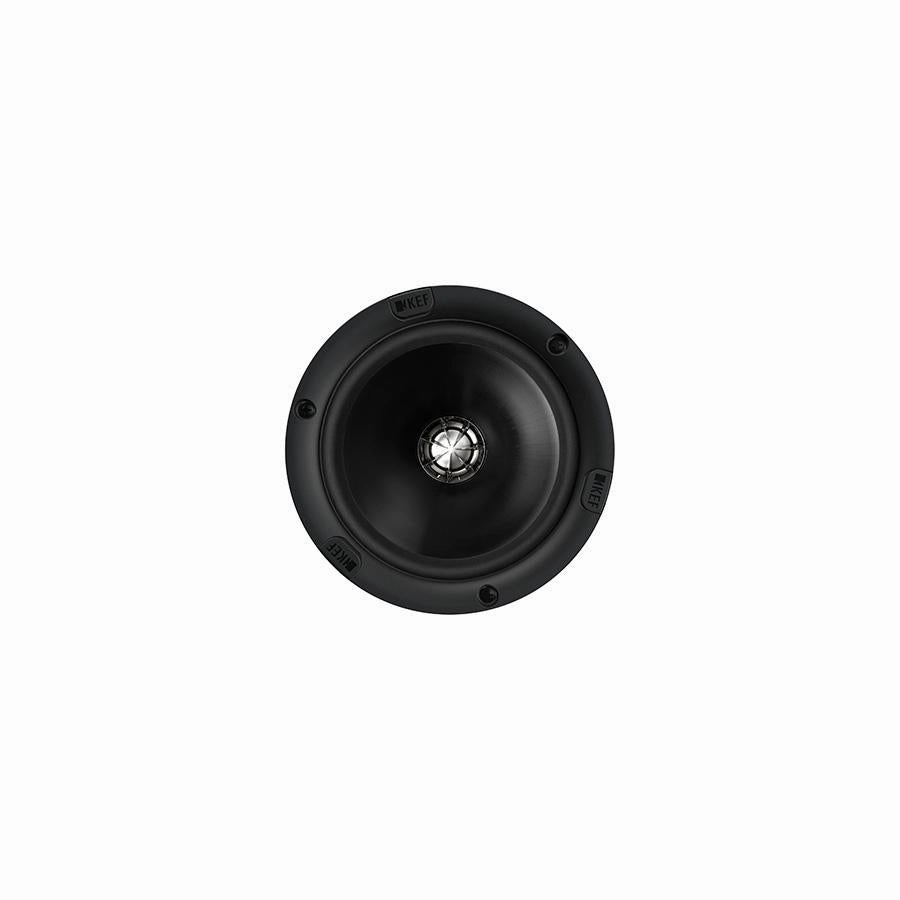

Ci130QRfl
Part of the Ci Q Series, Ci130QRfl is built around KEFs signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QRfl is a round loudspeaker, while the Ci130QSfl features identical drivers in a square format.
Intuitive Installation
Ci130QRfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QRfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.
Specifications:
| Model | Ci130QRfl |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 87dB (2.83V/ 1m) |
| Frequency Response (6DB)Open-Backed | 45Hz - 34kHz |
| Frequency Range (-10DB) | 38Hz-30kHz |
| Max SPL (DB) | 130 |
| Crossover Frequency | 3.8kHz |
| Drive Units | LF: 130mm (5.25in.) Uni-Q HF: 19mm (0.75in.) |
| External Dimensions | Diameter : 200.6mm (7.9in) Depth: 104.6mm (4.12in) |
| Cut-out Dimensions | Diameter : 158mm (6.22in.) |
| Mounting Thickness | Ceiling Thickness (Maximum): 31mm (1.220in.) Ceiling Thickness (Minimum): 7mm (0.276in.) |
| Net Weight | 1.45kg (3.19Ibs.) |
| Mounting Depth From Surface | 101mm (3.98in.) |
| Minimum Rear Volume(L) | 10 |
| Ideal Rear Volume(L) | 15 |
| Mounting Thickness (Maximum) | 35mm (1.38in.) |
| Mounting Thickness (Minimum) | 9mm (0.36in.) |
