LAB POINTS

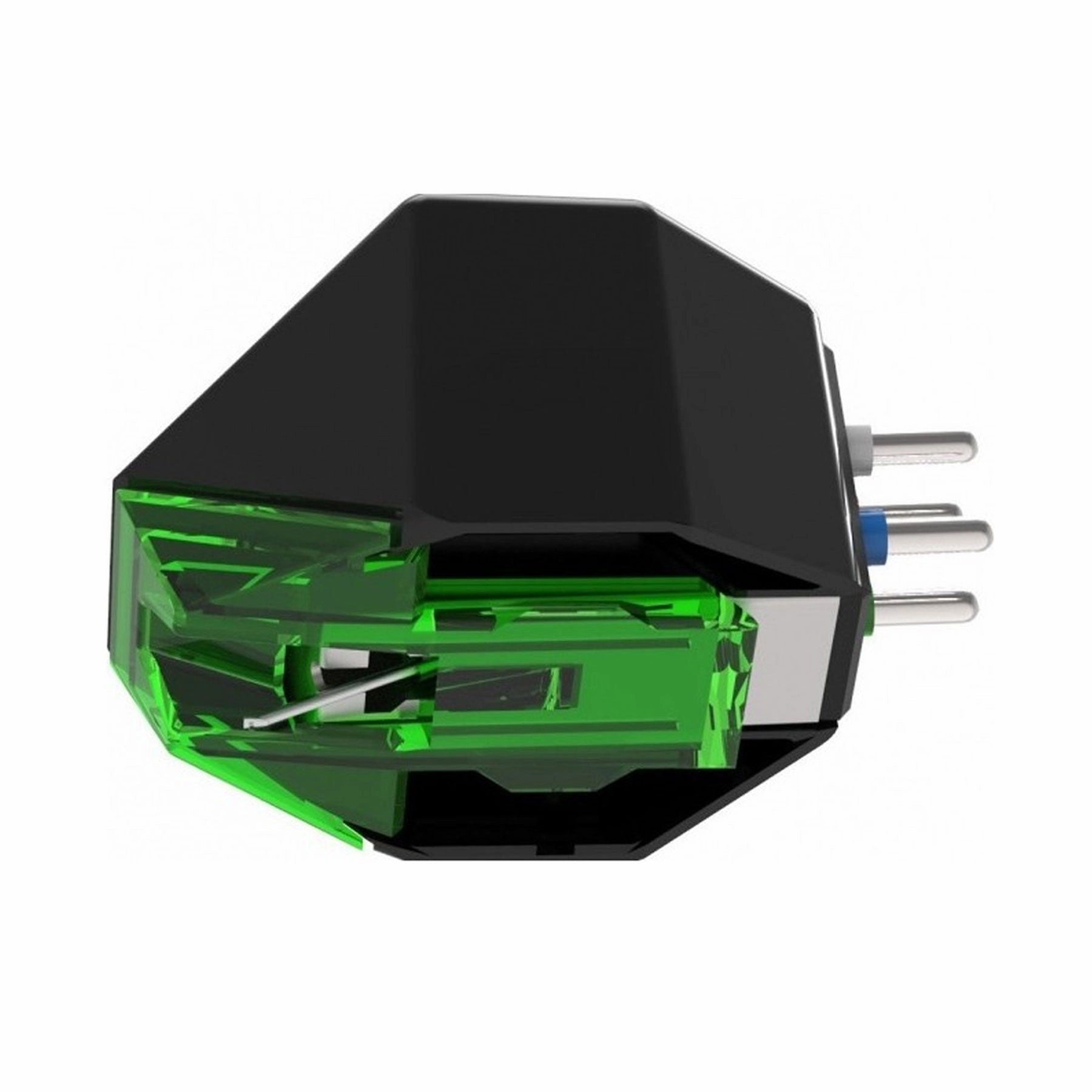

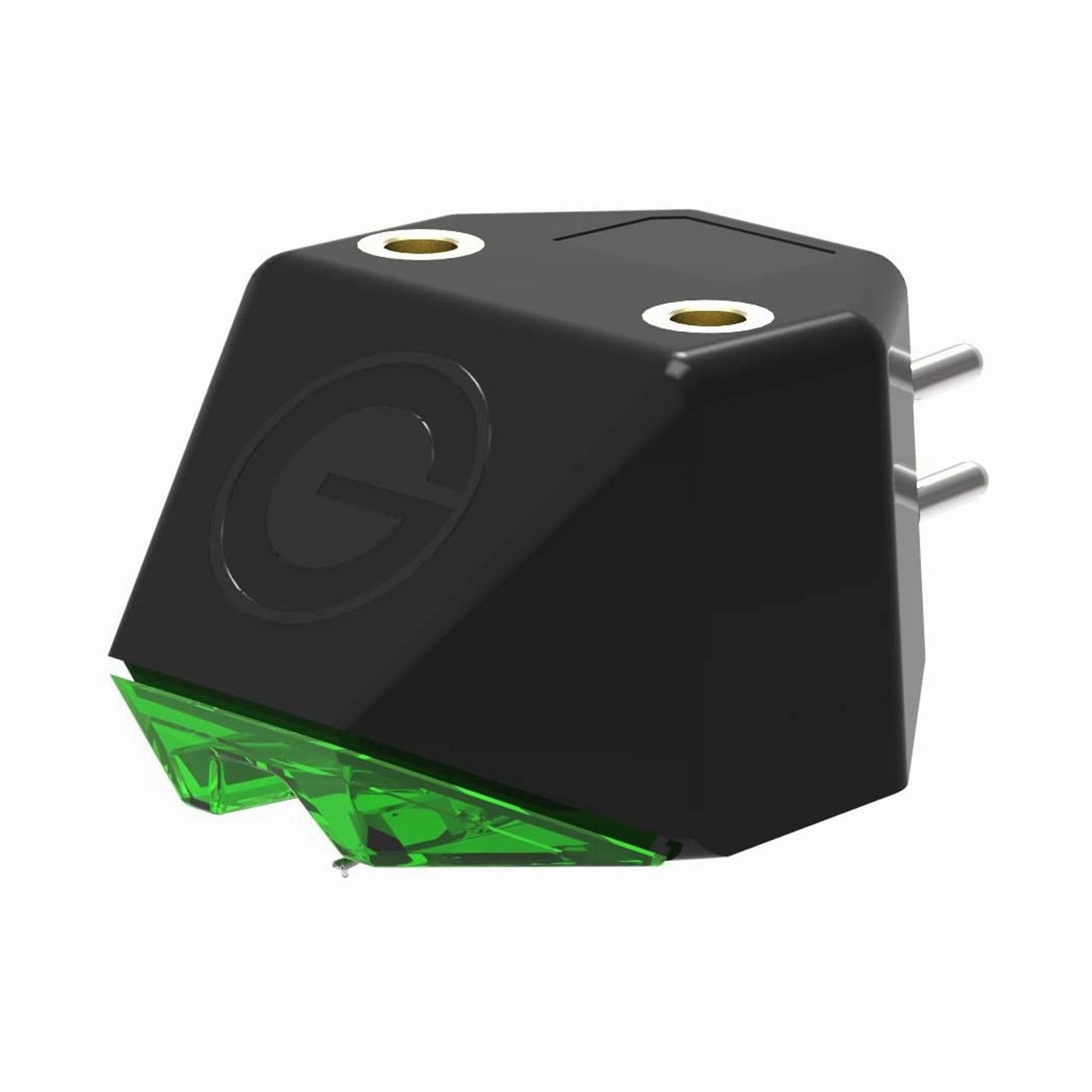

- handmade cartridge from British manufacturer, middle of the E-series range
- dual moving magnet cartridge (MM) w/spherical stylus aluminum cantilever
- micro-adjusted during production to ensureaccurate tracking with almost any turntable setup
- 'dual magnet generator assemblytracks w/ better stereo separation moredetailed musical sound stage
- handmade in the UK
"The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment." - Goldring
TECH SPECS
- Colour: Green
- Cantilever: Aluminium
- Stylus profile: Spherical
- Stylus radius: 0.6 mil
- Frequency range: 20 Hz - 20 kHz
- Channel balance: 1.5 dB at 1 kHz
- Channel separation: >20 dB at 1 kHz
- Sensitivity: 3.5 mV (1 kHz @ 5 cm/sec)
- Static compliance: 20 mm/N
- Vertical tracking angle: 20
- Load resistance: 47 k
- Load capacitance: 100 - 200 pF
- Internal inductance: 400 mH
- Internal resistance: 410
- Cartridge mass: 6.9 g
- Fixing centres: 12.7 mm (0.5 in)
- Tracking force: 1.5 g - 2.5 g (2.0 g recommended)
