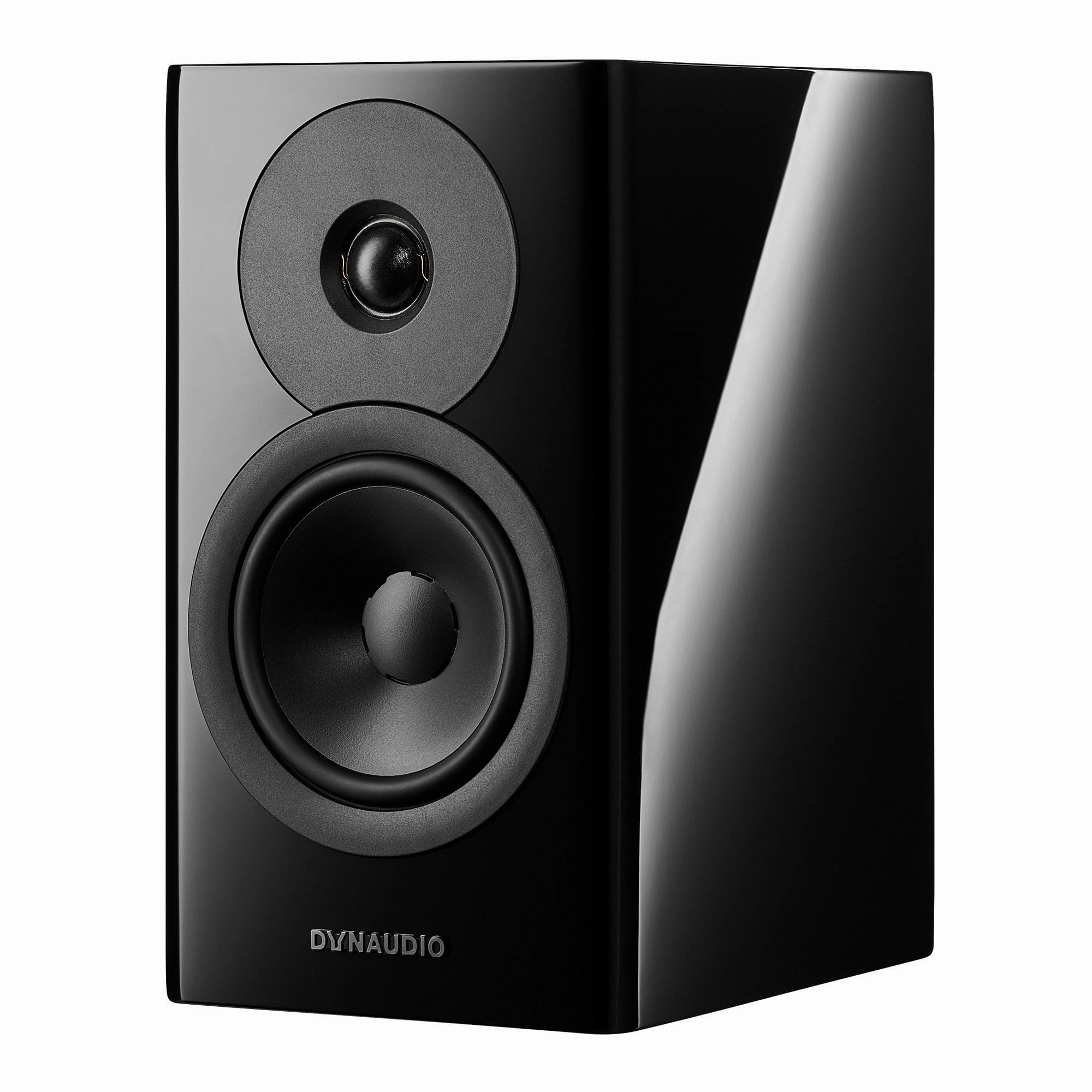

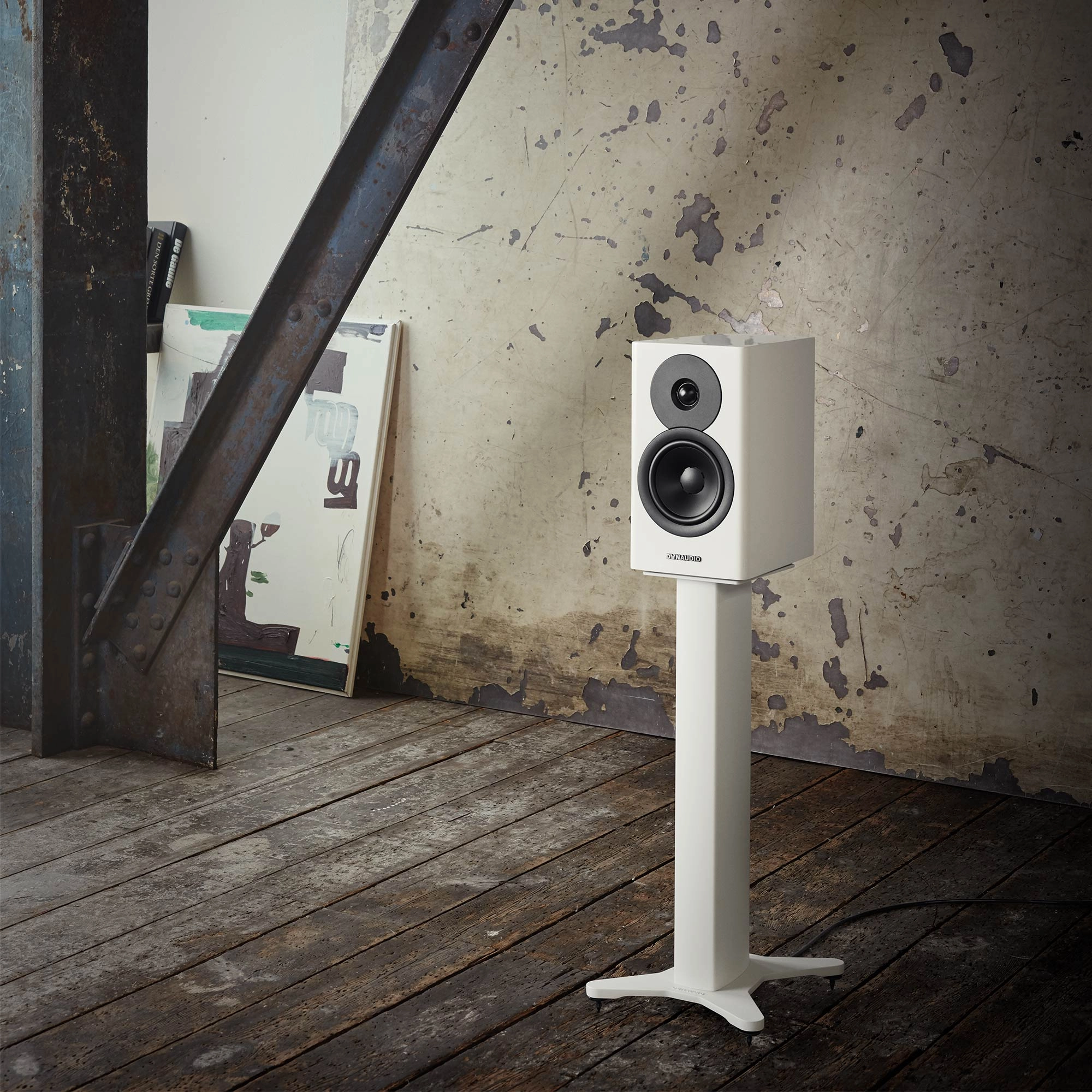

Compact stand-mount speakers for smaller spaces.
Plug them in, turn them up, and then get a friend round. Wed put money on your pal asking wheres the rest of the speakers are. Thats when you smile, shrug and invite them to sit down in the sweet-spot on your sofa. And then turn it up a bit more.
Weve been creating speakers that perform out of all proportion to their physical size for over 40 years, and Evoke 10 is no exception. These are serious hi-fi built for serious entertainment.
Classic Dynaudio heritage with a twist
Each speakers single 14cm long-throw mid/bass driver is made from MSP (Magnesium Silicate Polymer), just like all Dynaudio speakers have used for decades. They use new surrounds to extend their throw, their frequency response and their low-frequency dynamics all while maintaining stellar midrange performance.
Want to know the woofers secrets? The diaphragm is 0.4mm thin, which provides exactly the right combination of lightness, stiffness and damping to ensure optimum performance. Its made of one piece (the dust-cap is part of the playing surface), and is bonded directly to the rigid glass-fibre voice-coil former directly under the Balance Ribs youll see around the centre dome. That means the whole unit moves as one, in a predictable (and carefully tuned) way, for a performance that strikes the ideal balance between bass and midrange.
The 38mm voice-coil itself is made from aluminium, making it extremely light. That means we can use more windings. More windings gives us more control over the cones movement, which means more control over the sound even at high volumes and high frequencies. Its kept stable, centred and true by the Nomex spider (the circular spring assembly that stops the cone moving when it shouldnt, and lets it move when it should).
And the whole assembly is driven by one of our new, powerful strontium carbonate Ferrite ceramic magnet systems.
Cerotar: a brand-new tweeter
Up top is the brand-new 28mm Cerotar soft-dome tweeter. Our engineers looked behind the curtain of the award-winning Special Forty and money-no-object Confidence tweeters and cherry-picked some key technologies to bring to Evoke. The headline-grabbing component is the Hexis an ingenious inner dome that refines the airflow behind the playing surface to smooth-out its frequency response and eliminate unwanted resonances.
The Cerotar, like the woofer, is powered by a powerful Ferrite ceramic magnet assembly.
Linking the drivers together is a high-grade second-order crossover that uses the Confidences design with different components. So, yes, when we say youre getting high-end tech, we mean it.
Honest Danish design

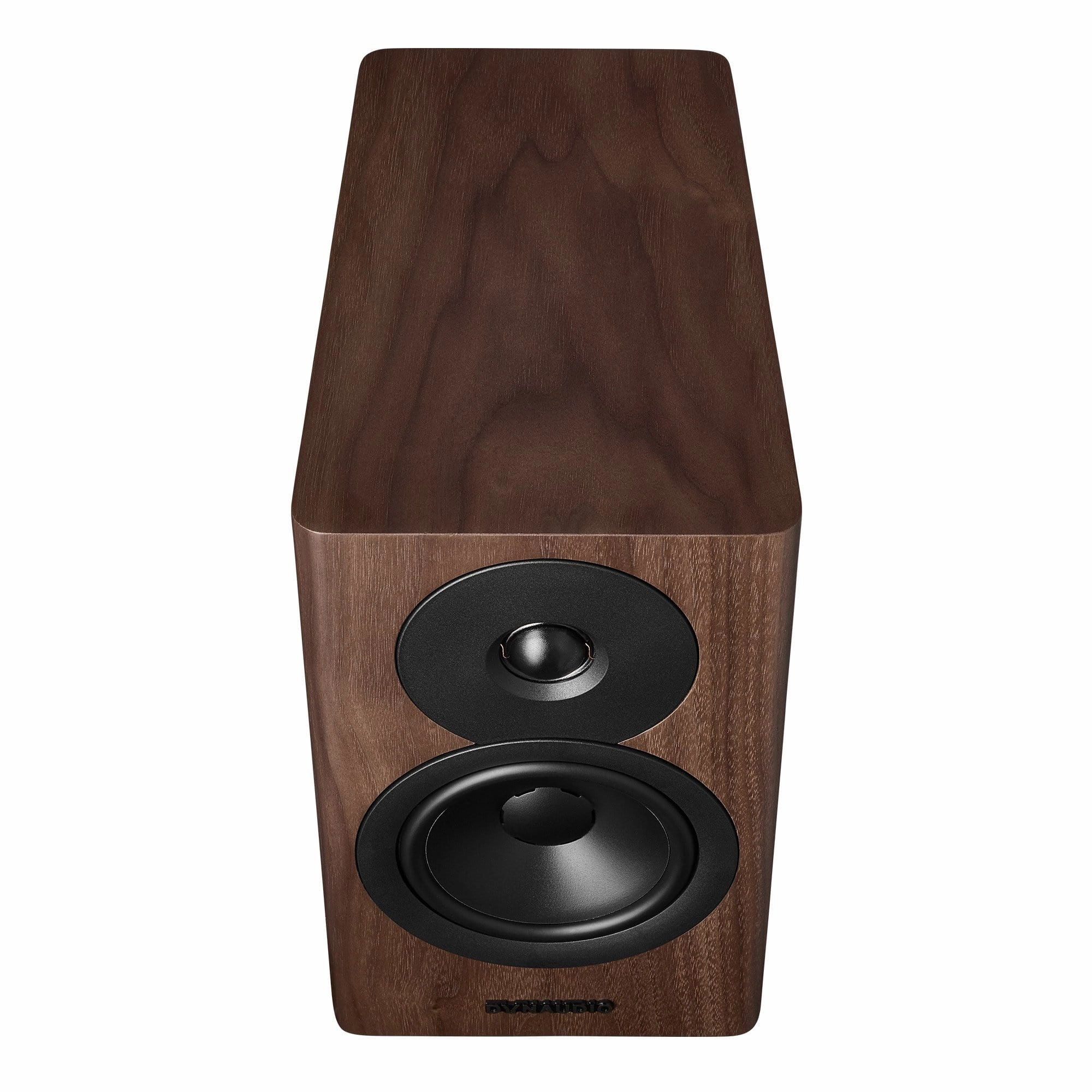

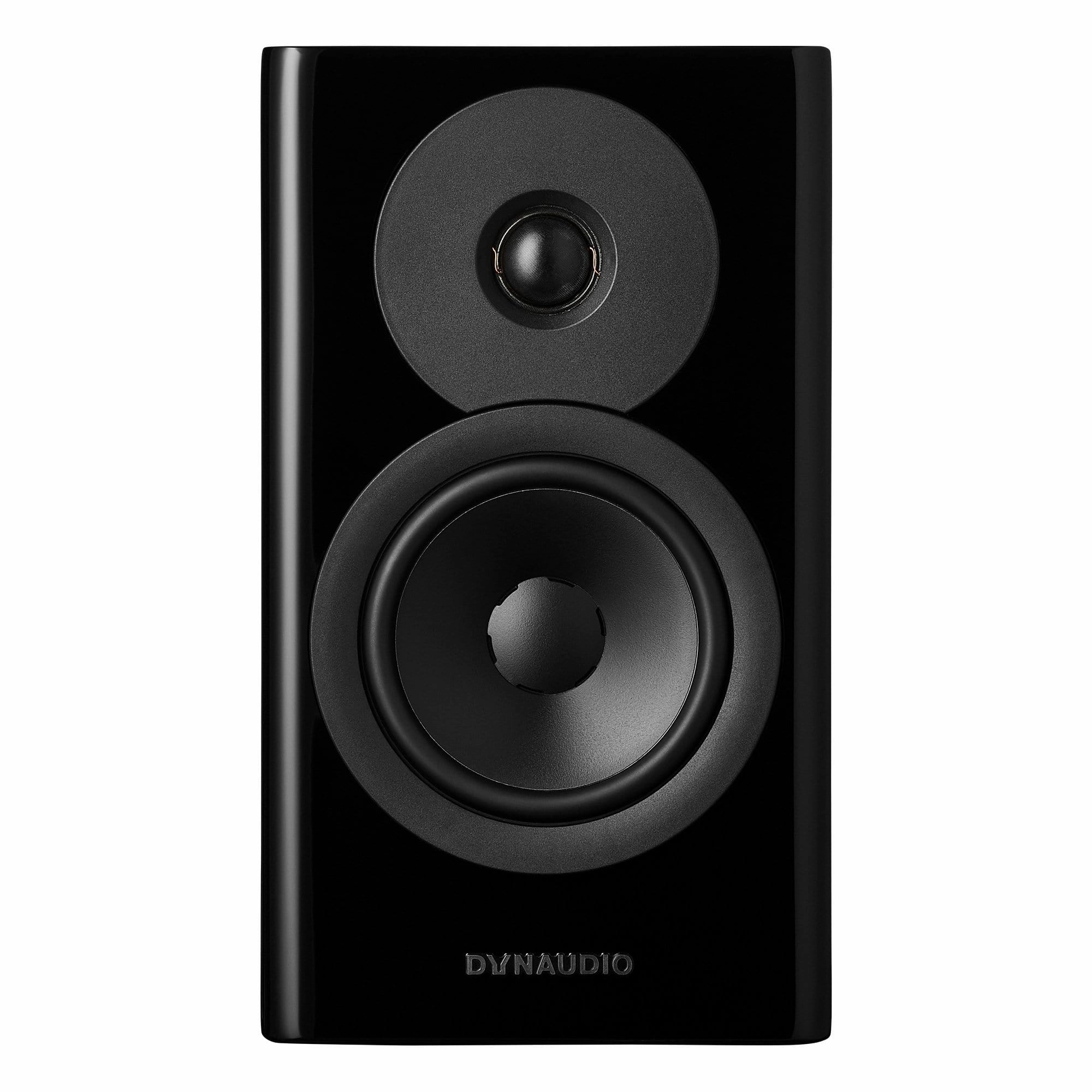

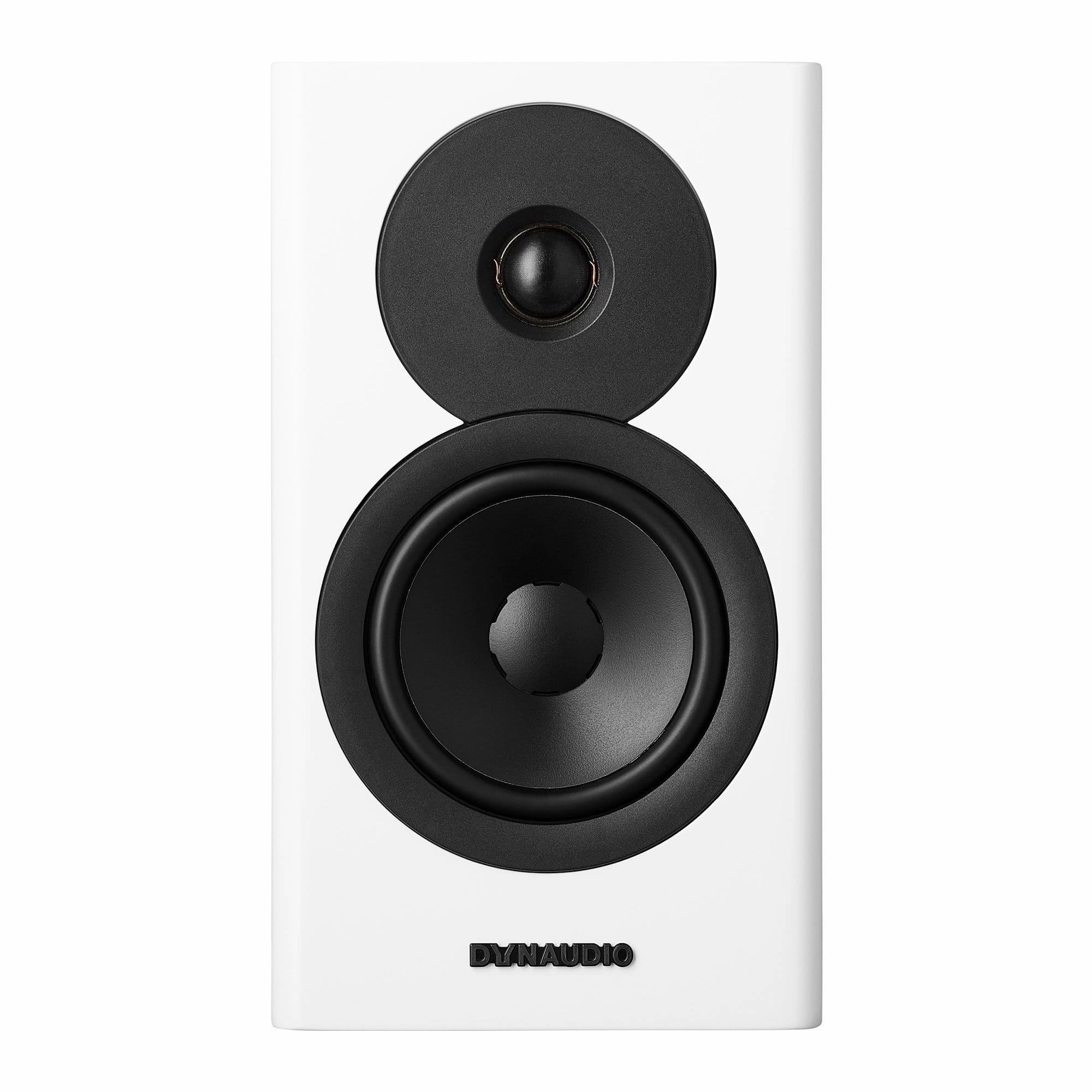

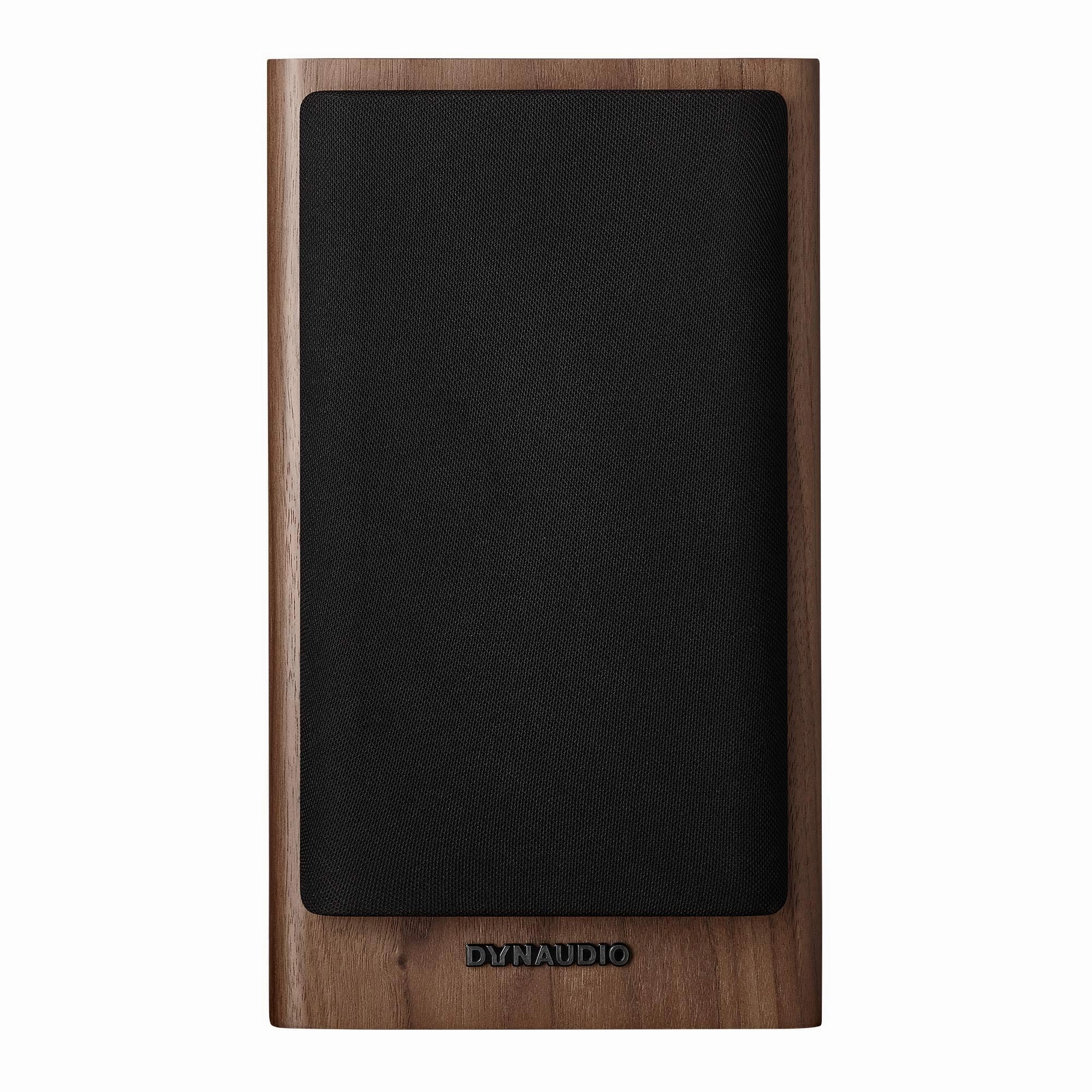

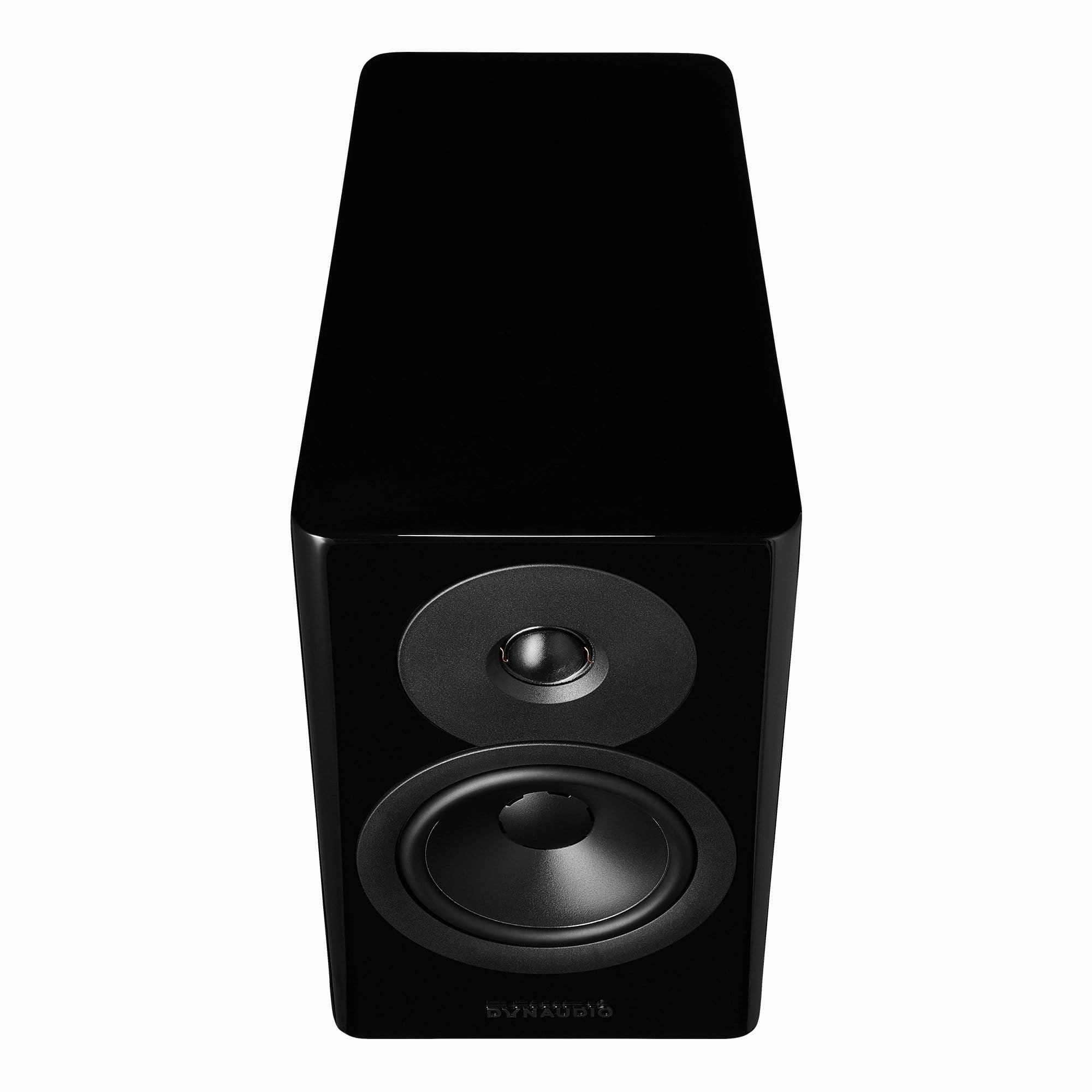

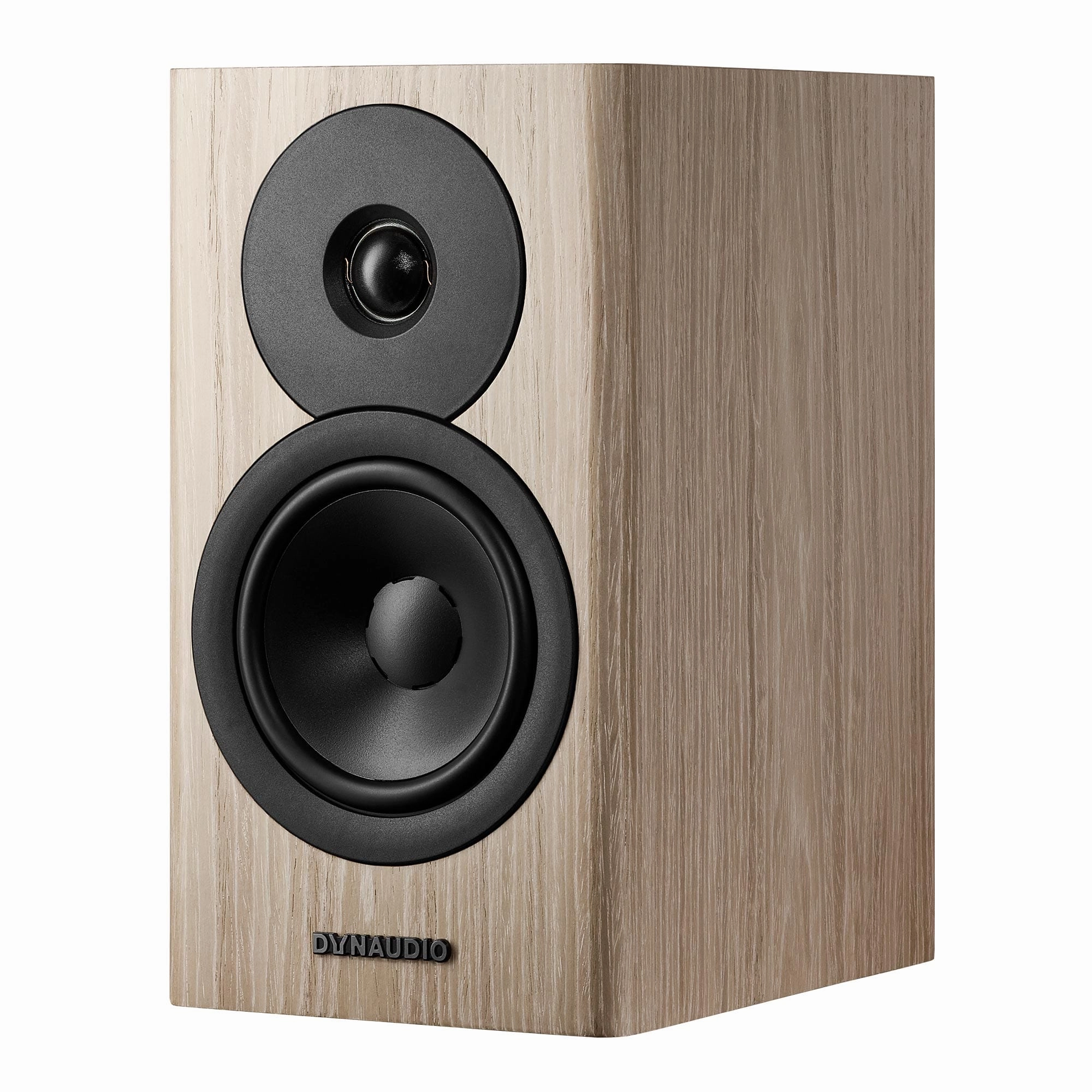

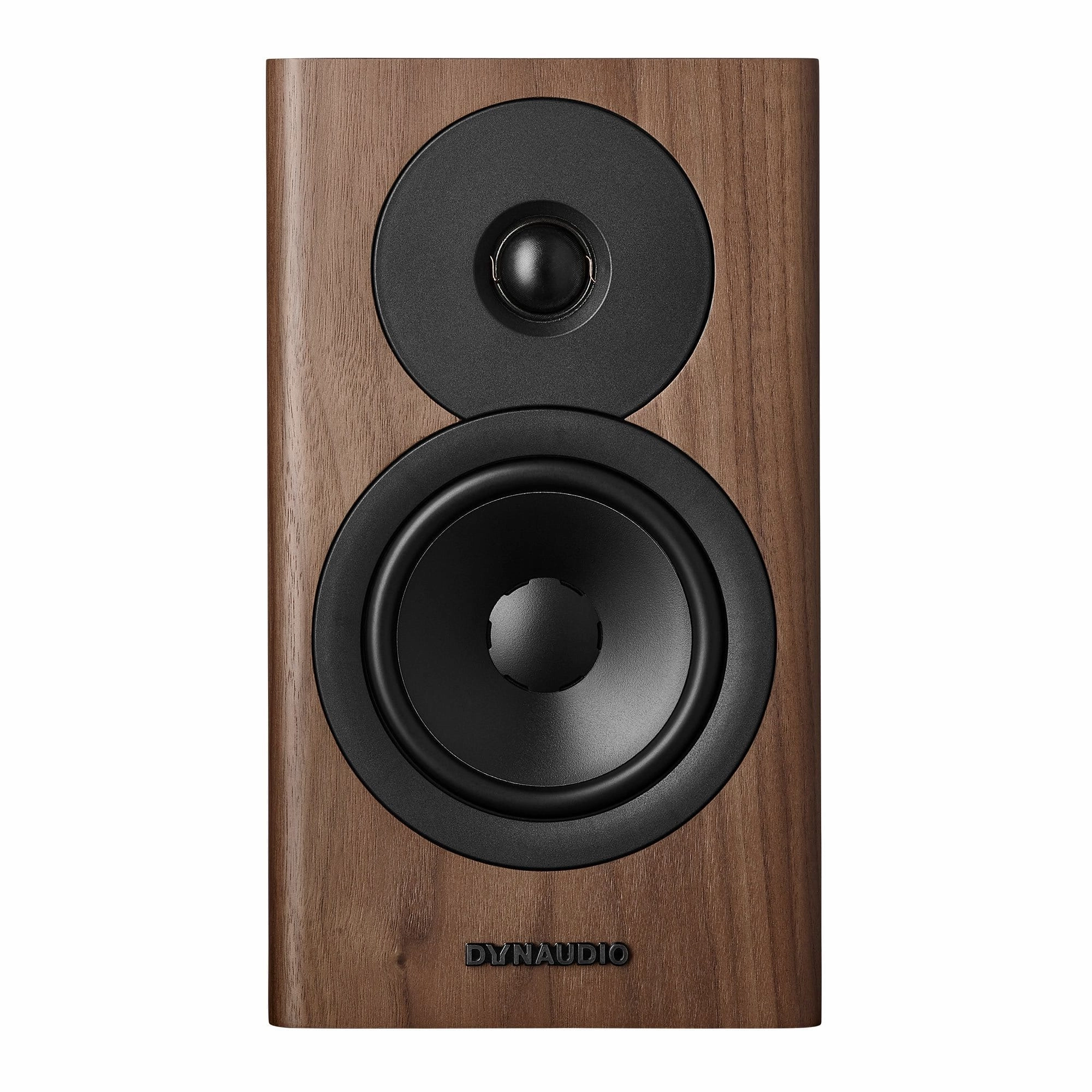

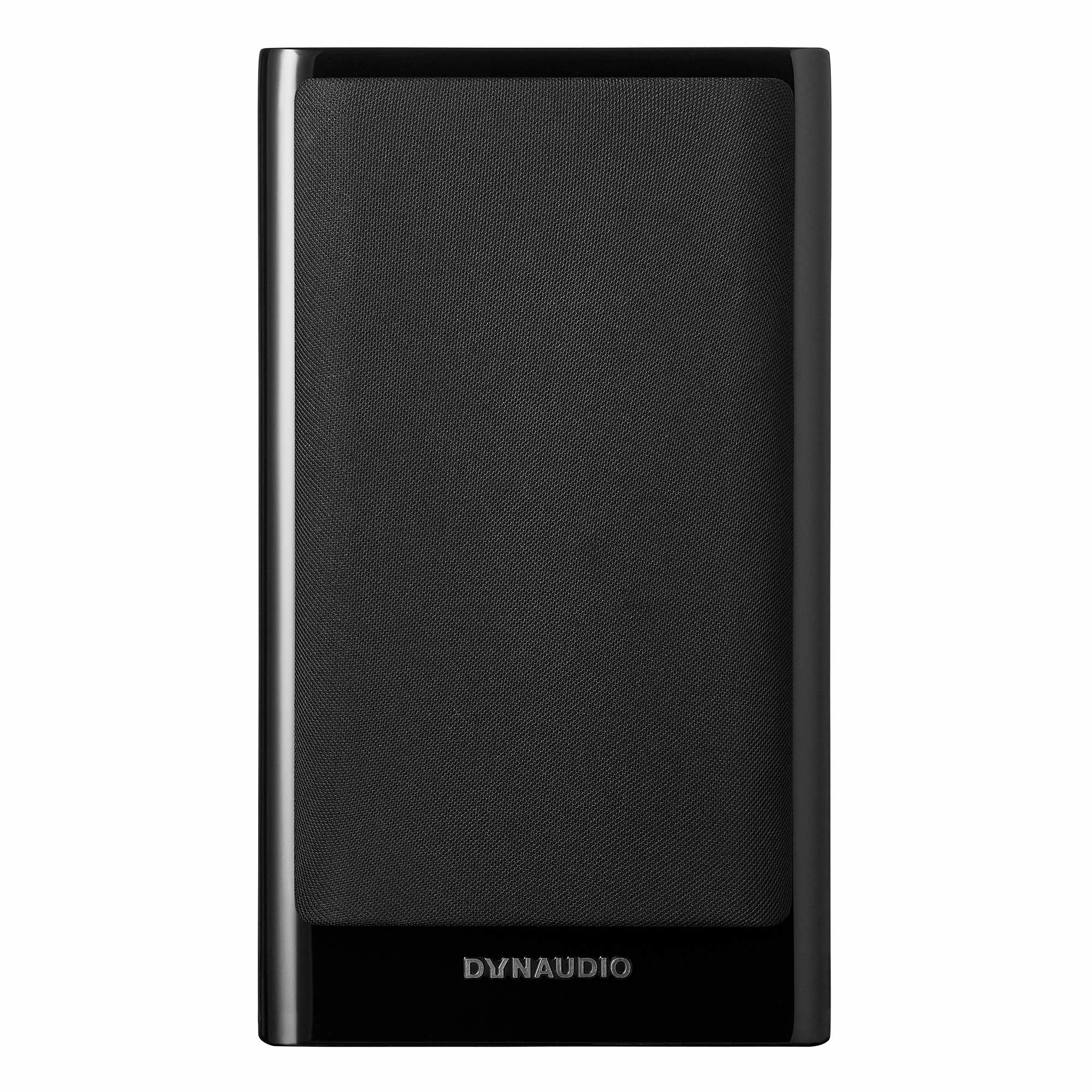

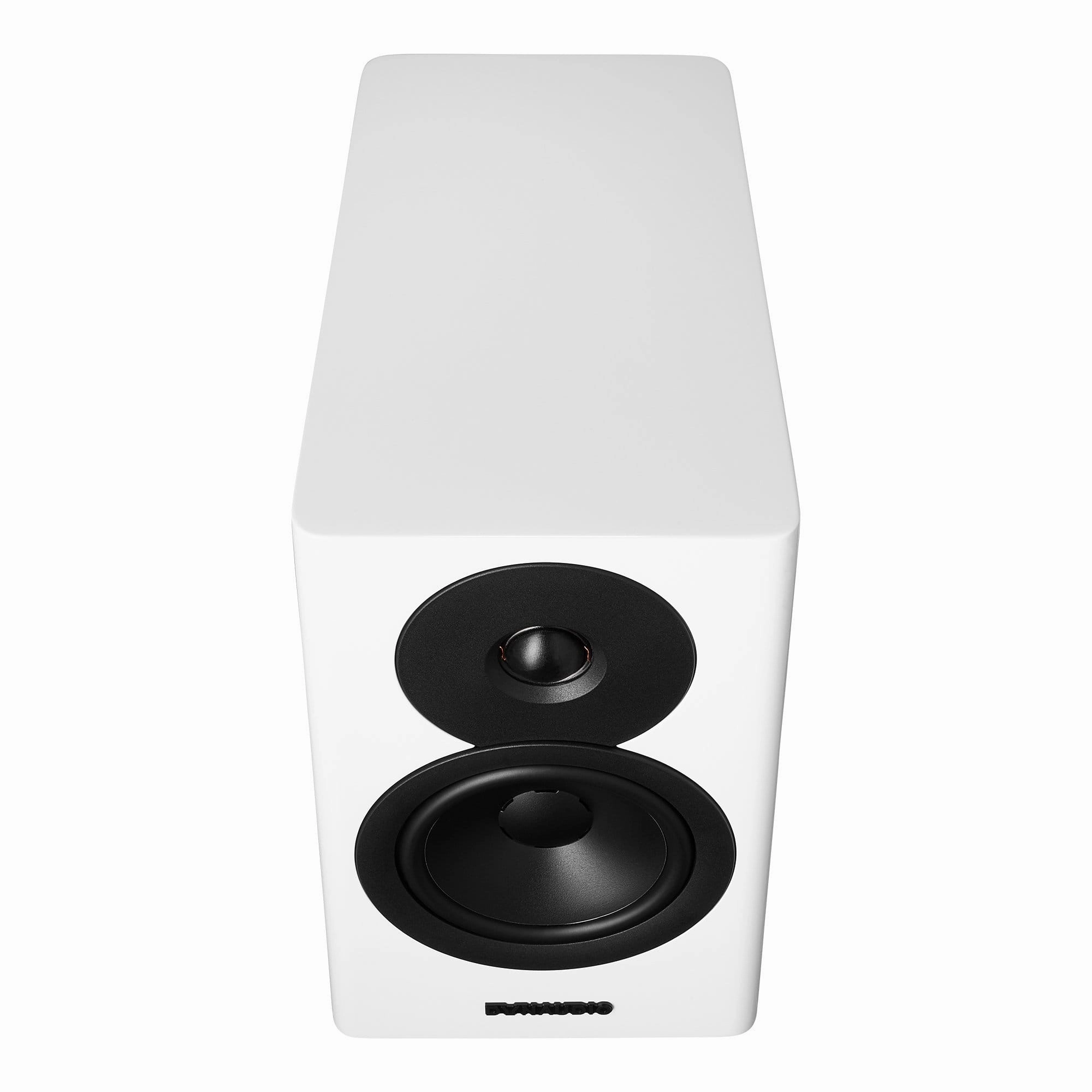

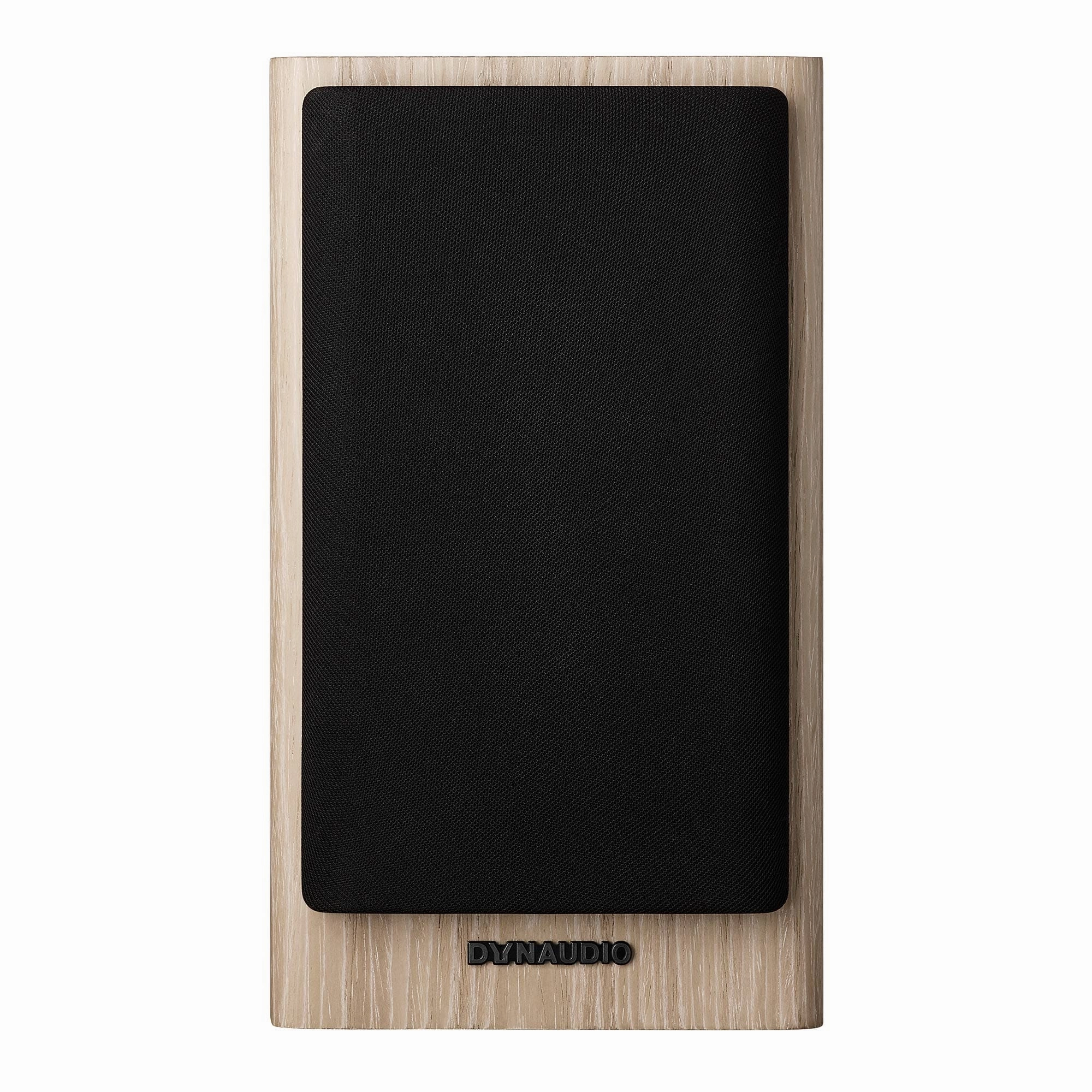

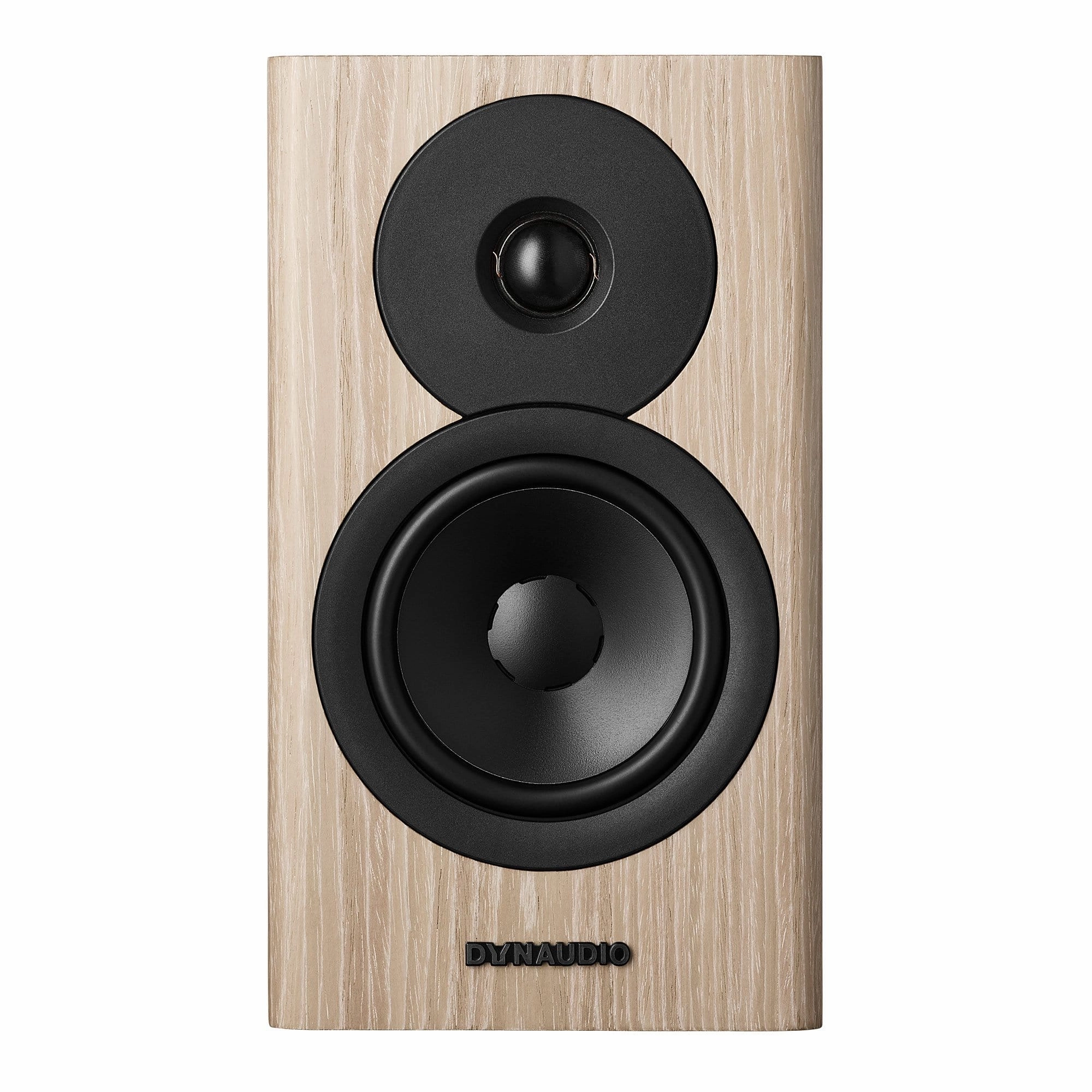

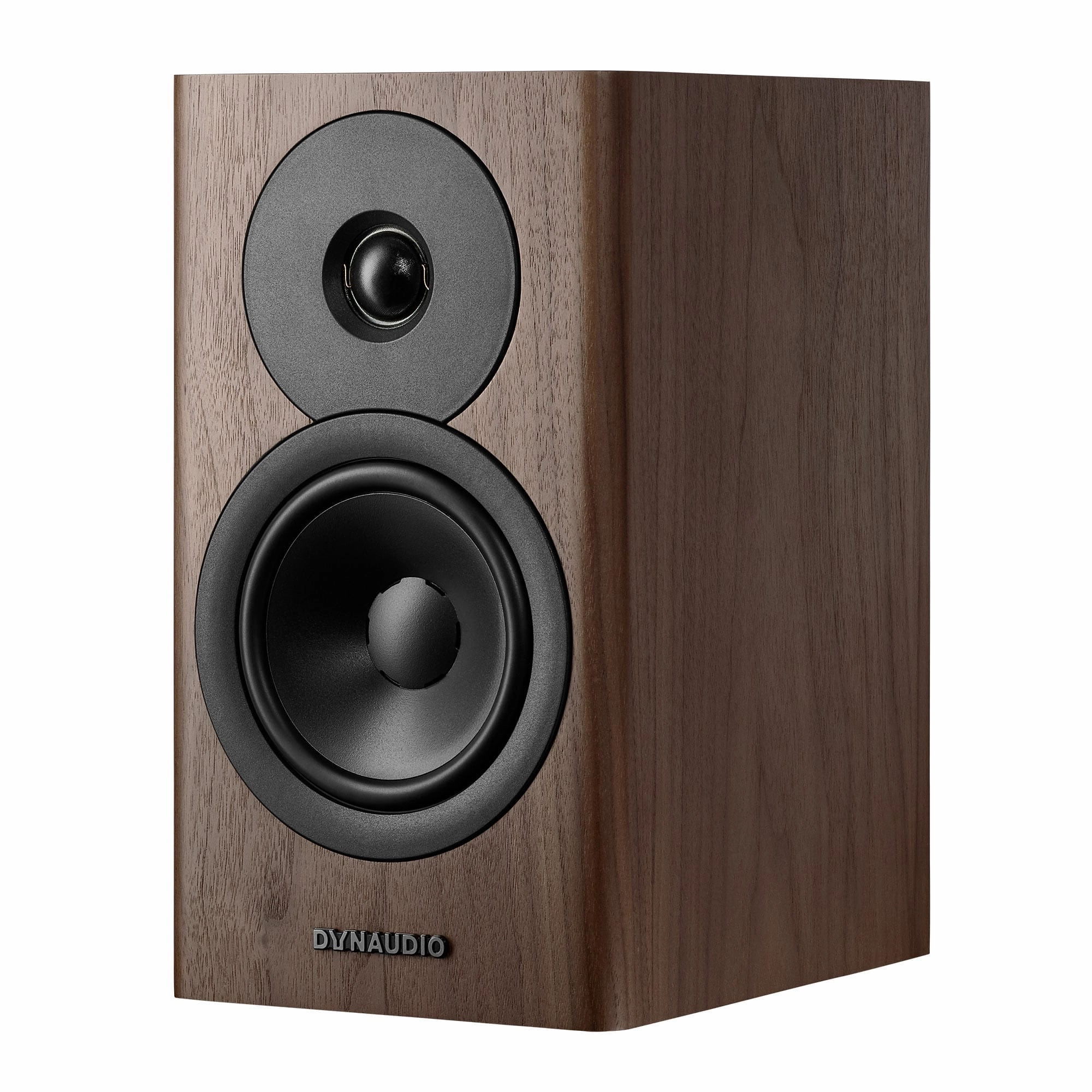

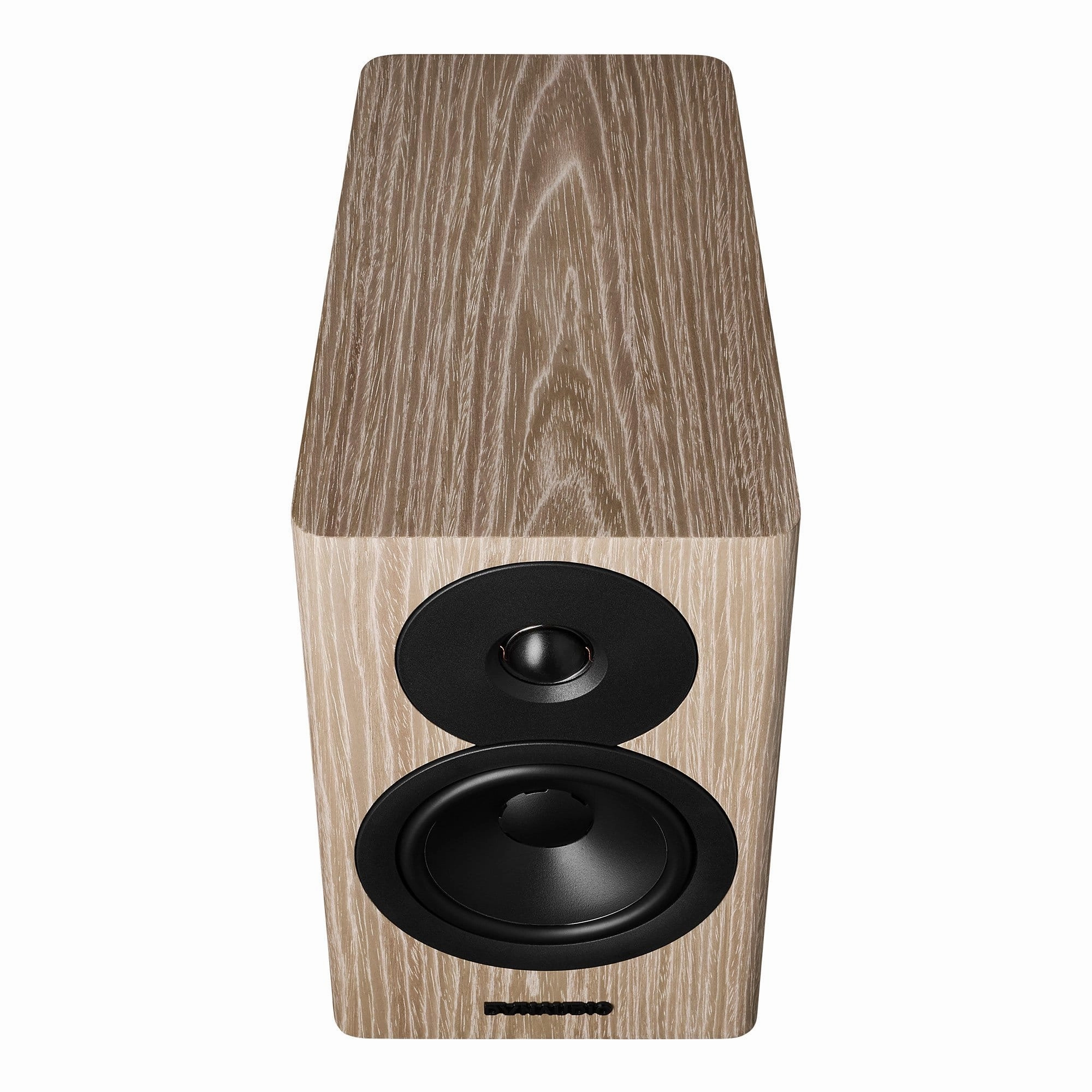

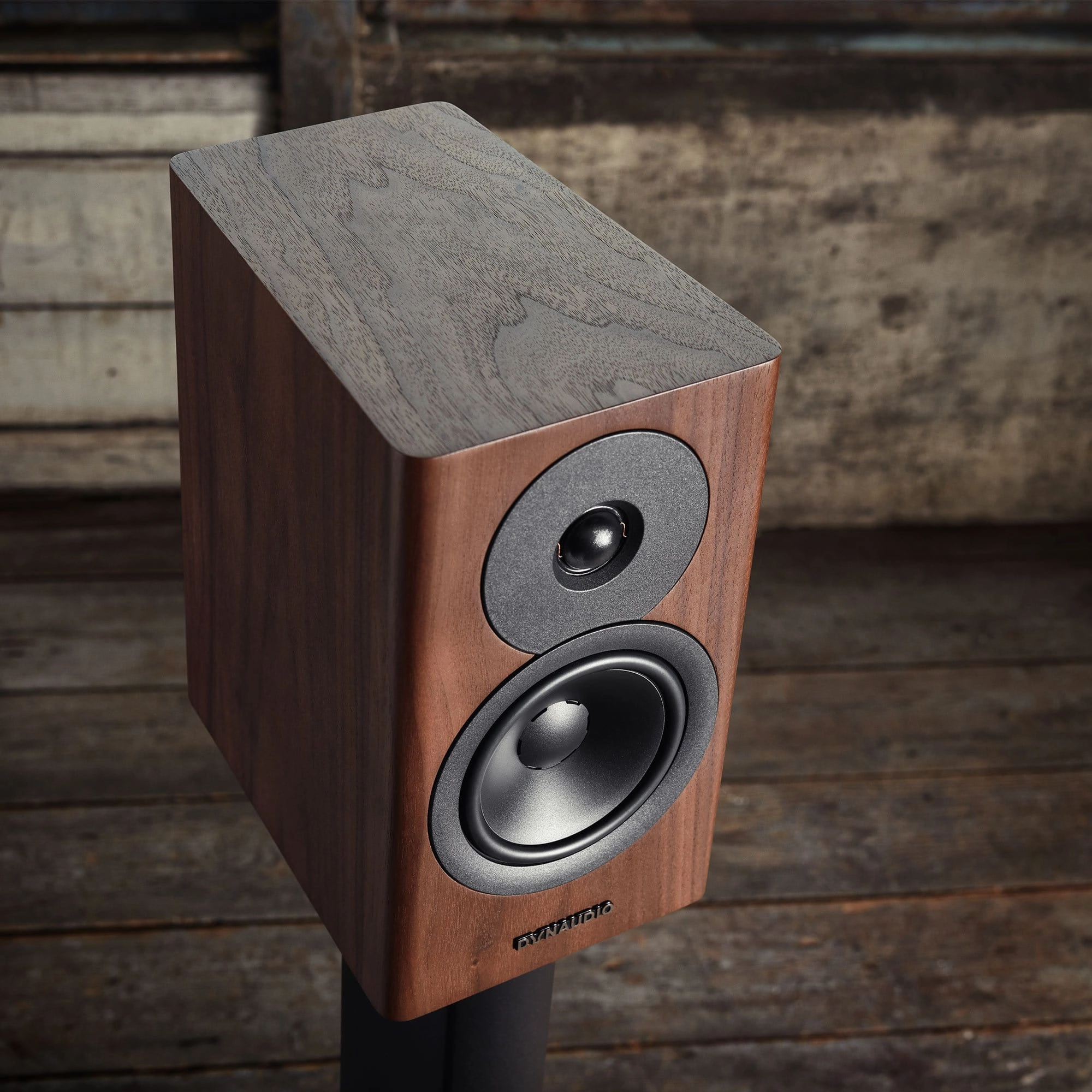

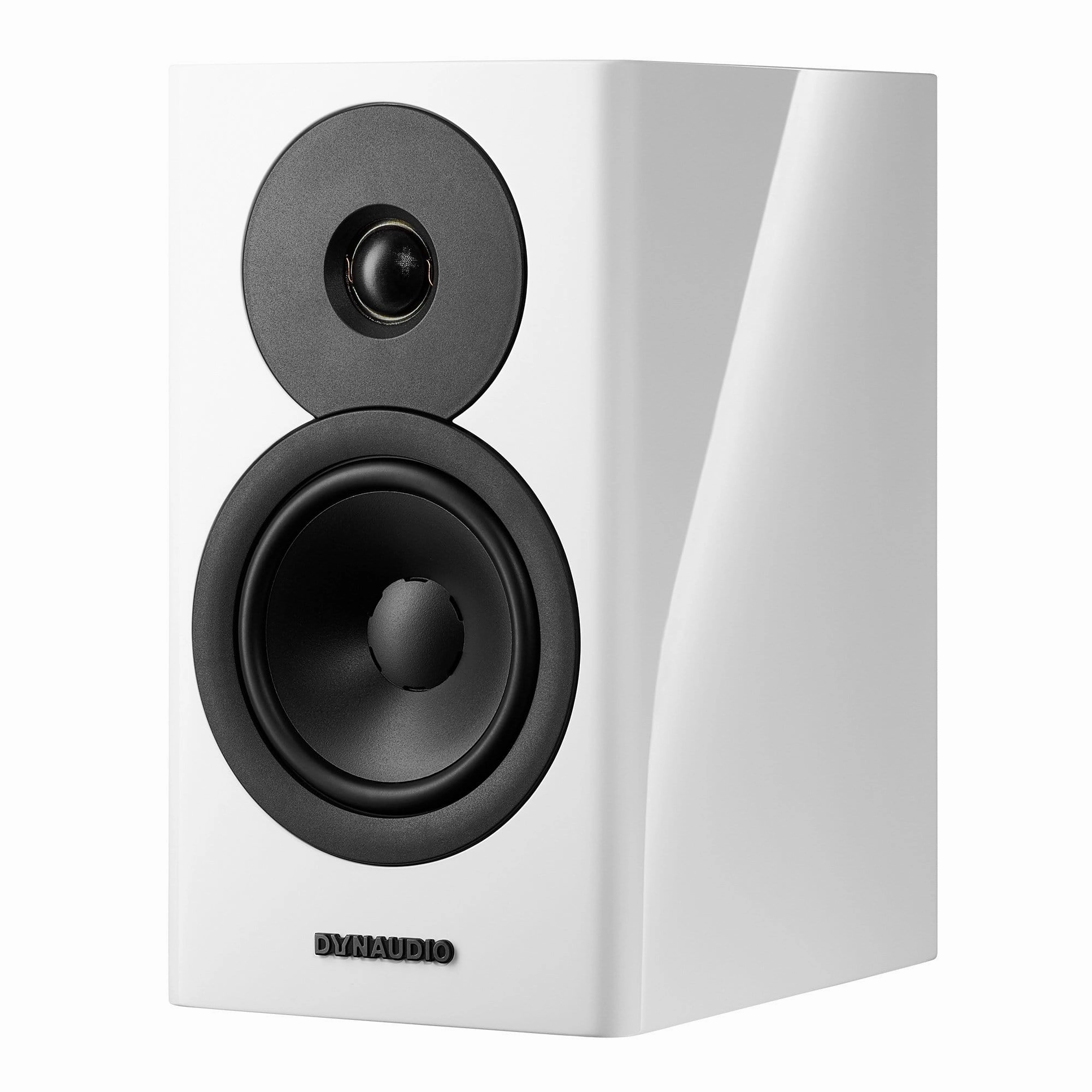

Evoke 10 is available in four beautiful finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood. The shiny versions really are just that: new lacquering techniques have resulted in a sumptuous, almost glass-like finish. The wood versions use a tactile, open natural veneer for either a warm, dark tone or a light apricot look.
You might notice that you cant see any mounting screws. Evoke has simple, clean trim rings that emphasise the cabinets finish as well as the moving parts of the drivers. The rings are one-piece moulded, with the surface finish embedded in the moulding process so what we make is what you get.
Brand-new Cerotar tweeter
A 28mm precision-coated soft-dome design derived directly from the award-winning Special Forty and the mighty new Confidence series. The new motor system uses strontium carbonate Ferrite ceramic magnets for improved sensitivity.
The Hexis
An ingenious inner tweeter dome that further smooths out the tweeters frequency response and minimises resonances so all you get are the desirable ones. Youll also find Hexis in the all-new Confidence.
New Esotec woofers
New long-throw designs for improved frequency response and low-frequency dynamics. Theyre all made from MSP a material we developed in-house and have used in our high-quality drivers for decades.
Timeless Danish design
Simple, clean, traditional, modern and luxurious. All at once. Weve made sure Evoke is realistic for, and sympathetic with, real homes and real lives. Its available in four finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood.
