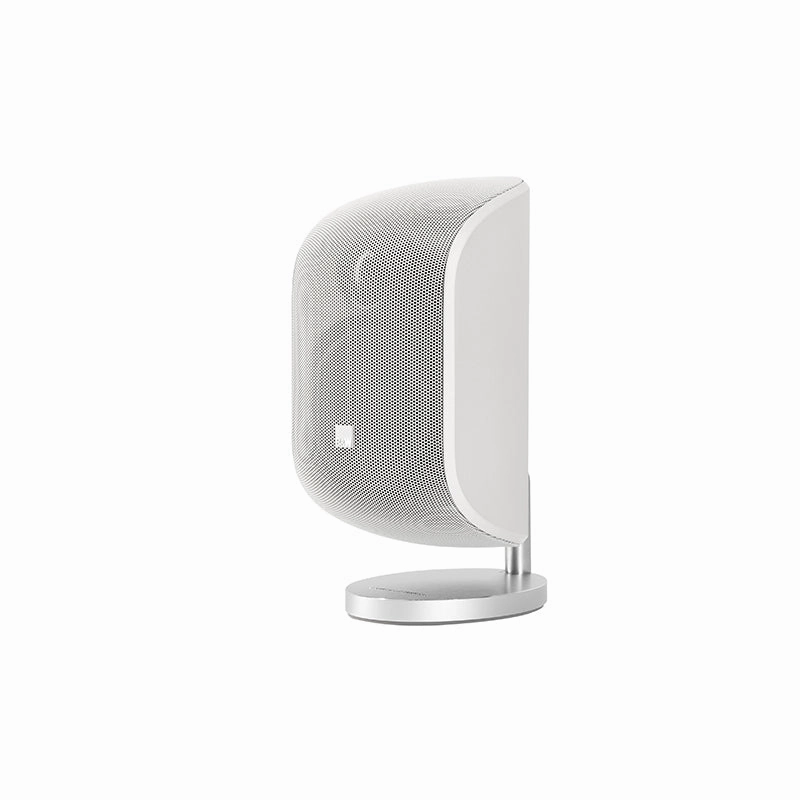

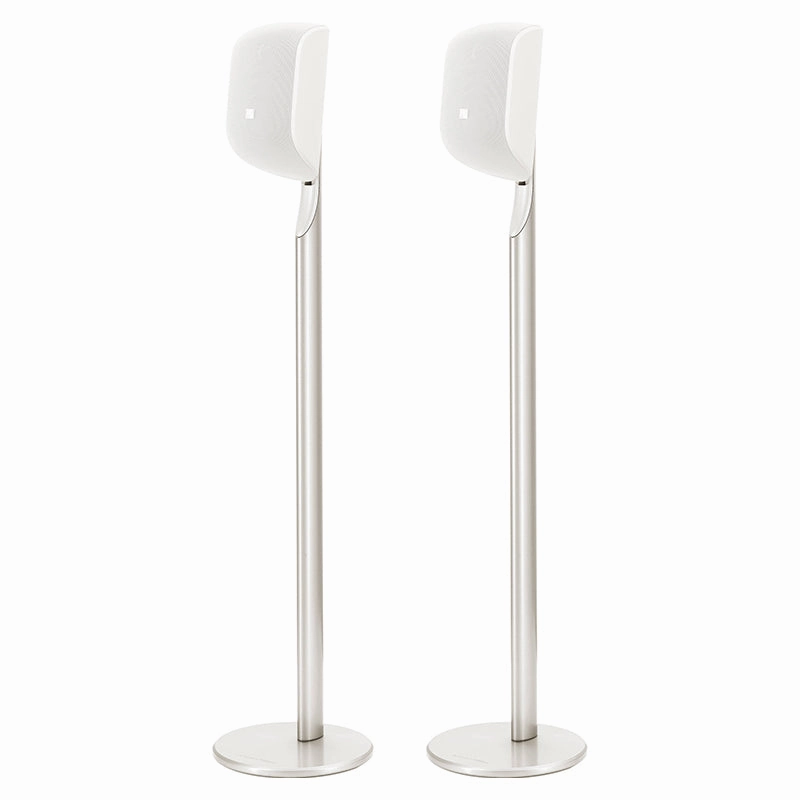

Forming the basis of a completely revised Mini Theatre concept, the new M-1 combines a cleaner aesthetic with dramatically improved performance. Combine it with either the ASW608 or the new PV1D subwoofer to create a home theatre experience with superb integration and impressive power for such a discreet system. Plus, its more extended bass response allows M-1 to be used on its own for two-channel applications. Mount the speaker as shown on a table or shelf. Alternatively, a bracket is included for wall mounting and a floor stand is available as an optional extra.
Technical specifications
Model
M-1
Drive units
1x 25mm (1in) metal dome high-frequency
1x 100mm (4in) woven glass fiber cone bass/midrange
Sensitivity
85dB spl (2.83V, 1m)
Nominal impedance
8 (minimum 4)
Crossover frequency
4kHz
Recommended amplifier power
20W 100W into 8 on unclipped program
Dimensions
Height: 248mm (9.8in)
Width: 114mm (4.5in)
Depth: 162mm (6.4in)
Net weight
2.3kg (5lb) including table stand
Cabinet finishes
Matte Black
Matte White
Grille finishes
Matte Black or Matte White perforated steel to match cabinet
