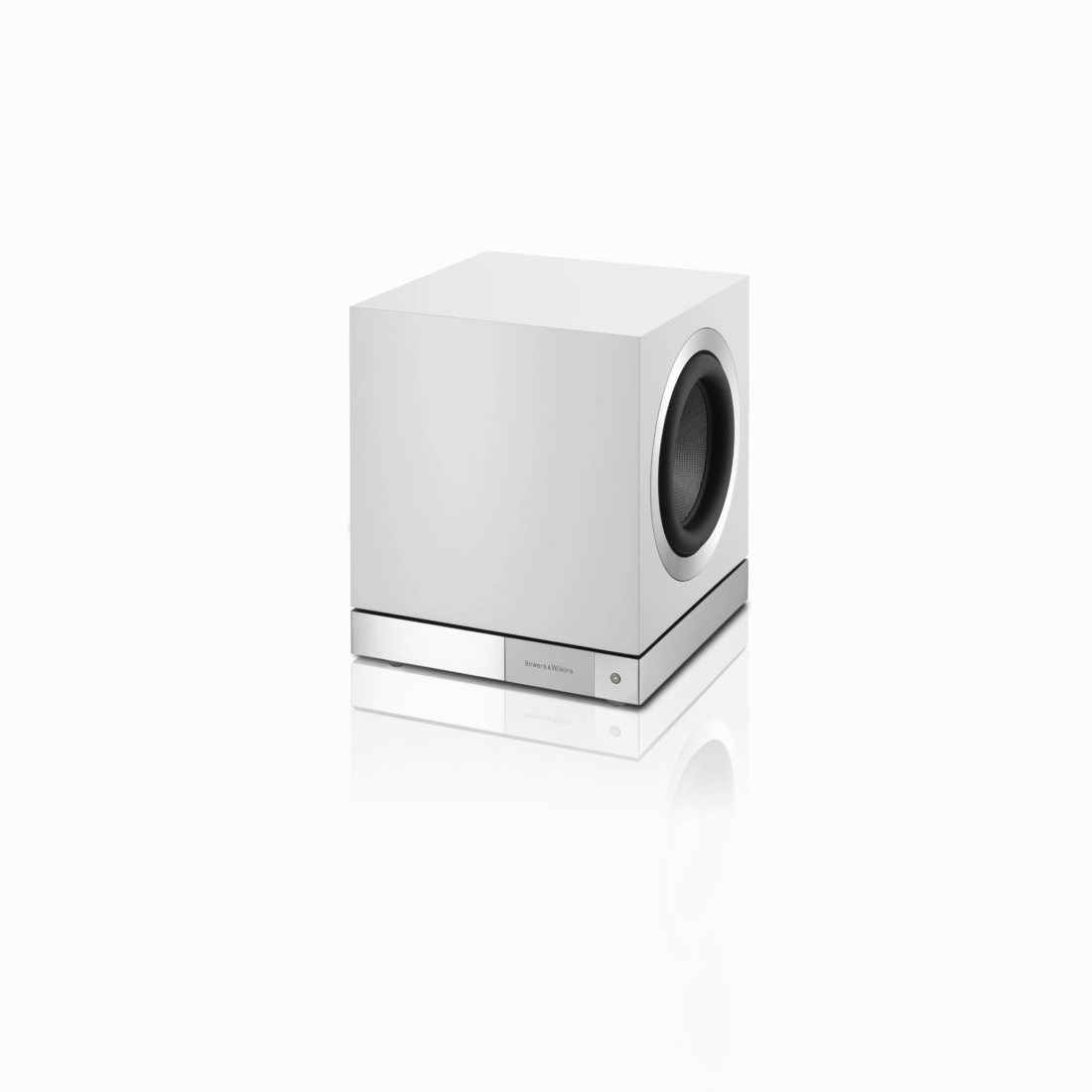

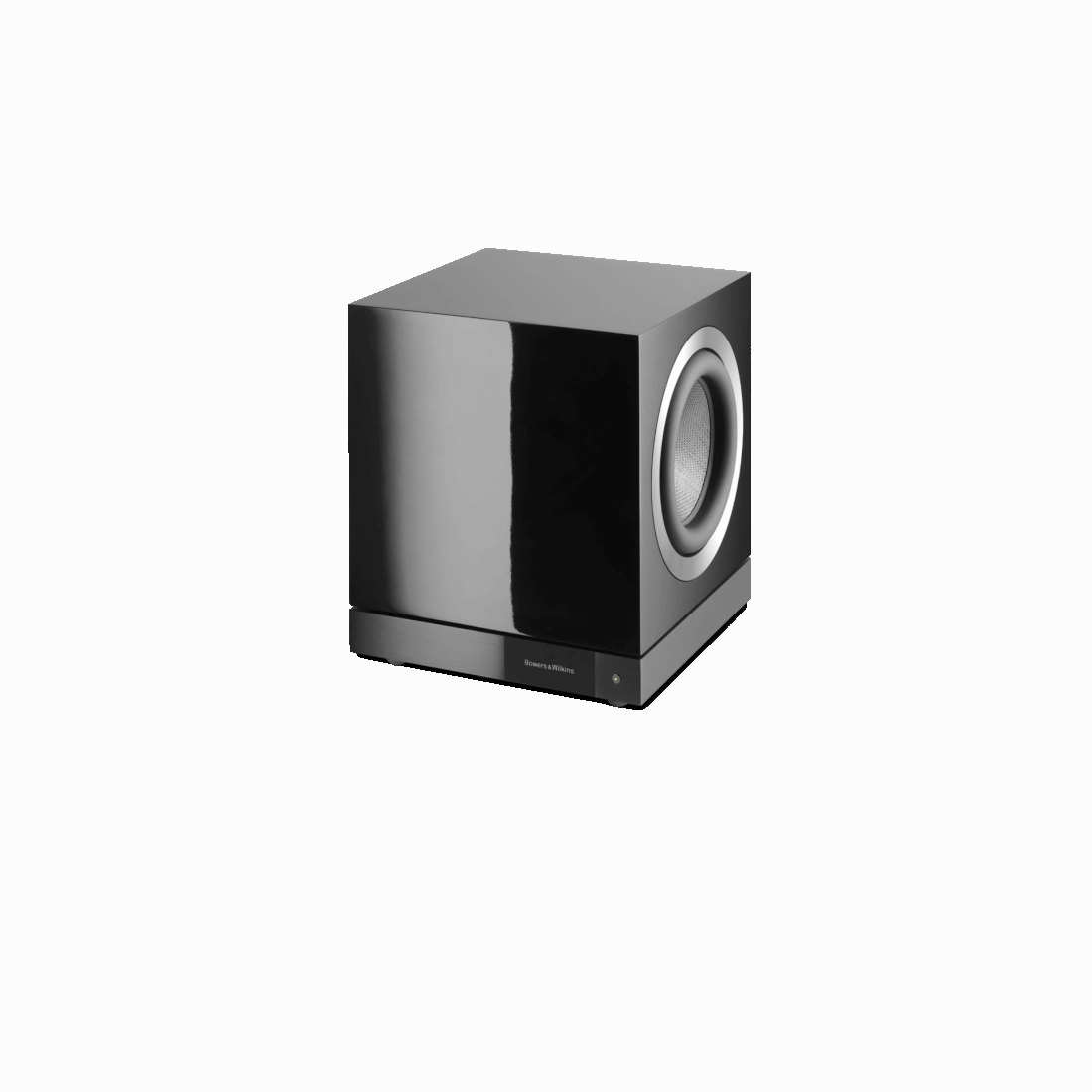

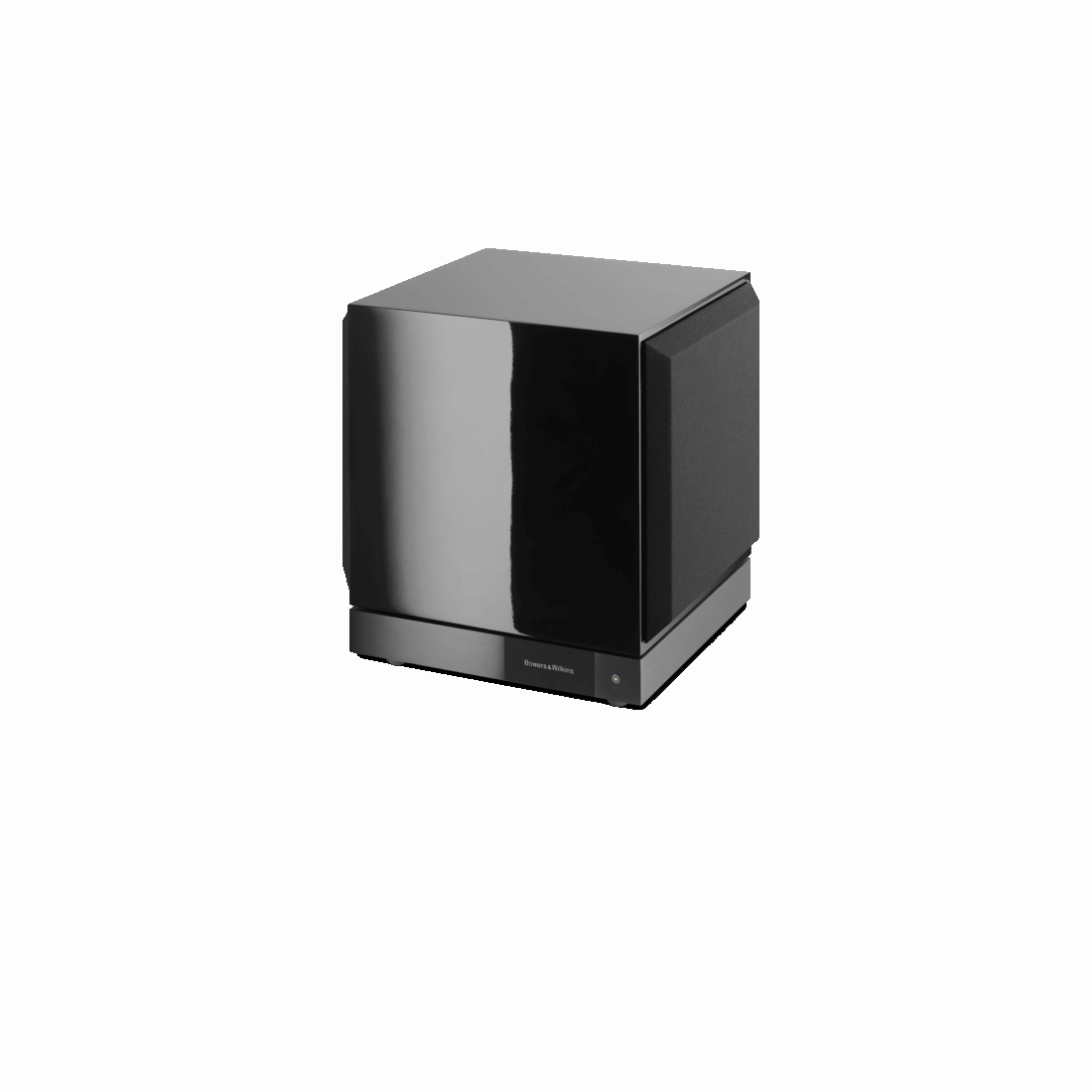

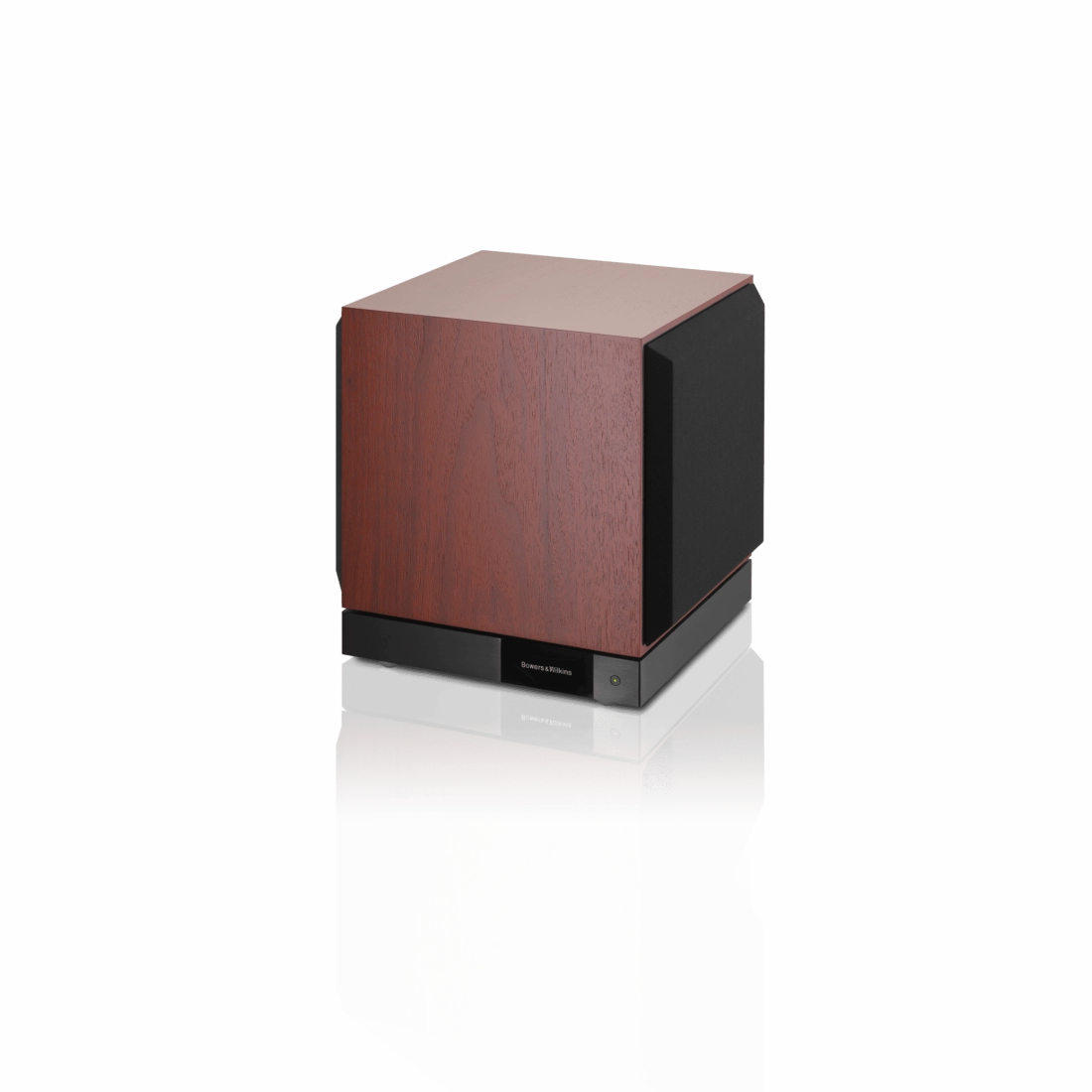

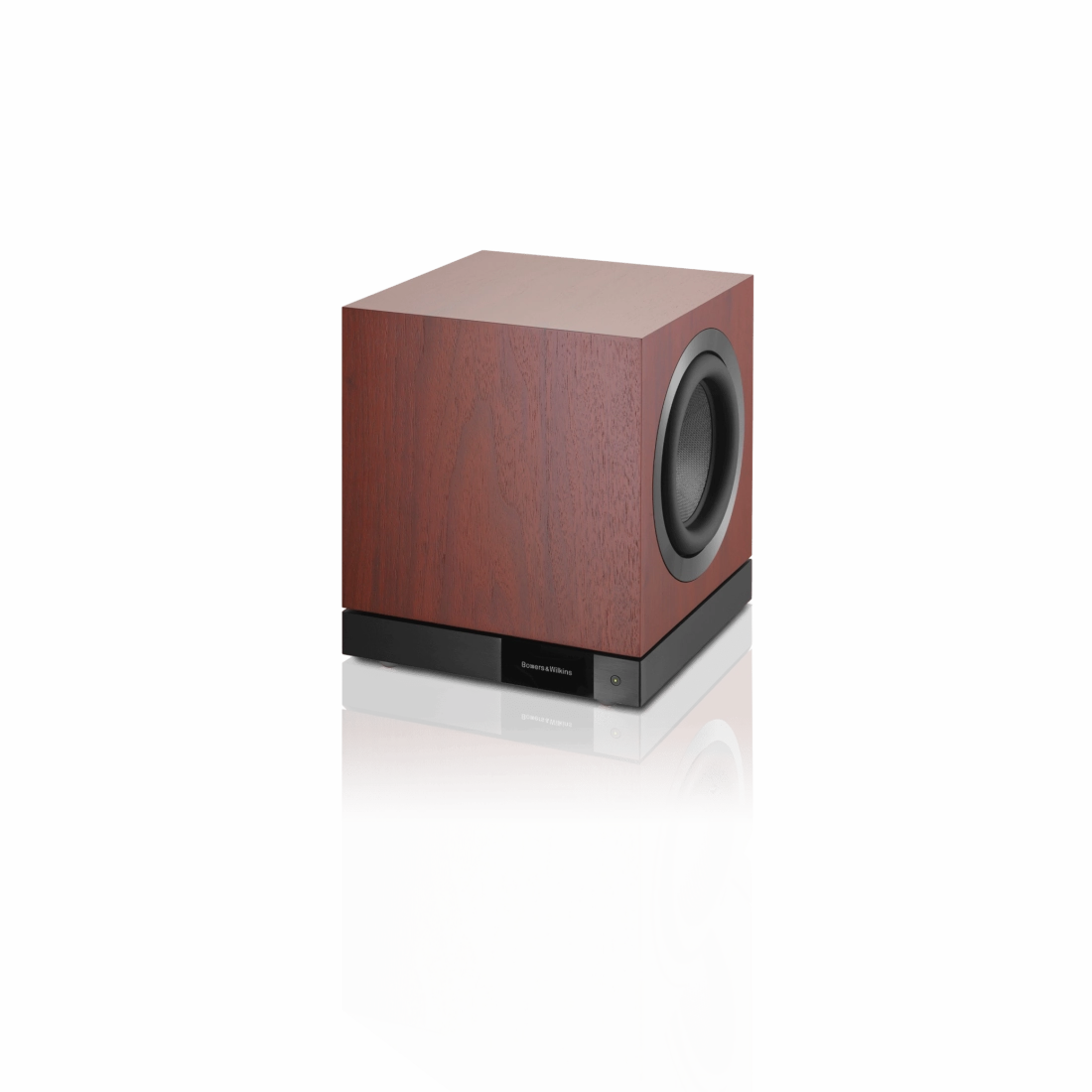

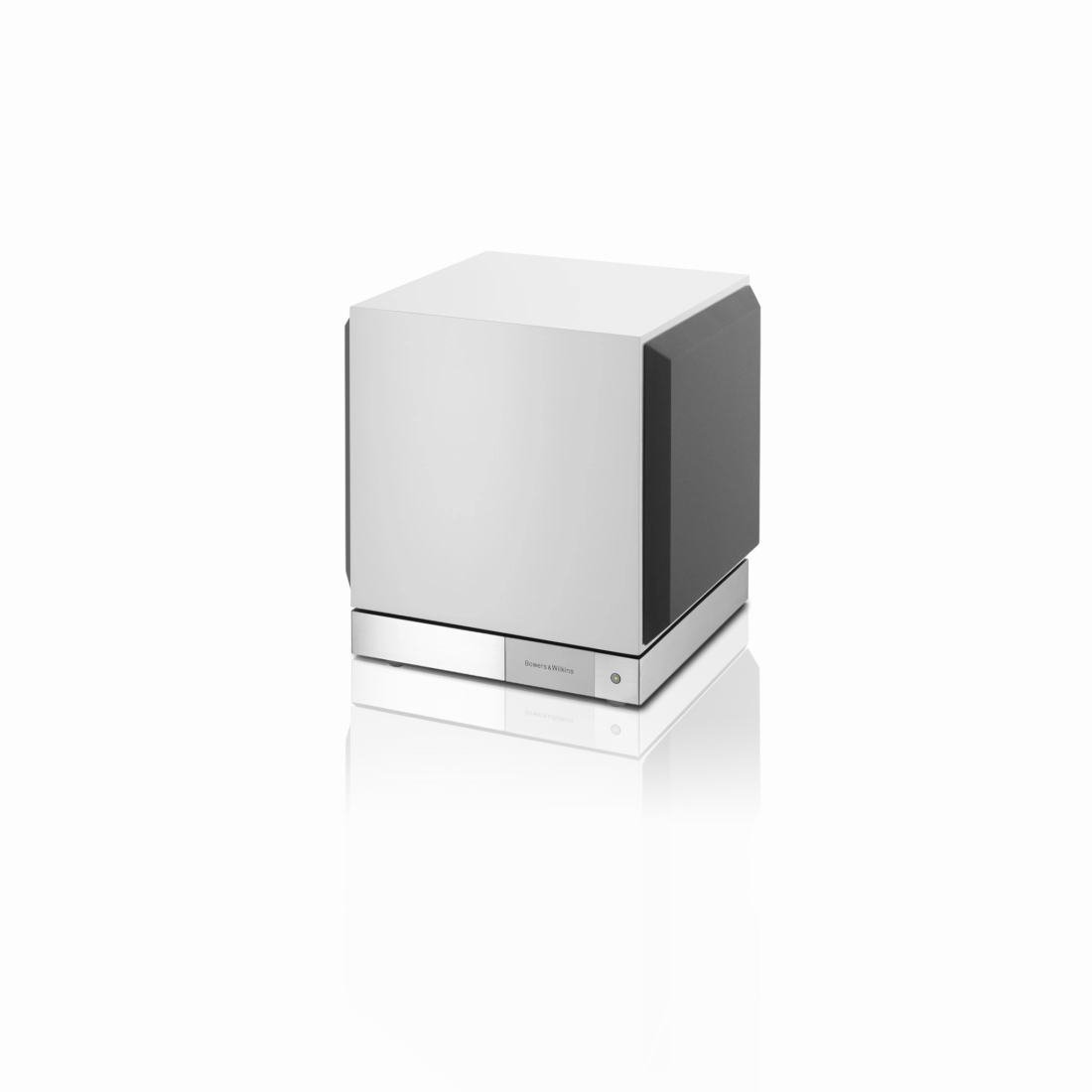

DB3D

Despite its compact dimensions, DB3D delivers astonishingly powerful, controlled bass thanks to its twin 8-in Aerofoil drivers, 1000 watt amplifier and digital signal processing.

Power packed

DB3D's tight, powerful, dramatic bass and compact size make it the perfect match for the 804 D4 and 805 D4 speakers.

The perfect match

DB3Ds ultra-rigid low-resonance enclosure comes in three finishes to match 800 Series Diamond and 700 Series loudspeakers.

More bass, less space

Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximise your sound quality.

Specifications:

Size & weight

Dimensions	Height: 360mm (14.1 in) Width: 320mm (12.6 in) Depth: 300mm (11.8 in)
Net weight	25kg

Technical details

Technical features	1000w Class D Hypex amplifier 2 x 200mm (8 in) Aerofoil cone drive units in a balanced configuration Digital preamplifier with Dynamic EQ App-based set-up and BT-LE control
Description	DB Series Subwoofer
Drive units	2 x 200mm (8 in) Aerofoil cone drive units in a balanced configuration
Frequency range	-6dB at 8.5Hz - 500Hz
Frequency response	10Hz - 350 Hz -3dB (centered on level at 100Hz)
Max power output	1000W
Inputs	2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 - 9-pin D connector
