LAB POINTS

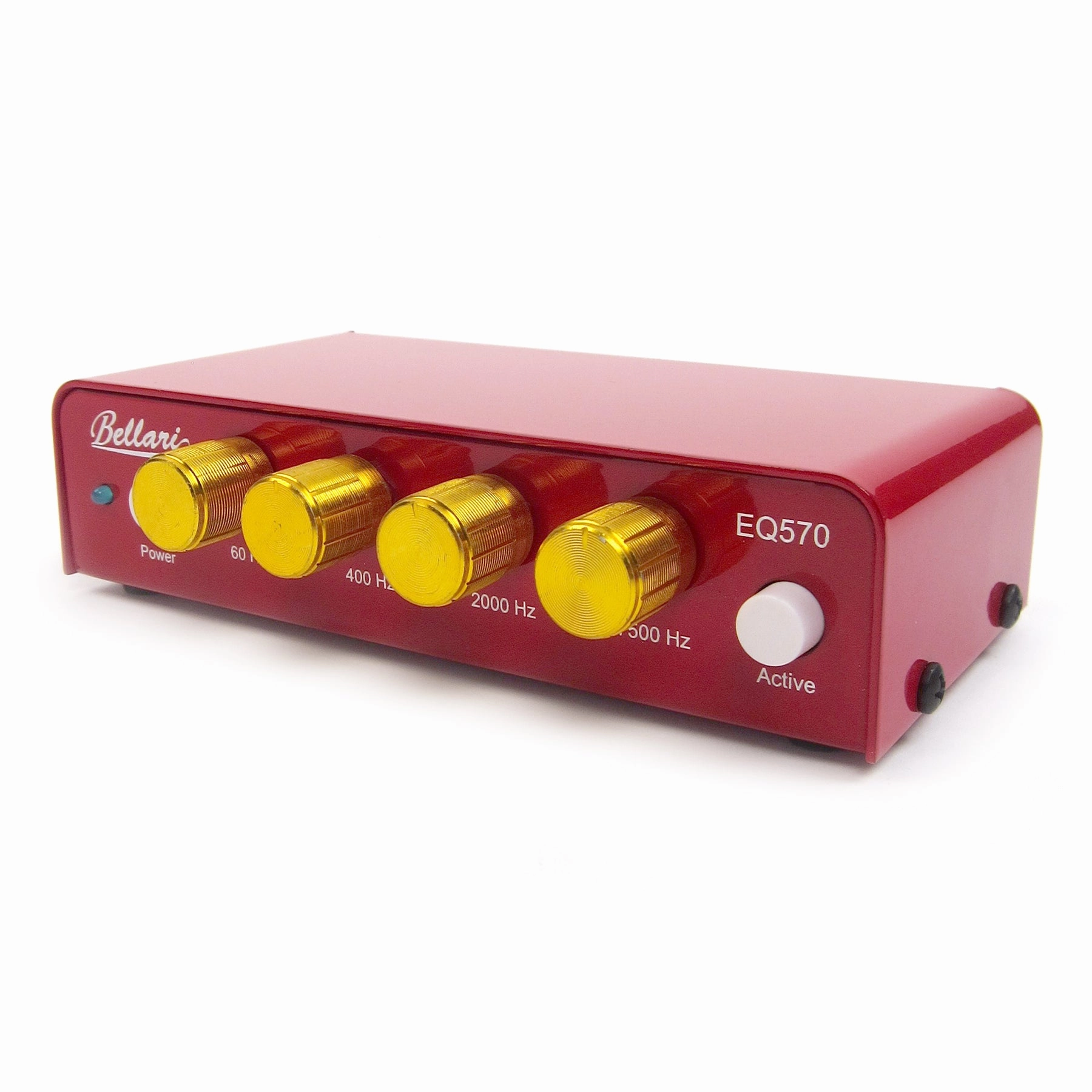

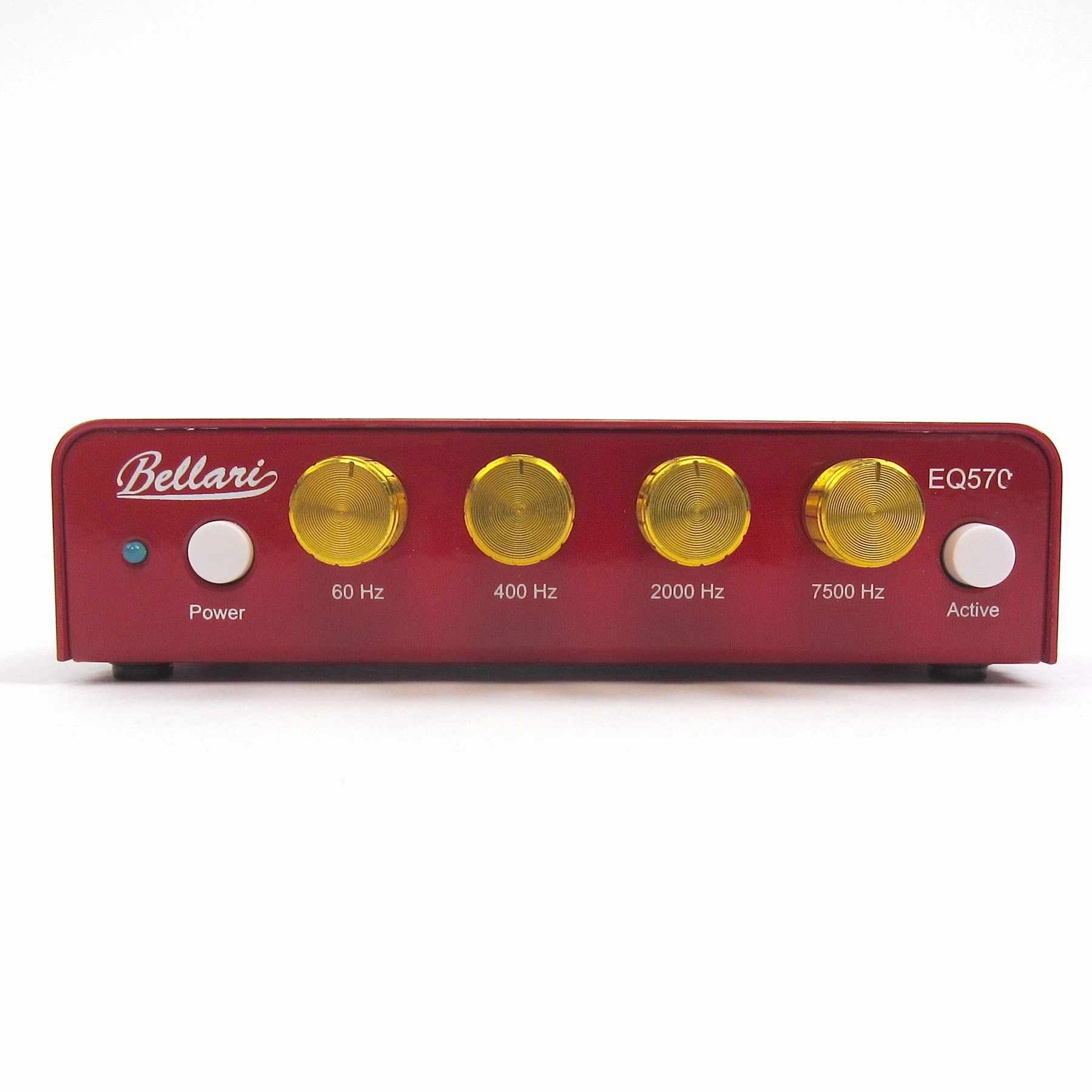

• 4-band equalizer w/rotary frequencycontrols
• useto improve fine tune audio signal from any RCA source - phono, DAC, CD, phone, tablet, or entire hifi system
• when used w/ vinyl,signal must be amplified toline level (via phono preamp or line-level turntable)
• true bypass function - "Active" button allows you tobypass EQ tooutput the original unaltered signal

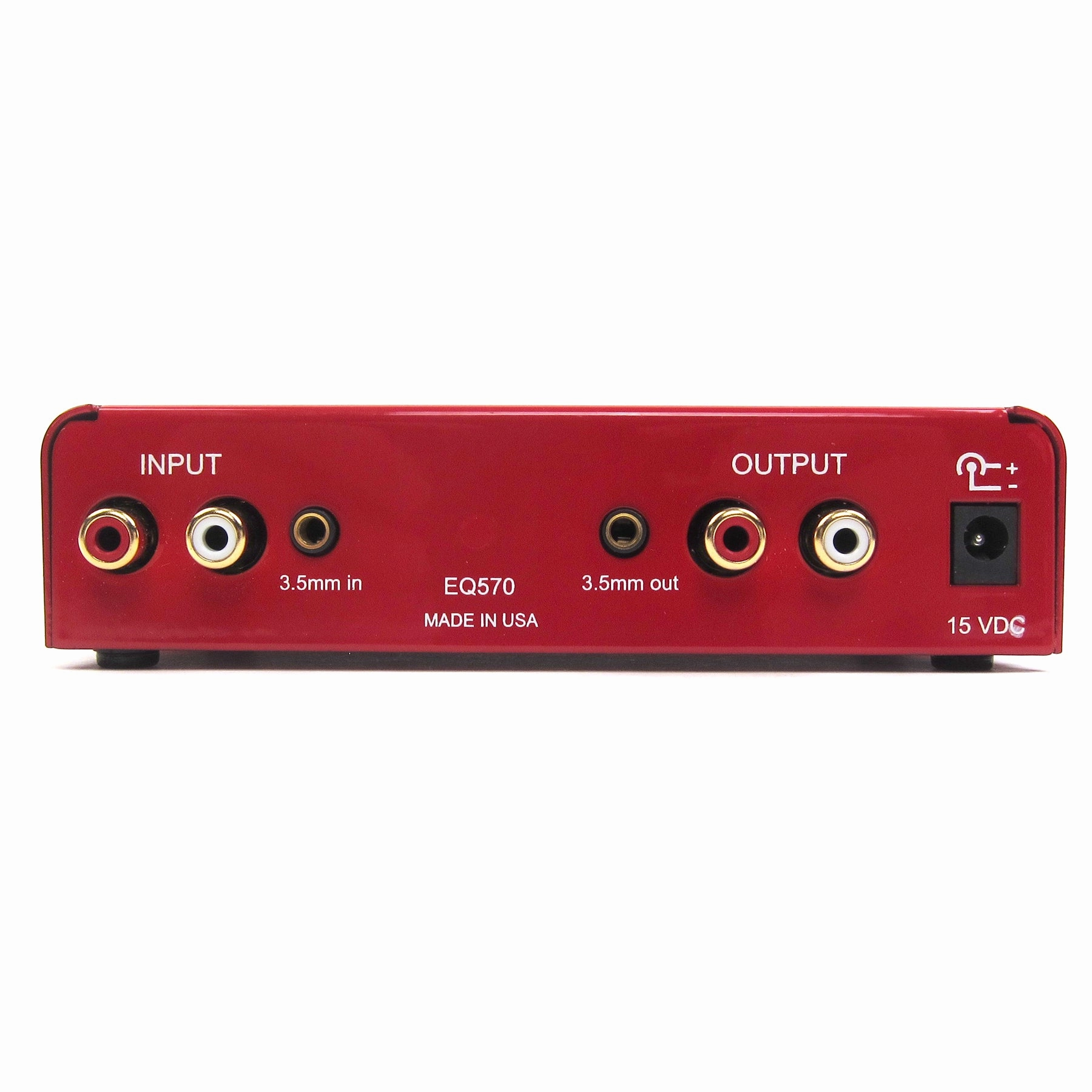

• solid construction w/ all metal casing, gold-plated RCA inputs outputs
• handbuilt in Salt Lake City, Utah

"The 2019 EQ570 is a solid, well built four-band EQ with extremely low phase shift, and gradual curve filters that make it one of the most musical sounding EQs we have ever built." - Bellari

KEY FEATURES

• adjustment: /-12dB for 60Hz and 7500Hz / /-6dB for 400Hz and 2000Hz
• input Impedance:47k
• output impedance:47 ohms
• frequency response: 5Hz to 154kHz
• THD: .003% @ 1KHz
• S/N Ratio: >100dB unweighted
• dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
• weight: .8 lbs / 362g

COMES WITH

• power supply
