LAB POINTS
- standalonephono stageforuse with an existing turntable setup or as an upgrade to a turntable's built-in preamp
- selectable moving magnet/ moving coilinput with fixed gain impedance, compatible with a wide range of MM/ MC cartridges
- high-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
- precision components provide excellent RIAA response
- all-metal construction enclosure provides superior isolation from radio and electronic noise interference
- high quality buildoptimized for low noise and minimum distortion

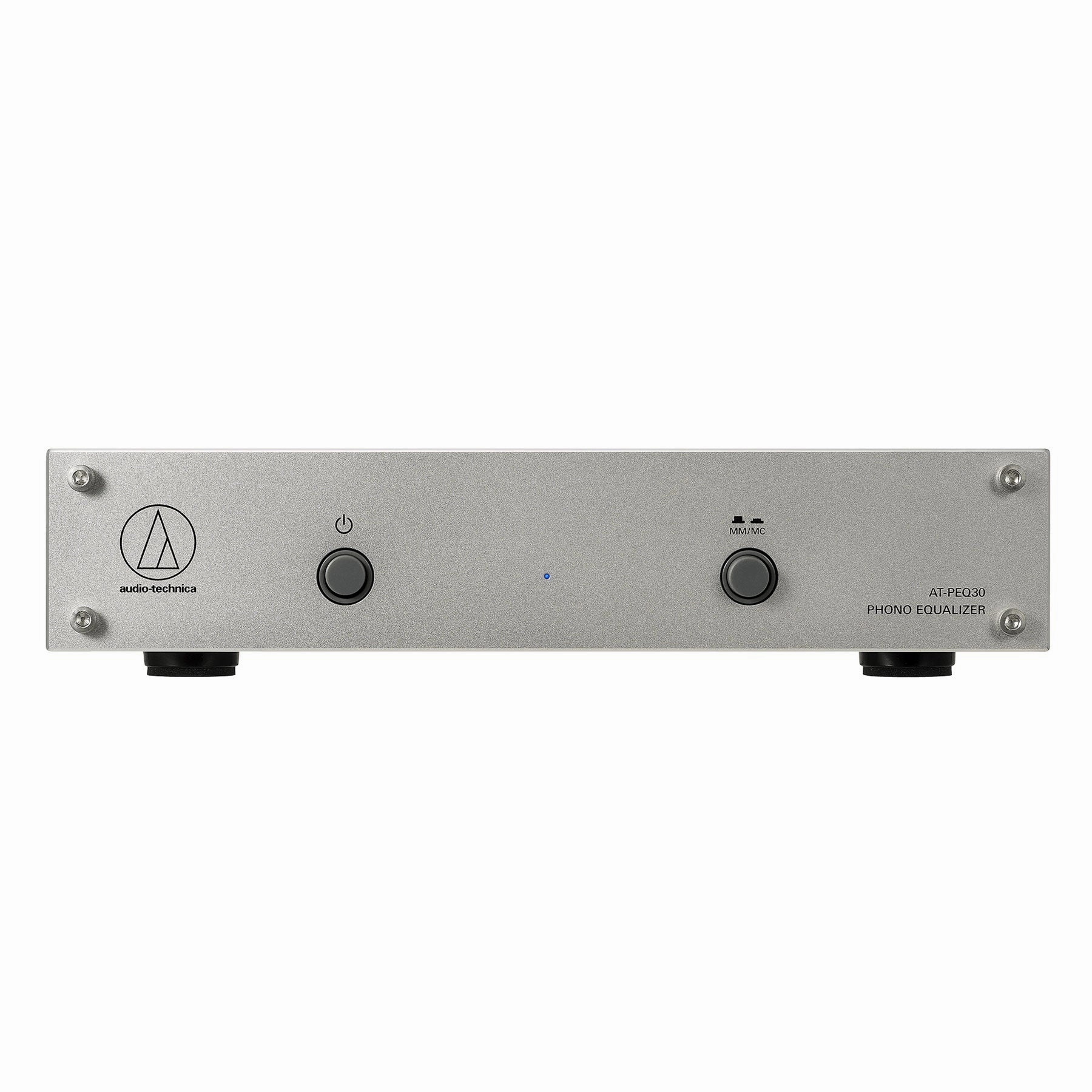

- machined aluminum front panel

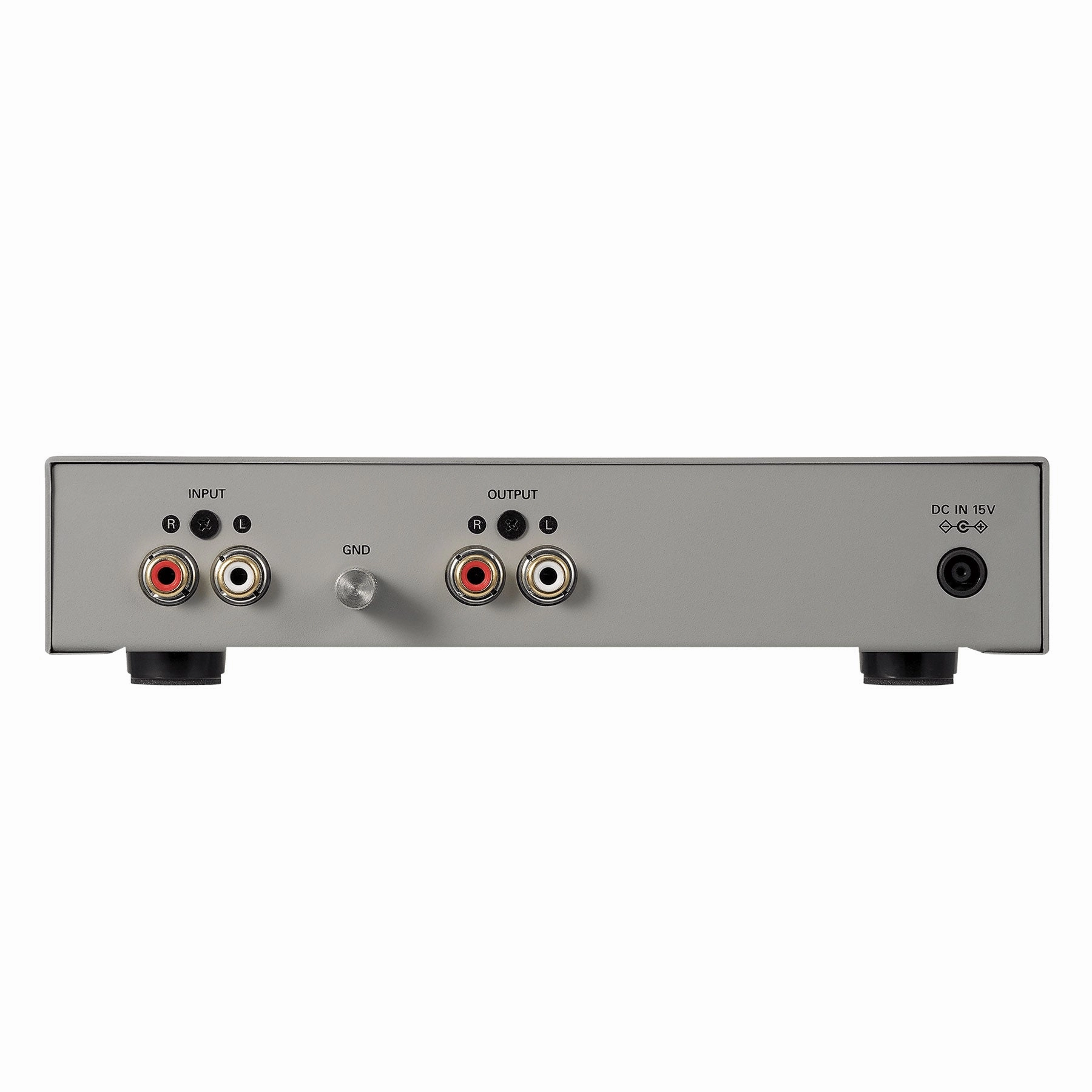

- gold-plated input/output RCA connectors
TECH SPECS
- RCA input / RCA output w/ grounding post
- input impedence:MM type: 47 kiloohms / MC type: 120 ohms
- input sensitivity: MM type: 4.5 mV / MC type: 0.28 mV
- rated output:MM type: 250 mV / MC type: 250 mV
- gain:MM type: 35 dB / MC type: 59 dB
- signal-to-noise ratio:MM type: 100 dB / MC type: 74 dB
- power supply:DC 15 V, 1.2 A
- weight: 1.96 lbs / 0.89 kg
- dimensions: 1.85" x 7.78" x 4.94" /47 x197.5x 125.5mm
COMES WITH
- power supply
